CBX-1 / CBX-2
4.4.2. ACS-CB-PINCH mounting and connection
Caution: Unplug the power cord when connecting the ACS-CB-PINCH
module!
To install and connect the ACS-CB-PINCH module, proceed as follows:
1. Connect the short cable (interface
c) to the desired interface of the control box
(M1 or M2).
2. Connect the cable of the drive to the interface
e of the module.
3. Mount the module with 2 screws in the holes on the bottom side of the desk top.
4. Connect the squeeze line to the interfaced of the module (assuming the squeeze
line is already mounted to the bottom side of the desk top).
5. Connect the power cord to the outlet. Now the squeeze line is operational.

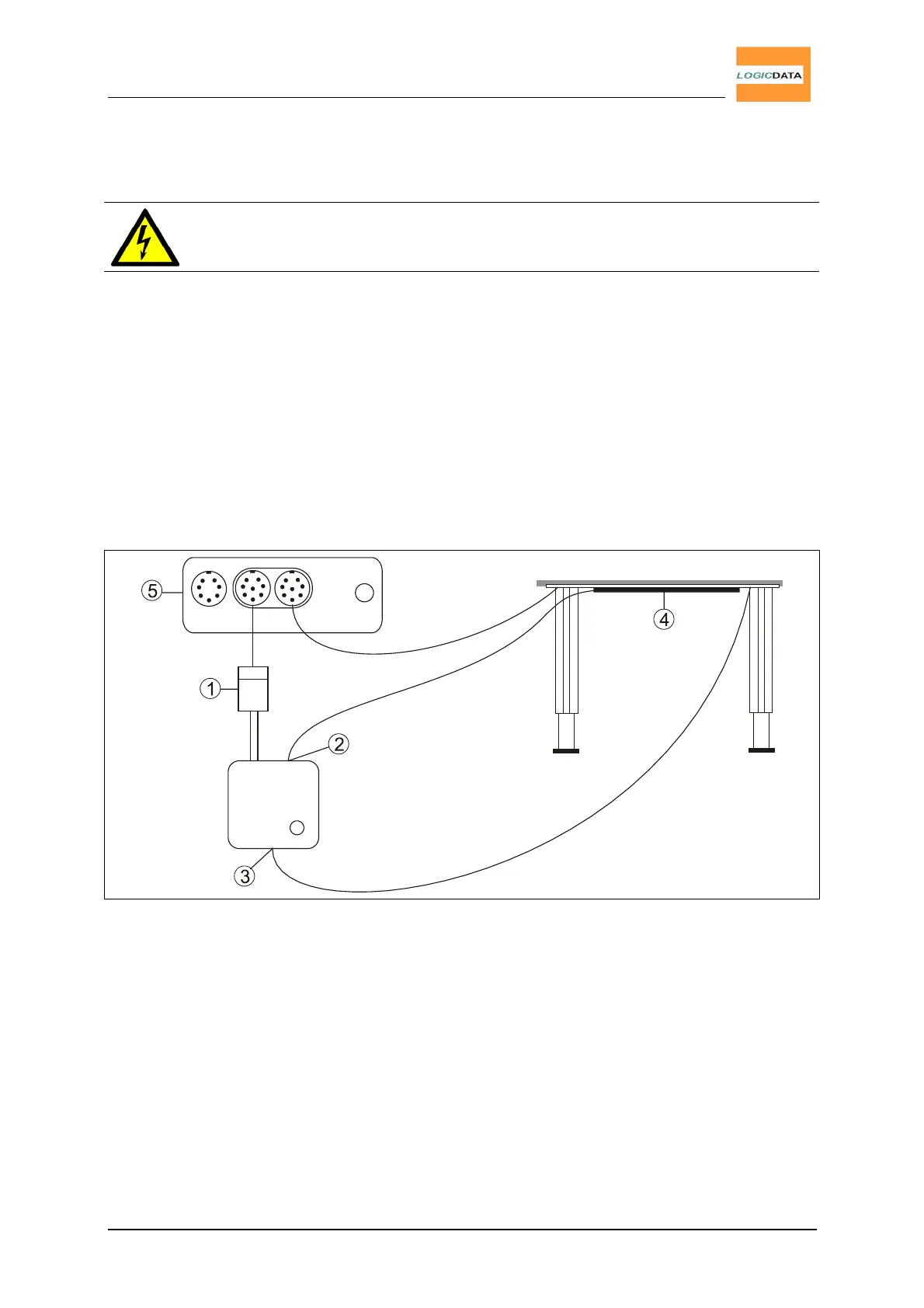

Abb. 5 – Connecting the pinch protection module
c
Interface to connect the CBX control box to the ACS-CB-PINCH module
d
Interface to connect the squeeze line to the ACS-CB-PINCH module
e
Interface to drive 1 or 2 (M1 oder M2)
f
Squeeze line mounted to the height adjustable desk
g
CBX control box
Page 21/29
