5.6 APPROVED CONFERENCE APPLICATIONS
This section describes assembly for DYNAMIC MOTION systems with multiple Power Hubs (Conference
Applications). This conguration can adjust heavy or oversized tables, without aecting performance. The
system consists of groups of Actuators. Each Power Hub powers one group of Actuators. Groups are connect-
ed by Sync Cables. The Table Top and Height-Adjustable Columns are supplied by the Reseller.
5.6.1 CONFERENCE APPLICATION 1
This system creates: Conference Application with one 3-leg table and 2 Power Hubs (DMP240)
3 Height-Adjustable Columns with DYNAMIC MOTION Actuators
1 DMLIN Actuator Cable per Actuator
min. 1 User Interfaces
2 DMP240
2 Power Cables
1 Sync Cable
Connecting the System
1. Plug two Actuators into a Power Hub
2. Plug one Actuator into the other Power Hub
3. Plug the User Interface(s) into the chosen Power Hub
4. Connect the Power Hubs using the Sync Cables
5. Plug both Power Hubs into the Mains

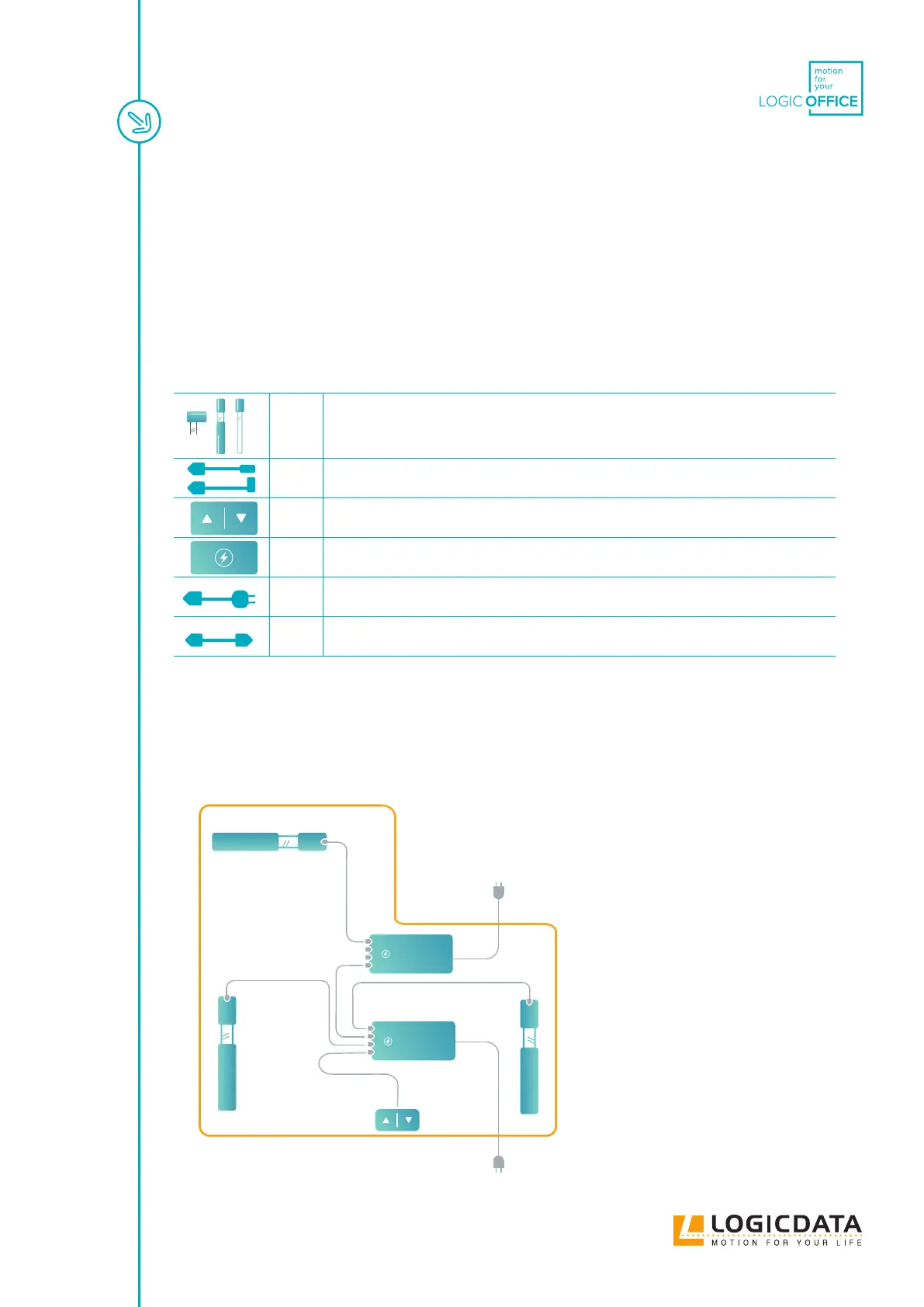

Fig. 6: Conference Application 1
