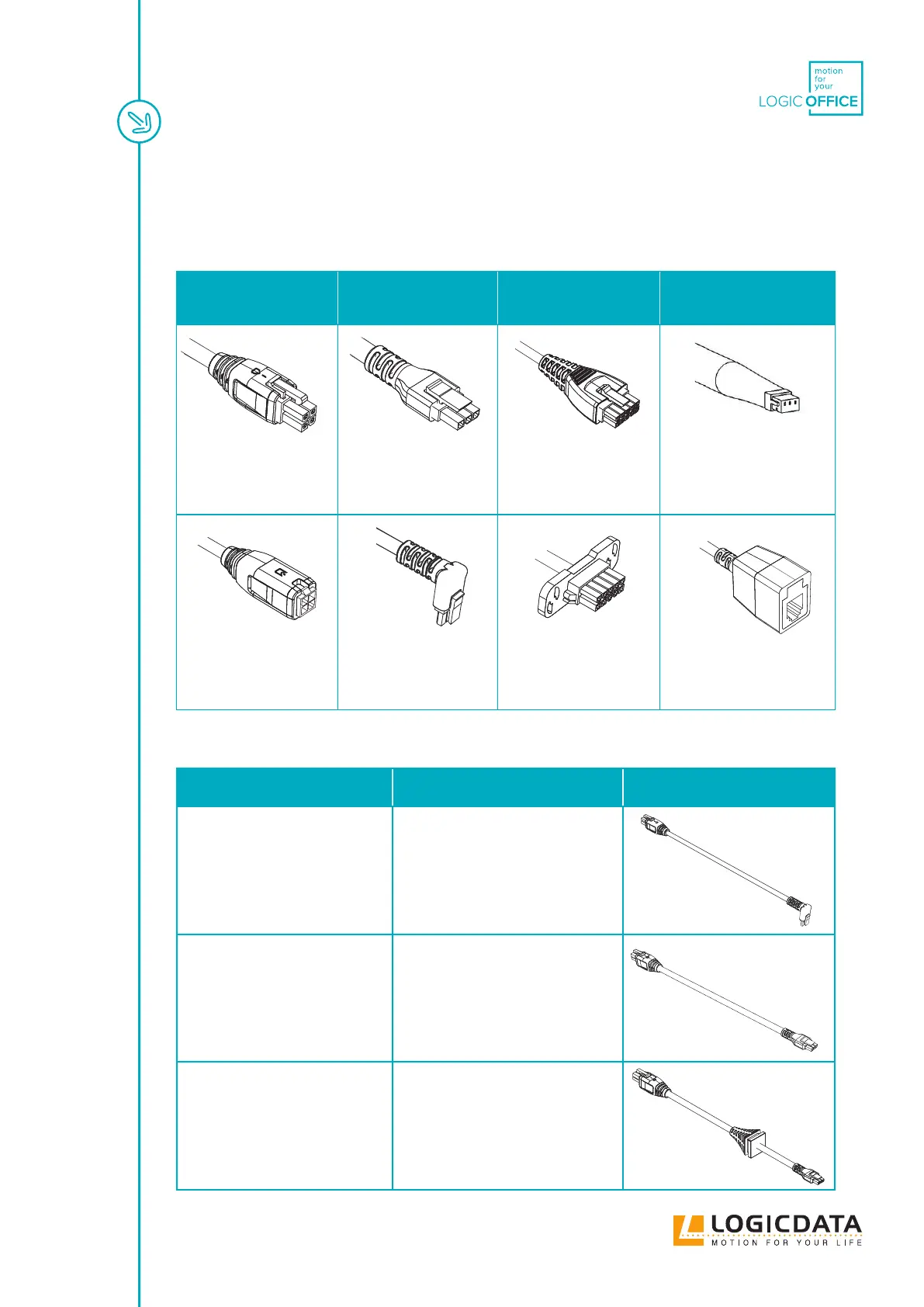

4.4 CABLES
4.4.1 CONNECTOR TYPES
DYNAMIC MOTION
standard
DYNAMIC MOTION
motor
DYNAMIC MOTION
accessory
EXTERNAL SENSOR
adapter
Connector Type: 4-Pin
Connects to: Power
Connector Type: 3-Pin,
Straight
Connects to: Actuators
Connector Type: 10-Pin
Connects to: LOGIClink
Connector Type: 3-Pin
Connects to: Actuator
Connector Type: 4-Pin
Connects to: Standard
Connector
Connector Type:
3-Pin, 90° Cranked
Connects to: Actu
ators
Connector Type: 10-Pin
Connects to: LOGICcell
Connector Type: 4-Pin (RJ)
Connects to: LOG-PRT-DMS
4.4.2 CABLE TYPES
Name and Order Code Key Features Image
Actuator Cable, 90° Cranked
DMLIN-ACR-1000
• Length: 1000 mm
• Connector A: 1 x 4-pin
• Connector B: 1 x 3-pin, 90°
Cranked
• Application: Power Hub to
Actuator
Actuator Cable
DMLIN-AST-1000
• Length: 1000 mm
• Connector A: 1 x 3-pin
• Connector B: 1 x 4-pin
• Application: Power Hub to
Actuator
Actuator Cable, Strain Relief
DMLIN-AST-SR-1000
• Length: 1000 mm
• Connector A: 1 x 3-pin
• Connector B: 1 x 4-pin
• Application: Power Hub to
Actuator
