logitrans LOGIFLEX SELF1003 - Hydraulic Oil Change

20
B
A
SELF1003/920-1600 & SELFS1003/890-1570 approx. 3 liters
SELF1003/1910-2450 & SELFS1003/1880-2420 approx. 3,5 liters
SELF1003/2850 & SELFS1003/2830 approx. 4 liters
SELF1003/3300 & SELFS1003/3270 approx. 4 liters
6.2 Oil change
Draining the oil:
1. Bring the unloaded forks down to the lowest position.
2. Most of the oil can be drained by loosening the hydraulic hose union in the
bottom of the cylinder. Activate the hydraulic pump by pressure on the switch.
The oil will run out.
3. Take o󰀨 the side plates.

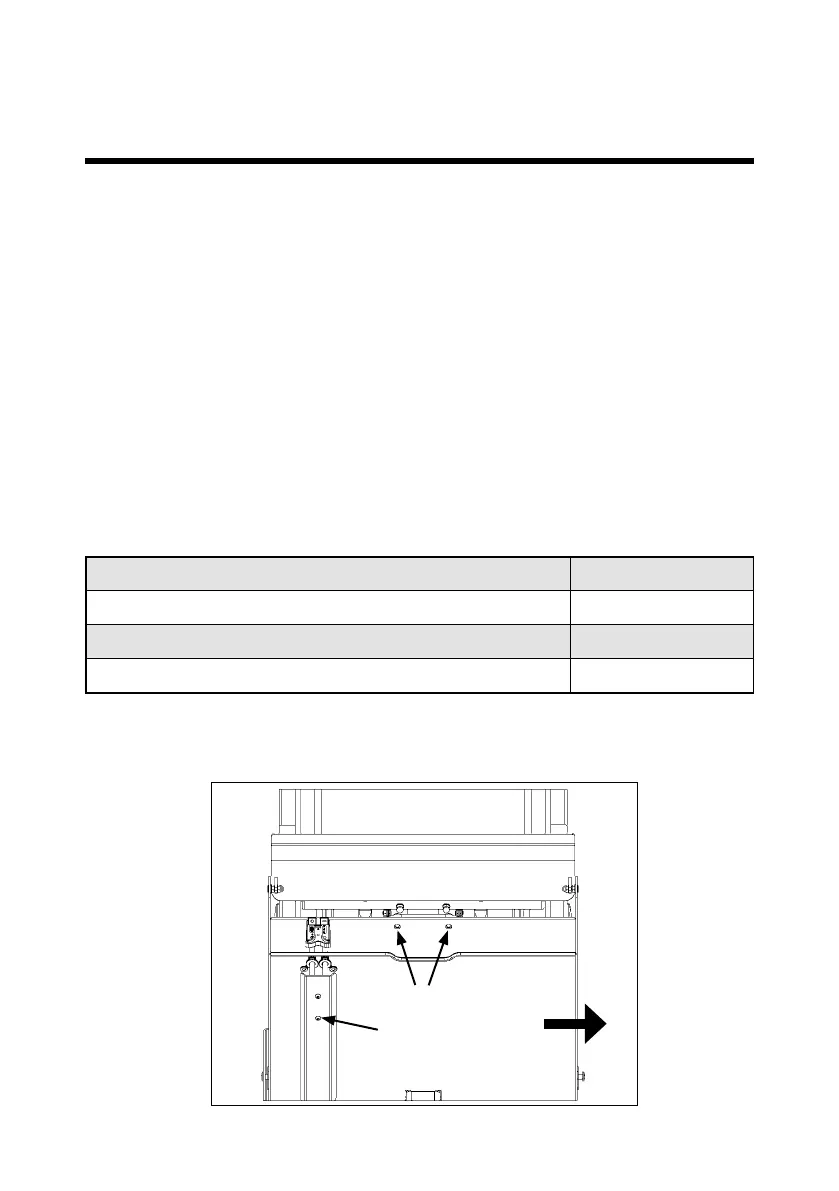

4. Take o󰀨 the cables of the battery. Remove from the battery box: cables, two
mounting bolts (A) and cable holder (B) and push the battery box to the right.
5. The remaining oil is emptied from the oil tank by sucking up the oil.
6. Place the hydraulic hose again.
7. Oil is lled in by removing the oil ller cap from the tank.
8. Oil quantity:
9. Place the oil ller cap again and bleed the system (see 6.3)
6.0 Long live the Logiex
