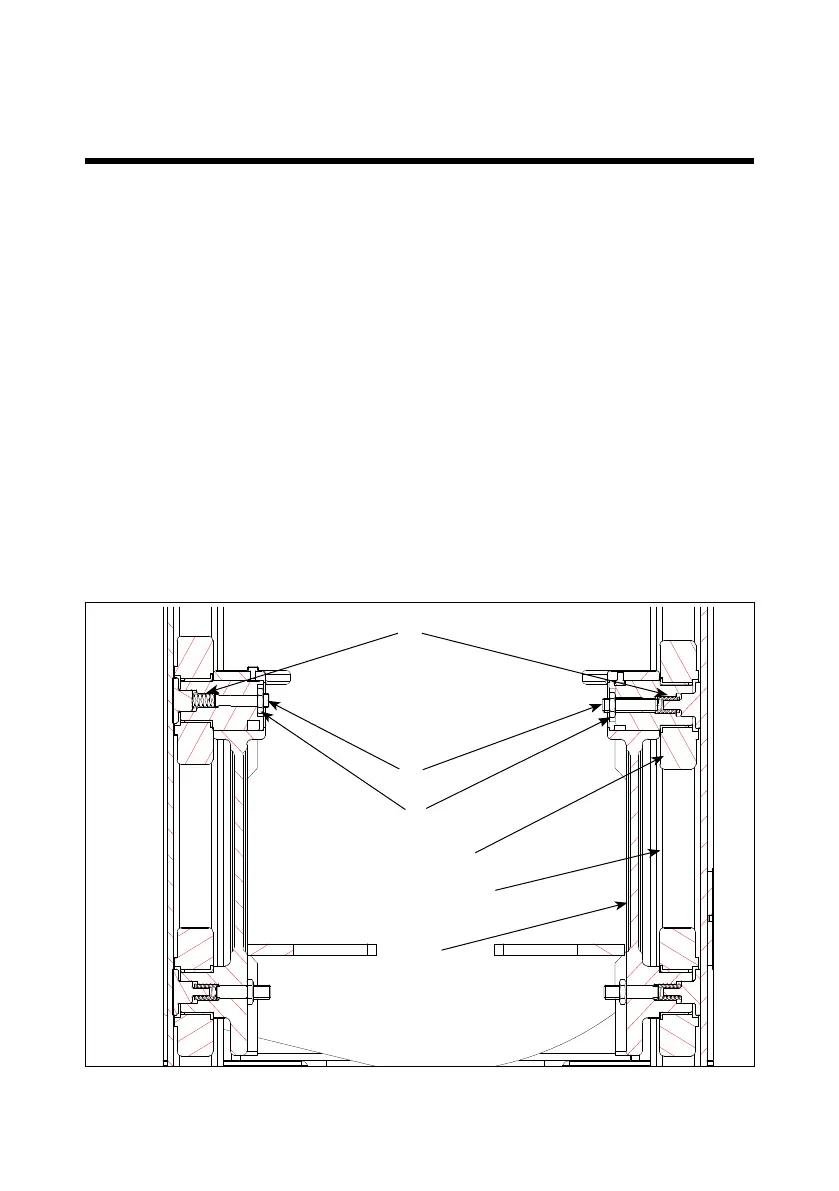

C-prole (mast)
Mast roll
Carriage
6.6 Adjustment of side play
1. Screw (A) is loosened counter-clockwise, until resistance disappears.
2. Turn the screw clockwise, until resistance appears. The following 1.5 to 2.5
turns of the screw will be a tightening of the spring (C).
3. When a larger resistance appears, make 0.25 turn counterclockwise, and the
counter nut (B) will be tightened.
4. Lift the carriage to the top position, and when lowering it has to slide to the
bottom. If this is not the case, loosen screw A, make c. 0.5 turn counter-
clockwise and repeat point 4.
