6.5 Adjustment of lifting chain
The chains shall be adjusted so that:
• They lift equally.
• They are equally tight.
• The lifting movement has to stop in the
cylinder, before the mast rolls touch
the top stop.
After adjusting, please check:
a. Fork bracket: the forks have to be placed
above the wheels
b. Adjustable carriage: the forks are to be kept
clear of the oor.

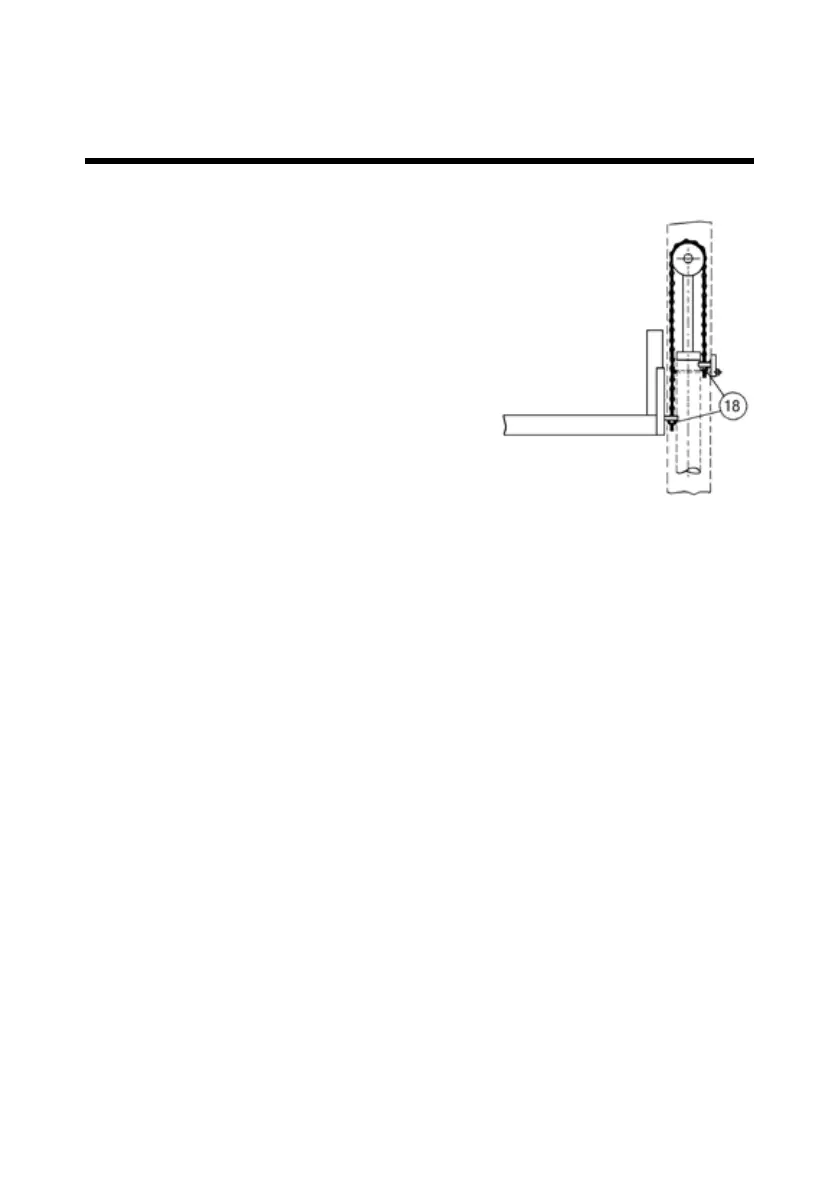

The nuts (pos. 18) are to be adjusted
(nut M12, key width 19 mm).
