LogTag UTRIX-16 - Manufacturing Phase 2: Final Assembly and Test; Battery Installation and Case Sealing; Case Closure and Fastening; Product Testing and Verification

LogTag UTRIX Work Instruction Manual Revision 1.07 MP Release Page 6/52

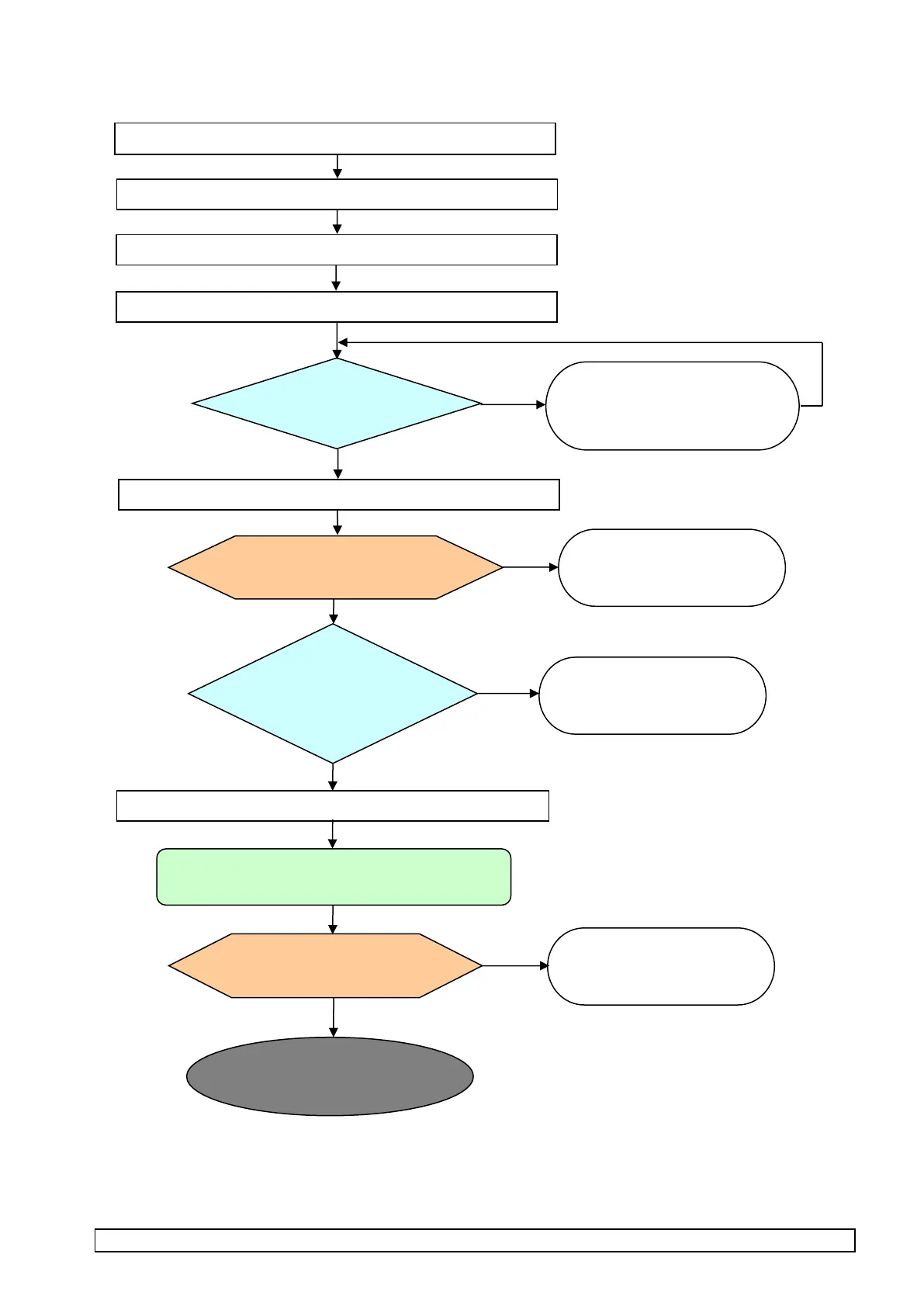

MANUFACTURING PHASE 2: Final assembly & test
COMPUTER TEST
Test & Setup USB HID (2.7)
Place Failed product in
marked container with this
test number for servicing.
FAIL
PASS
INSPECTION
Case thickness (2.5)
FAIL
Press Case halves together (2.4)
Screw in case screws (2.6)
Add sealant to crystal & case (2.2)
Apply protection tape and fit USB cap (2.9)
Temperature Cycle testing (2.10)
Place Failed product in
marked container with this
test number for servicing.
FAIL
PASS
ACTION/INSPECTION
Push Start Button Start (2.8)
PASS
MANUFACTURE PHASE 3
CUSTOMISATION
Place Failed product in
marked container with this
test number for servicing.
FAIL
COMPUTER TEST
Check Final USB HID (2.11)
PASS
Fit Battery and solder into place (2.1)
Press light pipes into LED holes (2.3)
Squeeze case together using
toggle clamp to insure case
thickness to specification.
