GENERAL DESCRIPTION AND TECHNICAL DATA - 2

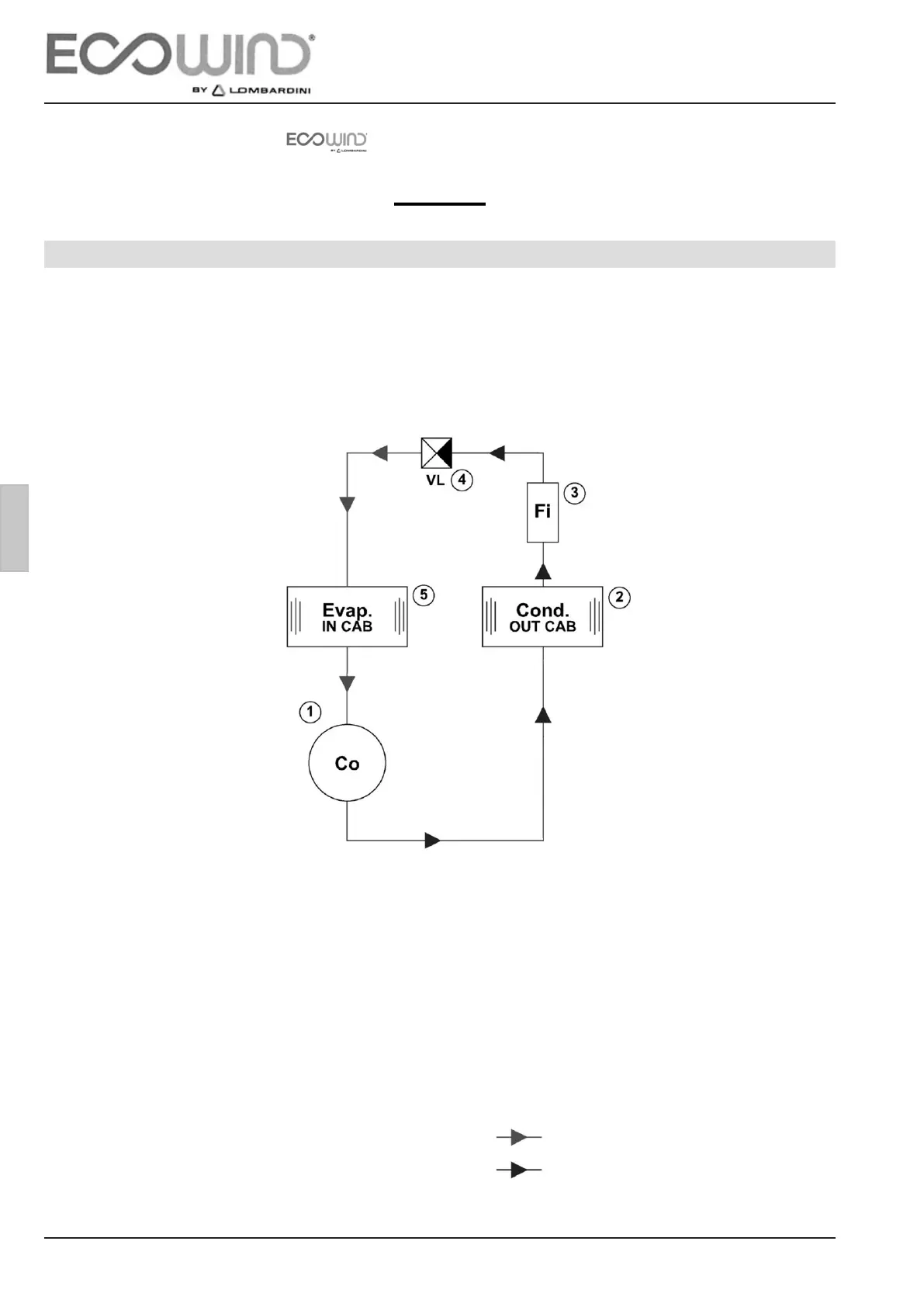

2.3 Summary diagram of the air-conditioning system for model :
350 “C”
CONVENTIONAL COOLING CYCLE
The diagram in Tab 6 shows the ow chart of the conditioning process:
HP) High pressure - Compression (min 10 ÷ max 27 - bars _coolant R 134 a);
LP) Low pressure - Intake (min 1 ÷ max 5 – bars_coolant R 134 a);
N.B.: Optimal values for a correct functioning of the system ; are 1.5÷2 suc 13÷17 disc (bar) - @ ext Temp - Te 30° C
LEGEND:
1 COMPRESSOR AC;
2 AC CONDENSER;
3 DEWATERING FILTER;
4 EXPANSION VALVE;
5 EVAPORATOR AC;
GAS R134a LOW PRESSURE (LP)
GAS R134a HIGH PRESSURE (HP)
