ASSEMBLY AND INSTALLATION - 3

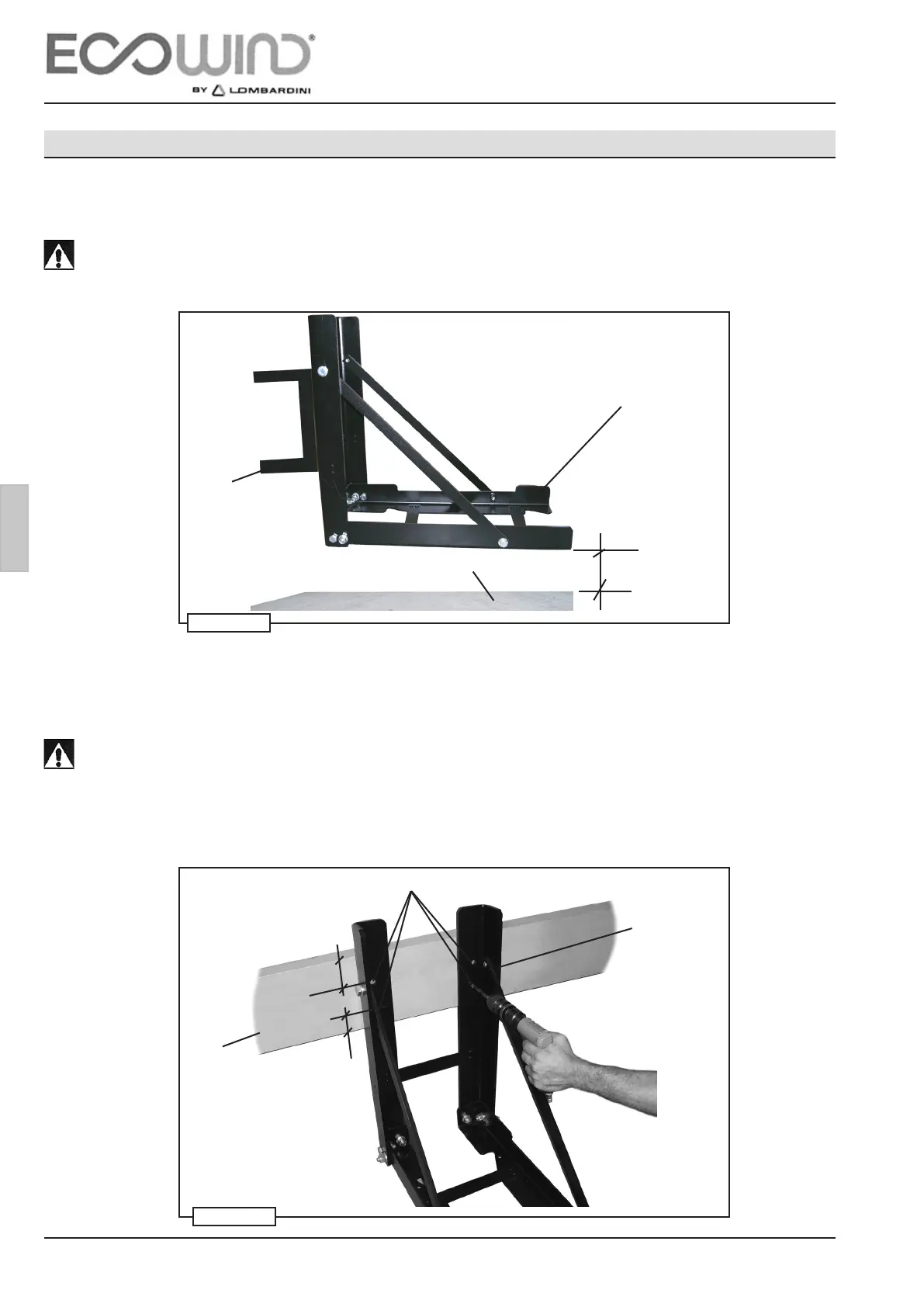

3.4 MOUNTING DIRECTLY TO THE SIDE FRAME
After mounting on bench the power unit frame S , attach the vertical bracket V at the vehicle frame F as reported on g. 6.
WARNING
We advice to install the frame power unit S with a deep H not less at 300 mm for more safety against the conformation
of kind of oor.
After the operation to position the frames S regarding F, to drill four holes of 15 mm diameter as showed in g. 7
WARNING
For a correct installation of frame S, we recommended to drill at measurements as indicate in g. 7.
