Lombardini ECOWIND 350 ECC - Connecting Diesel to the Power Unit

42
THIS MANUAL IS PROPRIETY OF ECOWIND by LOMBARDINI - ALL FORMS OF REPRODUCTION, PARTIAL OR OTHERWISE, IS STRICTLY PROHIBITED
G
B
5
4
1
2
3
*
Fig. 70
Fig. 71
Fig. 72

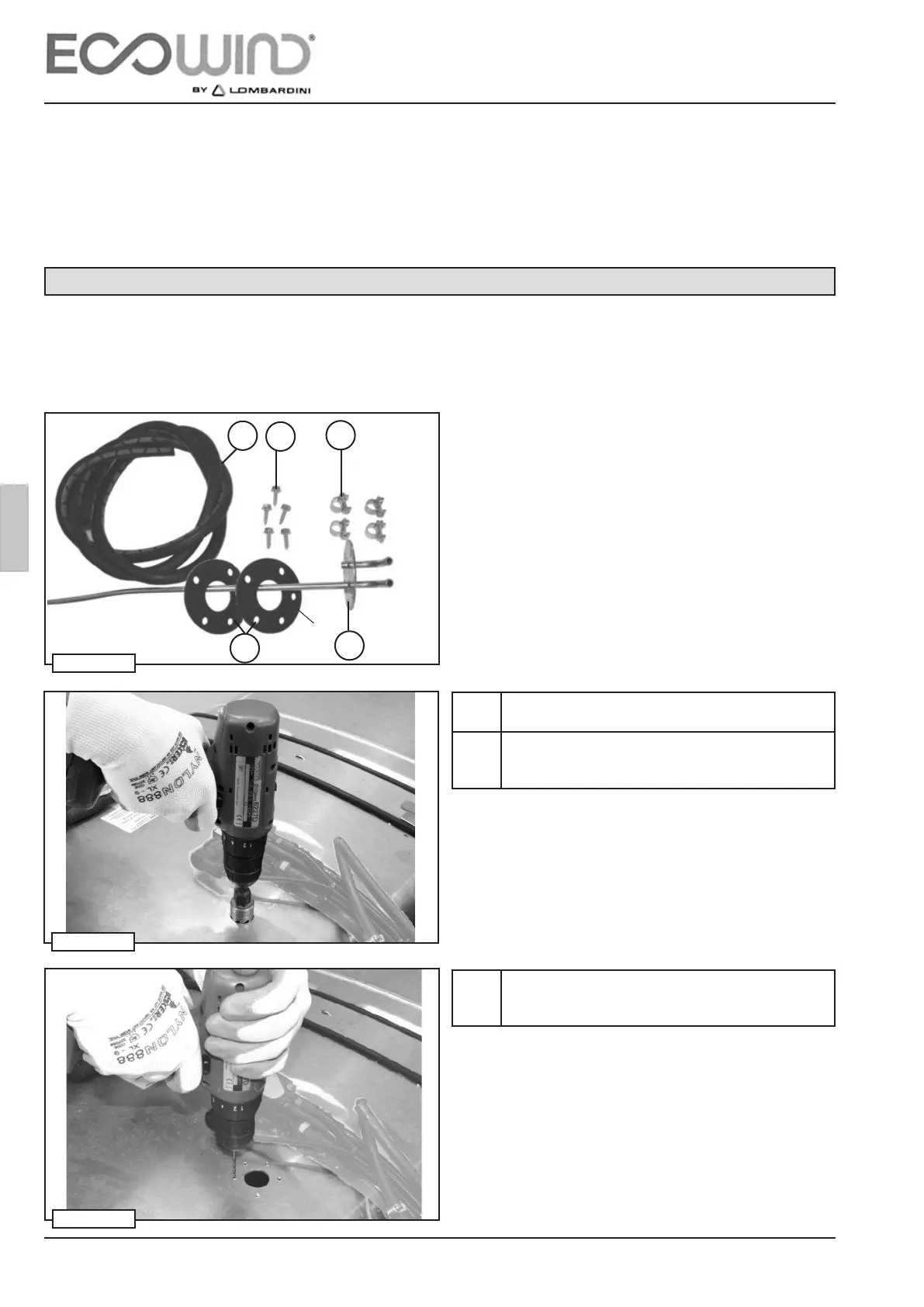

3.8 CONNECTING DIESEL TO THE POWER UNIT
Legend:
1. rubber hose Ø 5 mm ..................................................6 m
2. self-threading screws ...............................................qty 5
3. clamps .....................................................................qty 4
4. suction pipe .............................................................qty 1
5. gasket ......................................................................qty 2
Supplied in Kit
ASSEMBLY AND INSTALLATION - 3
1 Find a at position on the upper part of the vehicle’s
tank.
2 Bore using a hollow mill Ø 34 mm, taking care to
prevent the cut disc and milling chips from falling into
the tank (g. 71).
3 Bore using a Ø 3 mm bit after tracing the xing points
of the suction pipe, using the gasket G as the template
(g. 72)
