31
THIS MANUAL IS PROPRIETY OF ECOWIND by LOMBARDINI - ALL FORMS OF REPRODUCTION, PARTIAL OR OTHERWISE, IS STRICTLY PROHIBITED
G
B

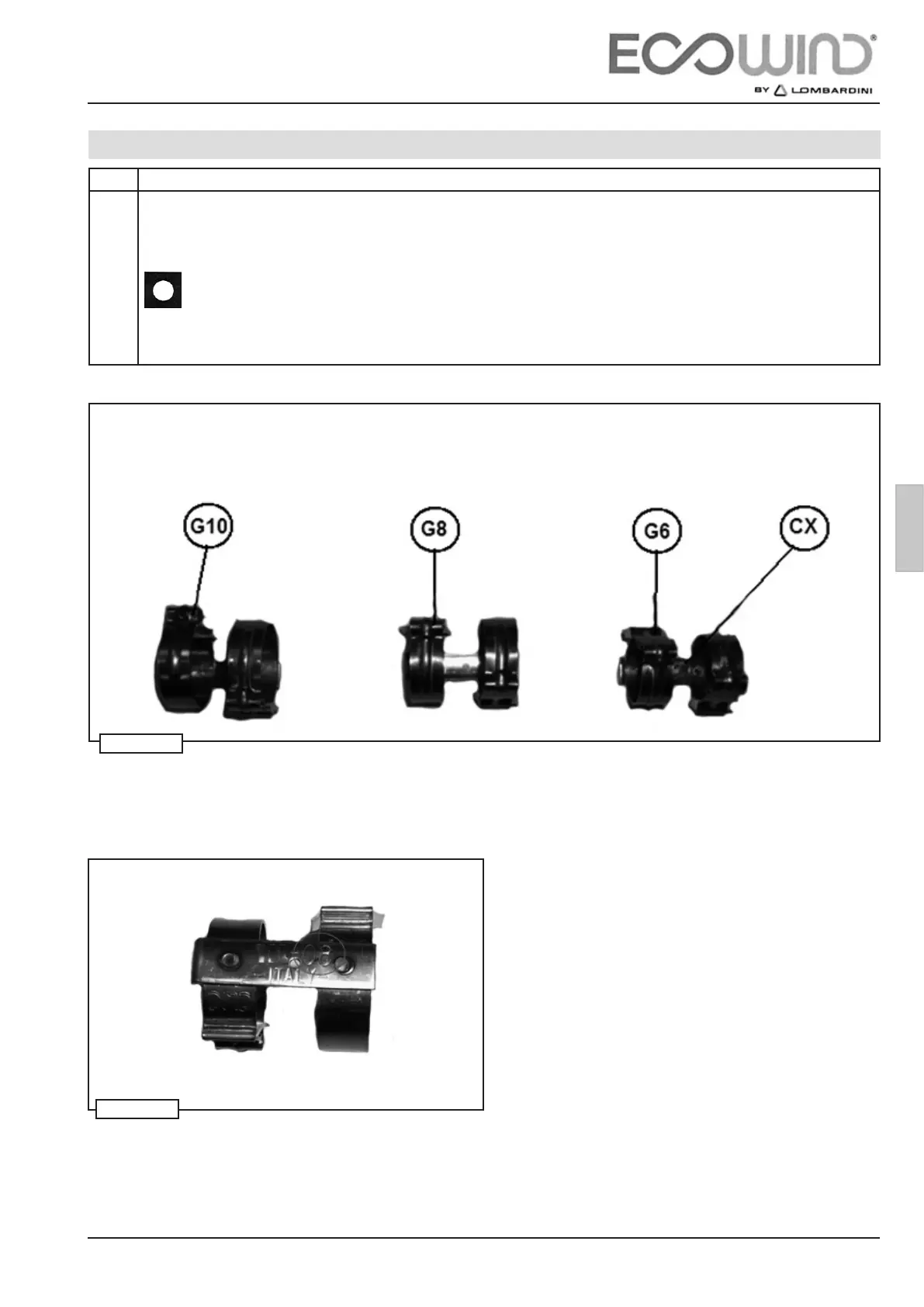

Fig. 49
Fig. 49_a
Selecting the metallic clamp CX in relating to the hoses external diameter as showed in g. 5 and g 6.
Insert the size printed on the back of the clamp as showed in g.
49_a answers at the size of rubber hoses
3 - ASSEMBLY AND INSTALLATION
3.6 CONNECTING FITTINGS - GAS HOSES
NB. Attention
Use CLIC clamps supplied with the equipment, or only MANULI manufactured.
Step Description
1 Insert clamps CX (Clic) into the gas pipes Q, as shown in Fig. 49
Then insert the ttings (UNF) into hoses Q, tighten them with the clamps using the special pliers P (Fig. 50-53) not
supplied with the equipment.
NB: The clamps (Clic) must be positioned as showned on Fig. 56 pag. 34
WARNING
Make sure that the sealing gaskets (OR), provided inside the accessory packet, are correctly seated (g. 60
pag 36 ).
