Fig. 51
Fig. 50
Fig. 52

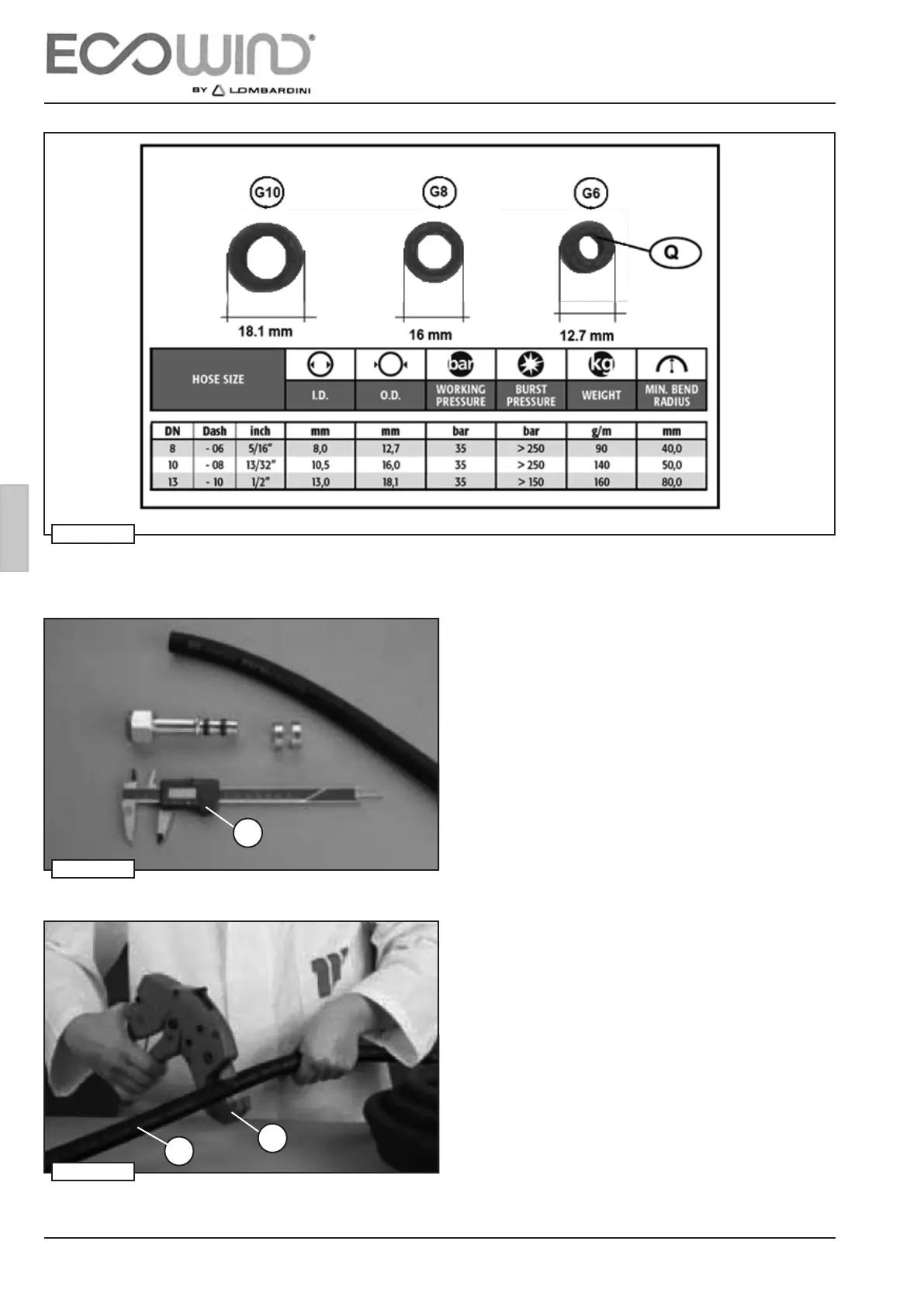

Size to all AC rubber hoses and technical data
Before the starting to hose closing operations, check the
dimensions components half a caliber K.
Cut end of the hoses H in a perpendicular direction using only
the manual cutter C as showed in g 52
H
C
K
ASSEMBLY AND INSTALLATION - 3
