33
THIS MANUAL IS PROPRIETY OF ECOWIND by LOMBARDINI - ALL FORMS OF REPRODUCTION, PARTIAL OR OTHERWISE, IS STRICTLY PROHIBITED
G
B
Fig. 56
Fig. 55
Fig. 54
Fig. 53
H
S

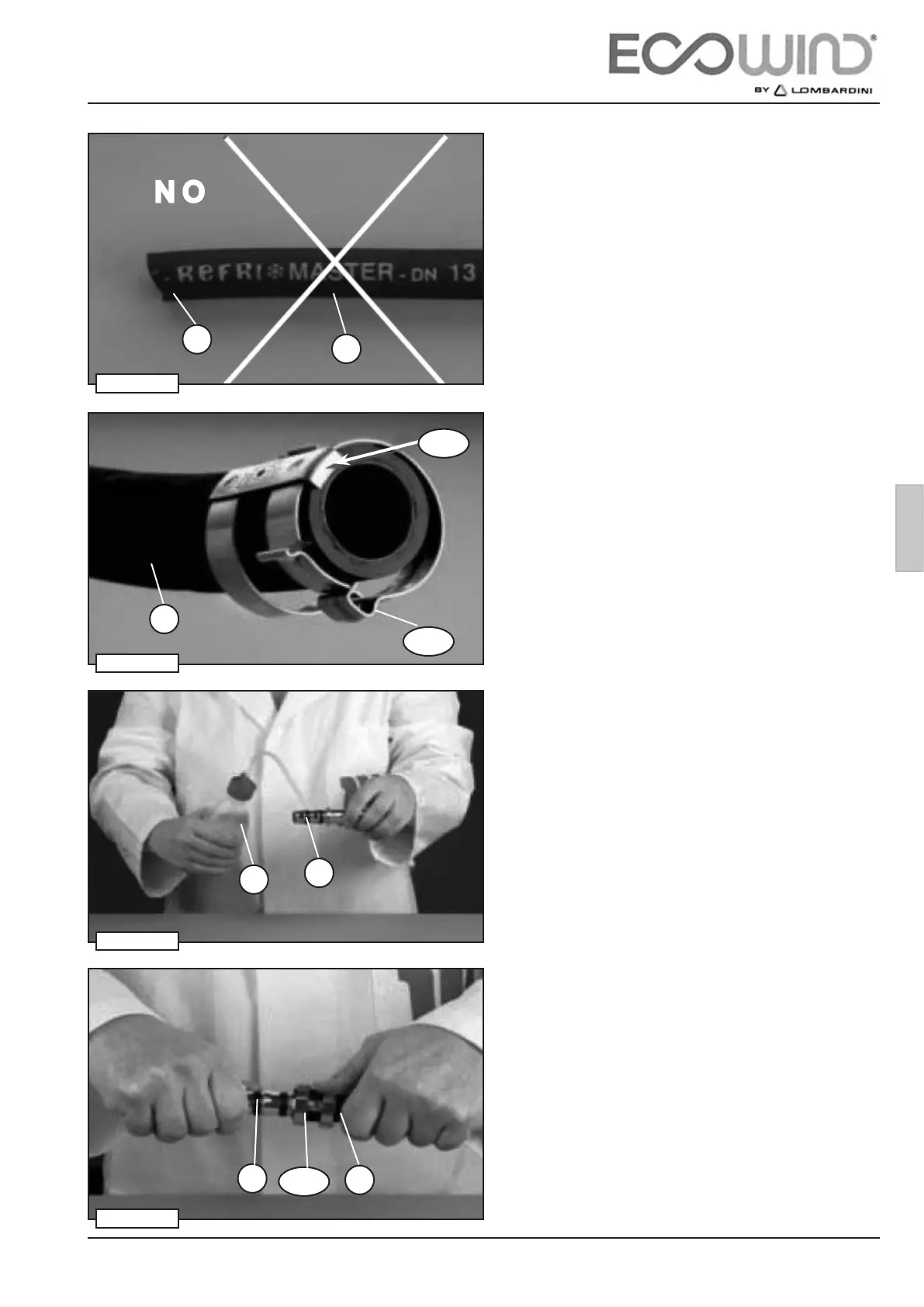

Verify the surface S at the end of the hose H to be cut in a
perpendicular direction
Place the metallic clamp CX on the exible hoses H in such a
way that tooth of bar A comes contact with the end of the hose
that as been cut as showed in g. 54
CX
H
Grease the end of the tting joint F with the same oil O used in
the air conditioner system see g. 55
Find the correct orientation and insert completely the tting F in
to the hose H complete of clamp CX.
F
O
H
CXH
N O
A
3 - ASSEMBLY AND INSTALLATION
