THIS MANUAL IS PROPRIETY OF ECOWIND by LOMBARDINI - ALL FORMS OF REPRODUCTION, PARTIAL OR OTHERWISE, IS STRICTLY PROHIBITED
G
B
O
P
P
M
N
Fig. 78Fig. 77
Fig. 79
EC
P
Fig. 80
UP
DOWN
J

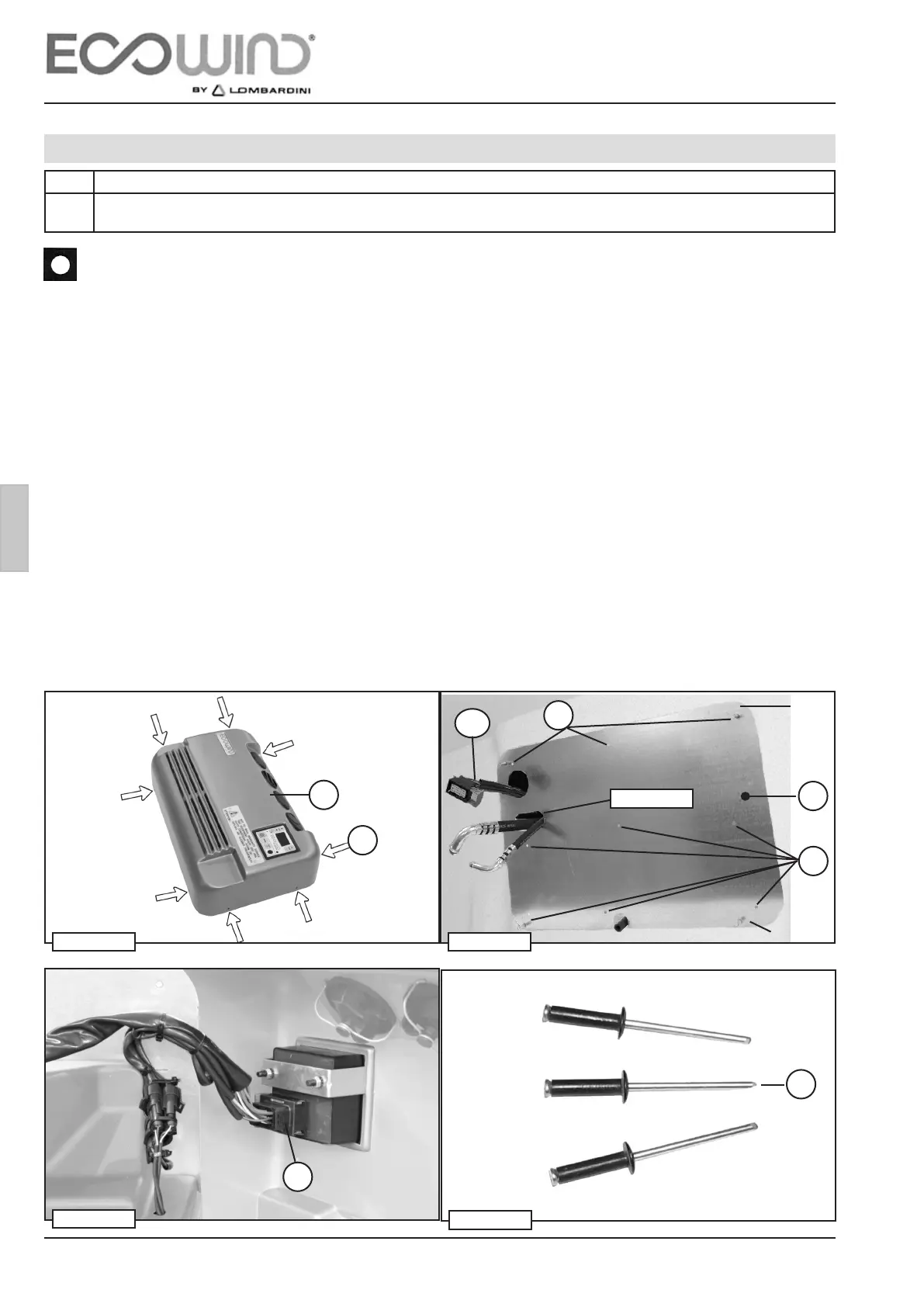

3.9 INSTALLATION OF THE SPLIT UNIT
ASSEMBLY AND INSTALLATION - 3
Bore Ø 34
Step Description
1 Loosen and remove the 8 self-threading screws N holding the four sides of the cover M and remove it by disconnecting
the connectors C. Take care not to disconnect the cables on the inside split g. 77-79.
WARNING
The position of the split unit inside the cab must be agreed between the installer and the
nal customer (vehicle owner) before installation.
