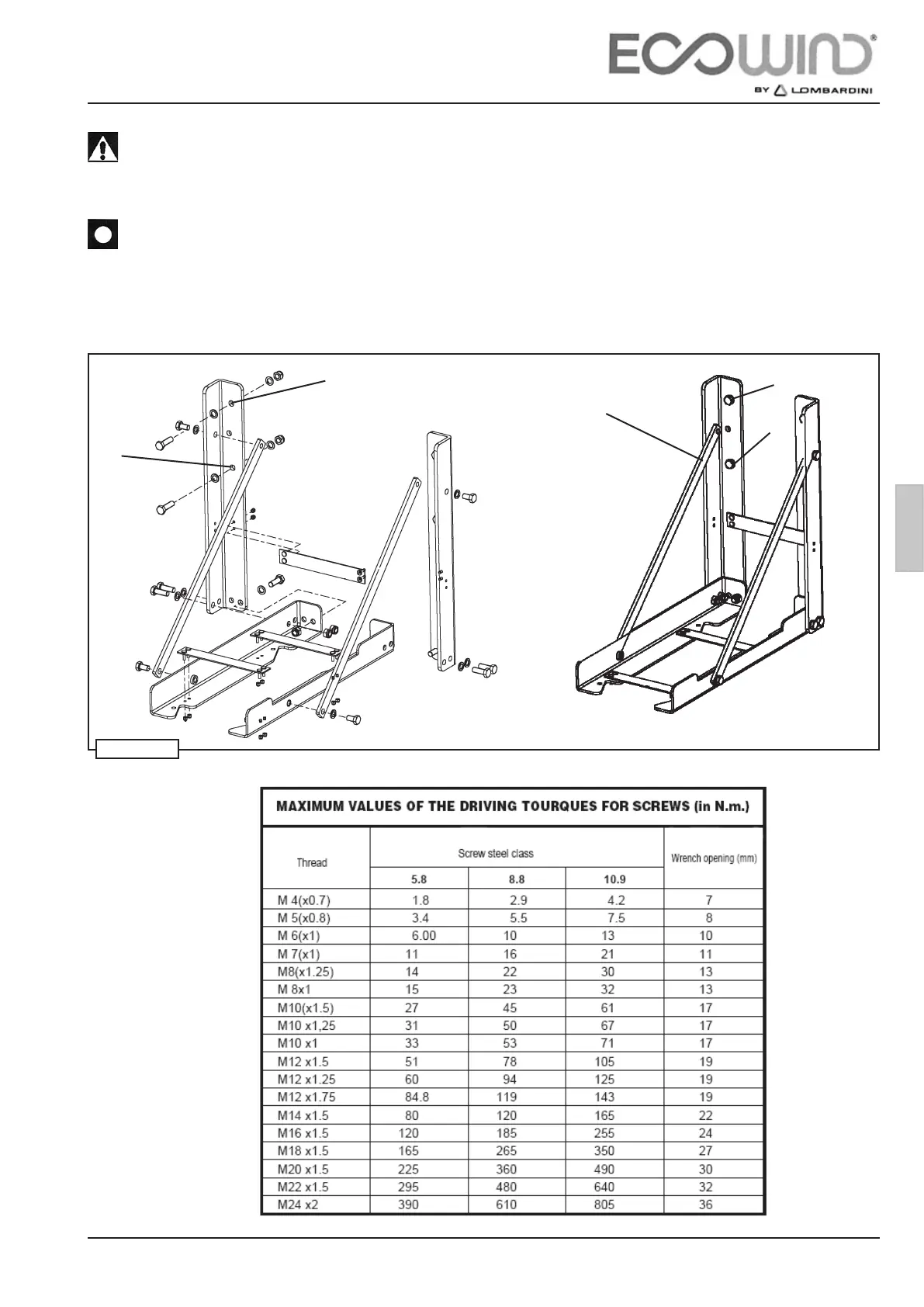

3 - ASSEMBLY AND INSTALLATION
ATTENTION ! ! !
Assemble the entire support structure on the workbench before attaching it to the frame.
WARNING
The holes, F1 and F2 indicate on brackets “7” are not drilled, because their to be drilled during the installation and also
must be considered the kind of vehicle frame .
The minimum height H recommended of power unit frame S to the oor, must be at measurement as showed in g. 6
pag. 18.
