35
THIS MANUAL IS PROPRIETY OF ECOWIND by LOMBARDINI - ALL FORMS OF REPRODUCTION, PARTIAL OR OTHERWISE, IS STRICTLY PROHIBITED
G
B
Fig. 59_d
Fig. 59_c
Fig. 59_b
Fig. 59_a

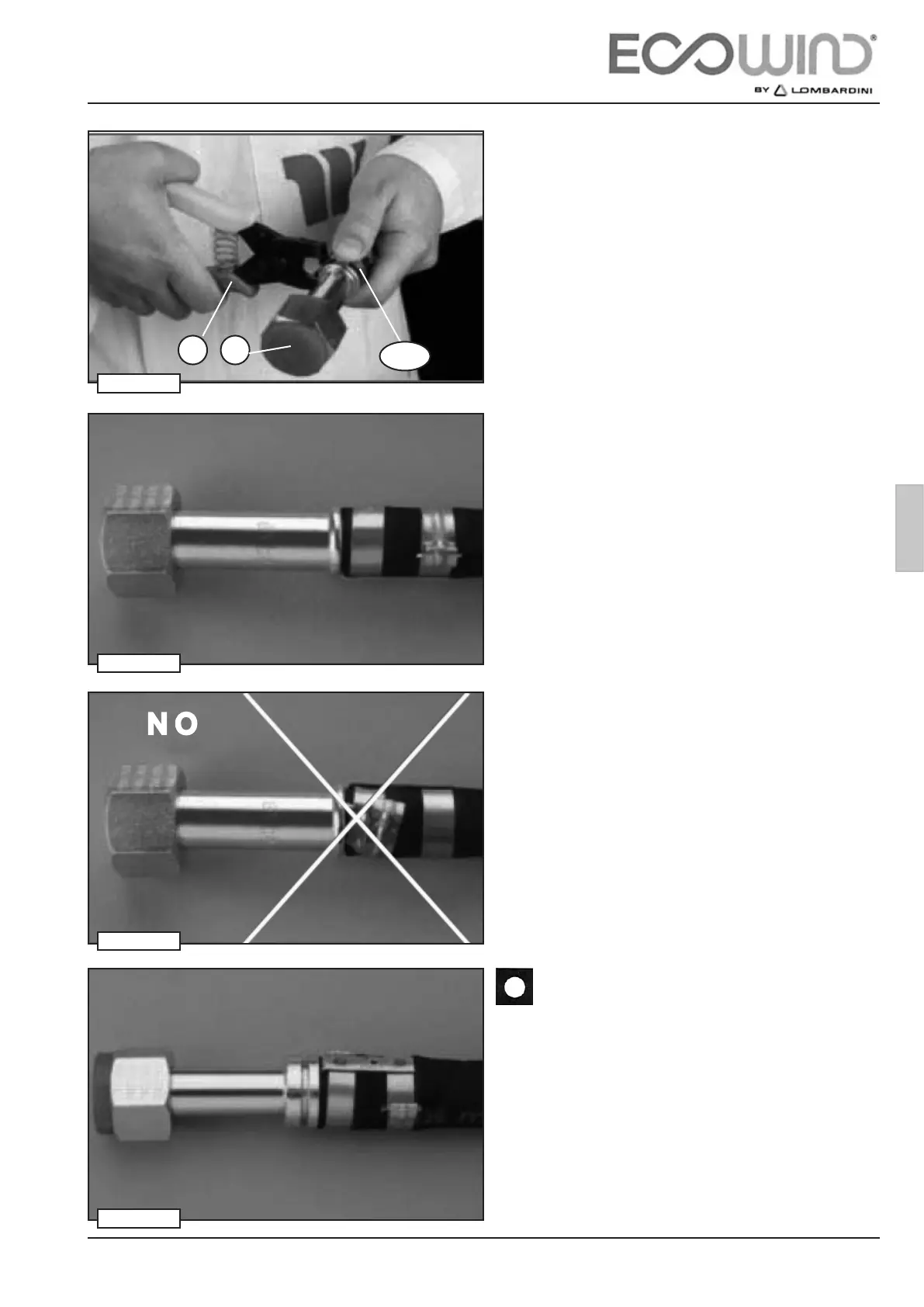

To place the tting F, position the round nose A of the pliers P
at the hook shaped end of the clamp and the thin nose B at the
end with the hooked teeth. Tighten the double clamp CX until
the clicK using the special “CLICK” OPEN-CLOSE pliers P . to
disassemble, just reverse the position of the ends of the pliers
on the clamp.
NW: For a good safety and correct closing is advised to
not reuse the clamp CX after rst closed.
Verify the parallelism of two metallic clamps.
Make attention in tightening clamp in the right way.
WARNING
Position correctly the clamp as showed in g. 59_d and 59_e !
RIGHT !
F
CX
P
N O
3 - ASSEMBLY AND INSTALLATION
