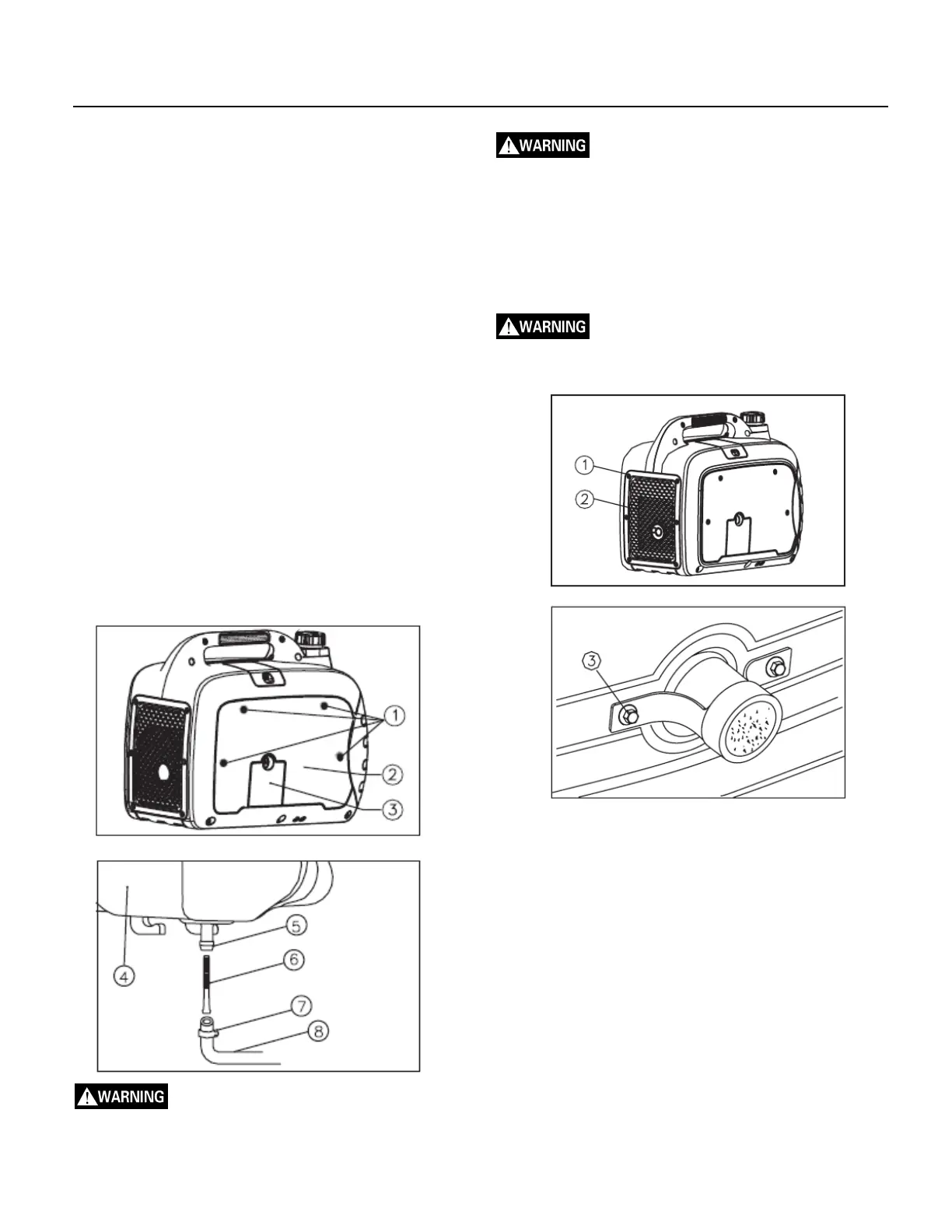

SECTION 3. MAINTENANCE
3-4 Clean fuel filter
The fuel filte prevents dirt or water which may
be in the fuel tank from entering the carburetor. If
the generator has not been run for a long time, the
fuel filte should be cleaned.
1) Remove the screw ① and then remove the
cover ② and Oil observation window ③.
2) Drain the fuel in the fuel tank④. Hold the tube
clip ⑦ toward downward and pull out the fuel
tube ⑧ which connect on the fuel
tank, then disassemble fuel filter.
3) Put the fuel filter into non-combustible or
higher flash point solvent and clean it.
4) Assemble fuel filter to the main jet ⑤ on the
fuel tank，then assemble fuel tube to main jet on
the fuel tank and install tube clip.
Gasoline is extremely flammable
and explosive. Do not smoke or allow flames or
sparks in the work area.
After reassembly, check for leaks,
and make sure the work area is dry before
starting the engine.
3-5 Spark Arrester
A hot muffler can cause severe
burns. Allow the generator set to cool before
servicing the muffler.
1. Unscrew 6 bolts ①，
and take off
shutter ②.
2. Loosen the bolt ③
and then rem
muffler screen .
3. Clean the carbon on the muffler screen
by wire brush.
4. Check the muffler screen and spark
arrester, replace if it damage.
5. Install spark arrester.
6. Install the cover and tighten the screws.
- 10 -
