LONCIN LC3000i User Manual

SECTION 4. DISASSEMBLY AND SERVICE
4-4 Engine

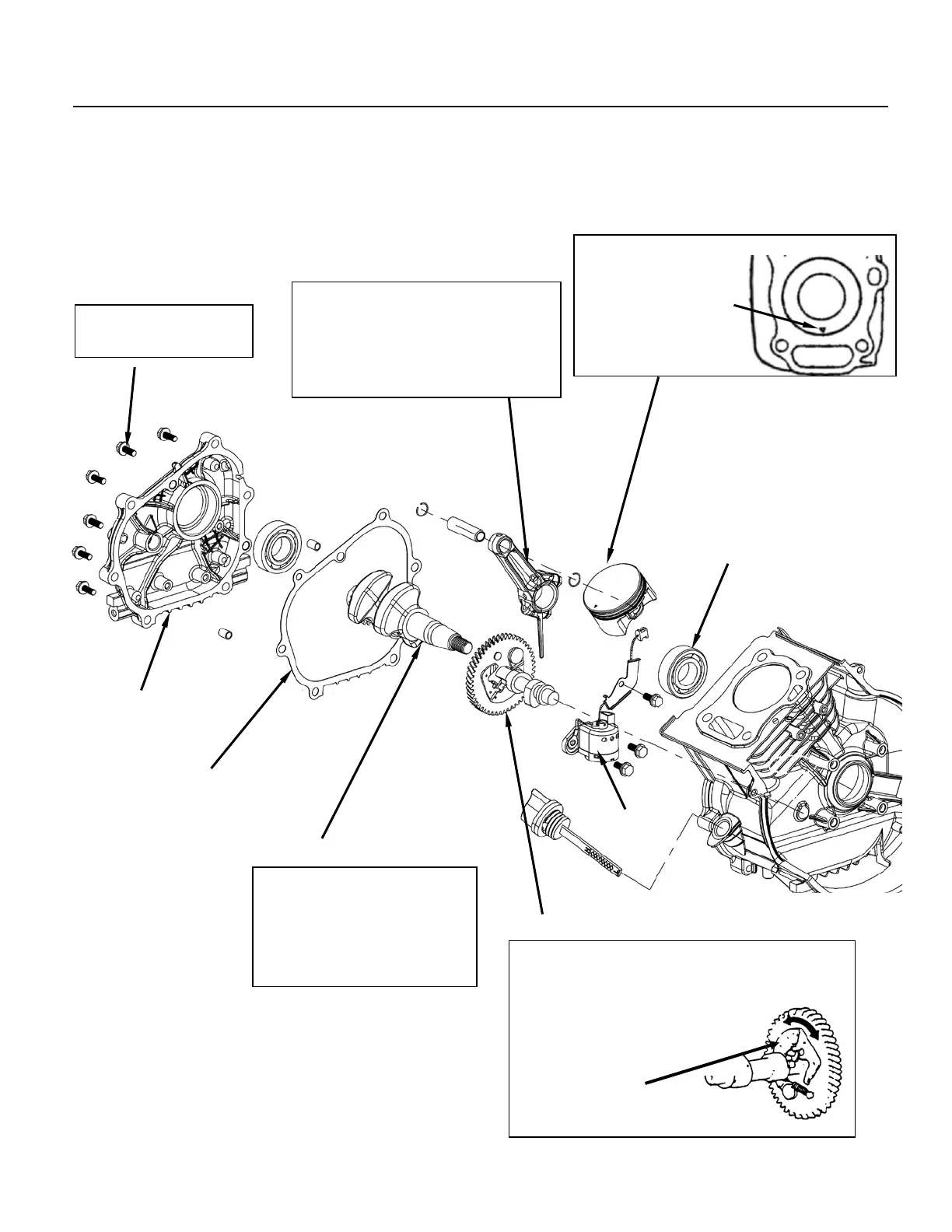

4-4-1 Crankcase /Camshaft / piston
a.DISASSEMBLY/ REASSEMBLY
CONNECTING ROD
OIL LEVEL
SWITCH
DECOMPRESSOR
REASSEMBLY:
Check that the decompressor
weight moves smoothly, and
the spring is not weak or
worn. Install with the
timing
marks aligned.
CAMSHAFT
6205 BEARING
CRANKCASE
COVER PACKING
BOLT M8×32
Torque: (26~32) N•m
REASSEMBLY:
Install with the oil dipper toward
the
governor arm’s hole end and
the ribs on the cap and
connecting rod must be aligned.
REASSEMBLY:
Install with the
triangle mark
toward the push
rod hole.
PISTON
REASSEMBLY:
Push in until the bearing
touches the crankcase. Be
careful not to damage the
oil seal.
CRANKSHAFT
CRANKCASE COVER
- 21 -
