SECTION 4. DISASSEMBLY AND SERVICE

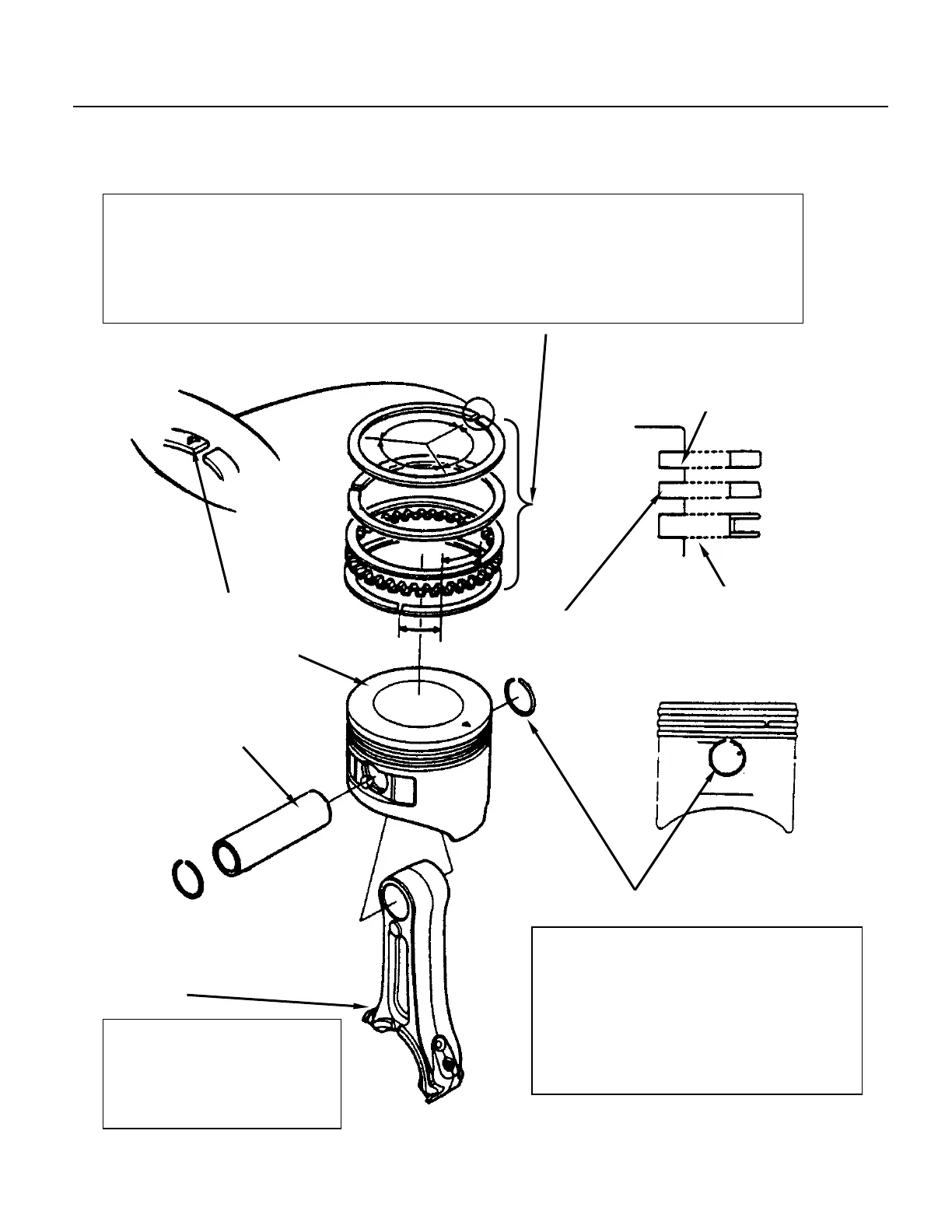

b.PISTON/ PISTON RING
REASSEMBLY:
1) Install all rings with the markings facing upward.
2) Be sure that the top (chrome plated) and second rings are not interchanged.
3) Check that the rings rotate smoothly after installation.
4) Set the piston ring end gaps 150° ~ 210° degrees apart, and do not align the gaps
with the piston pin bore.
MARKING
PISTON
PISTON PIN
CONNECTING
ROD
REASSEMBLY:
Install the connecting rod
with the long end toward the
triangle marked side of the
piston.
PISTON RING
TOP RING
(CHROME PLATED)
OIL RING
SECOND RING
PISTON PIN CLIP
REASSEMBLY:
Install by setting one end of the clip in
the piston groove, holding the other end
with long-
nosed pliers, and rotating the
clip in the groove. Do not align the end
gap of the clip with the cut-
out in the
piston pin bore.
- 22 -
