LONCIN LC3000i - Outer Case Assembly

SECTION 4. DISASSEMBLY AND SERVICE

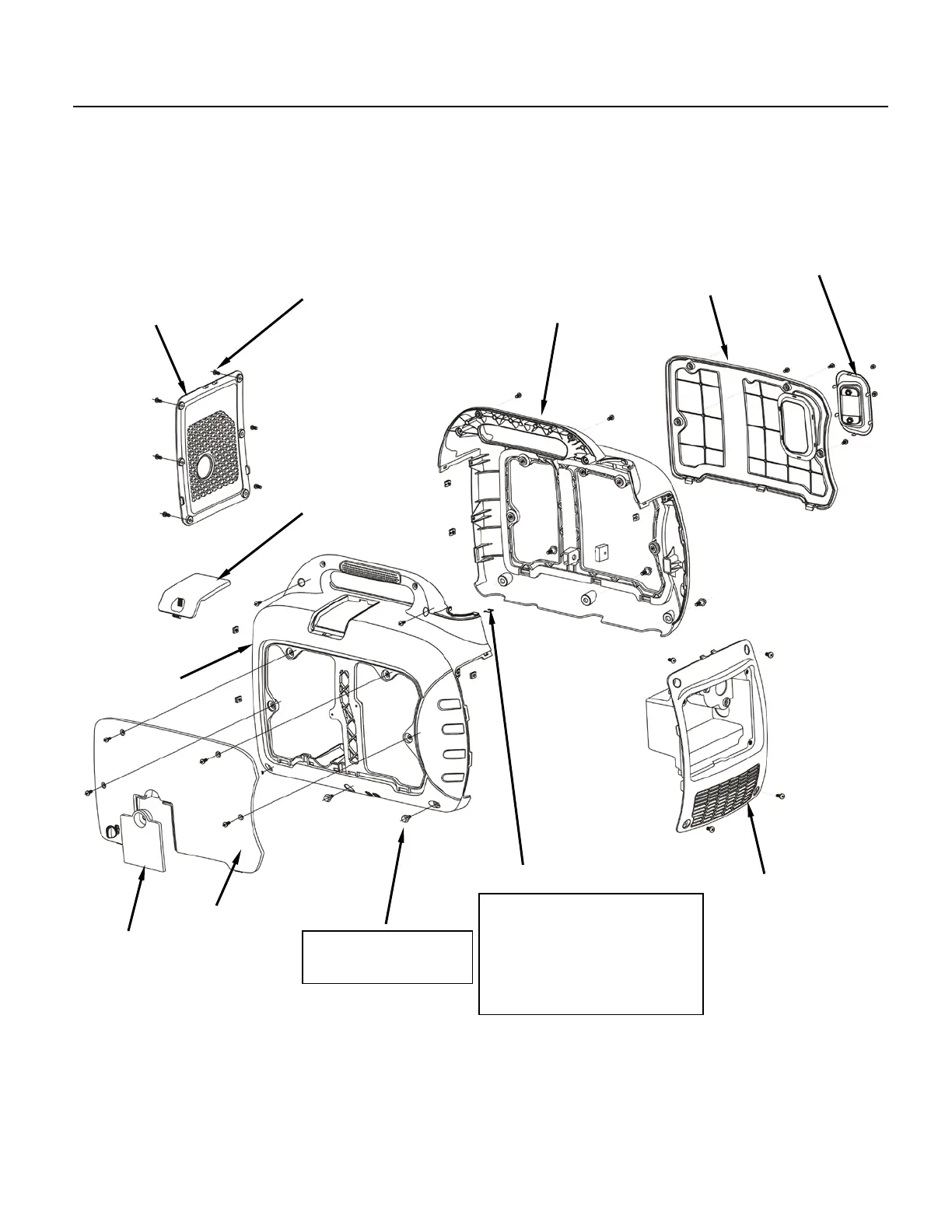

4-5-6 Outer case assembly
a. DISASSEMBLY/ REASSEMBLY
LOUVER
PANEL SEAT
LEFT SHELL OF
ELECTRIC
GENERATOR
ROPE GRIP
HOLE
DECORATION
SCREW M5×12
LEFT COVER
BOLT M6
×
20
Torque: (8~12)N•m
CLIP
ASSEMBLY:
Push apart fuel filler rubber
housing by hand, push the
clip into the clip groove in
left and right carrying
covers.
RIGHT COVER
THE OIL
WINDOW
SPARK PLUG
MAINTENANCE
COVER
RIGHT SHELL
OF ELECTRIC
GENERATOR
- 55 -
