SECTION 4. DISASSEMBLY AND SERVICE

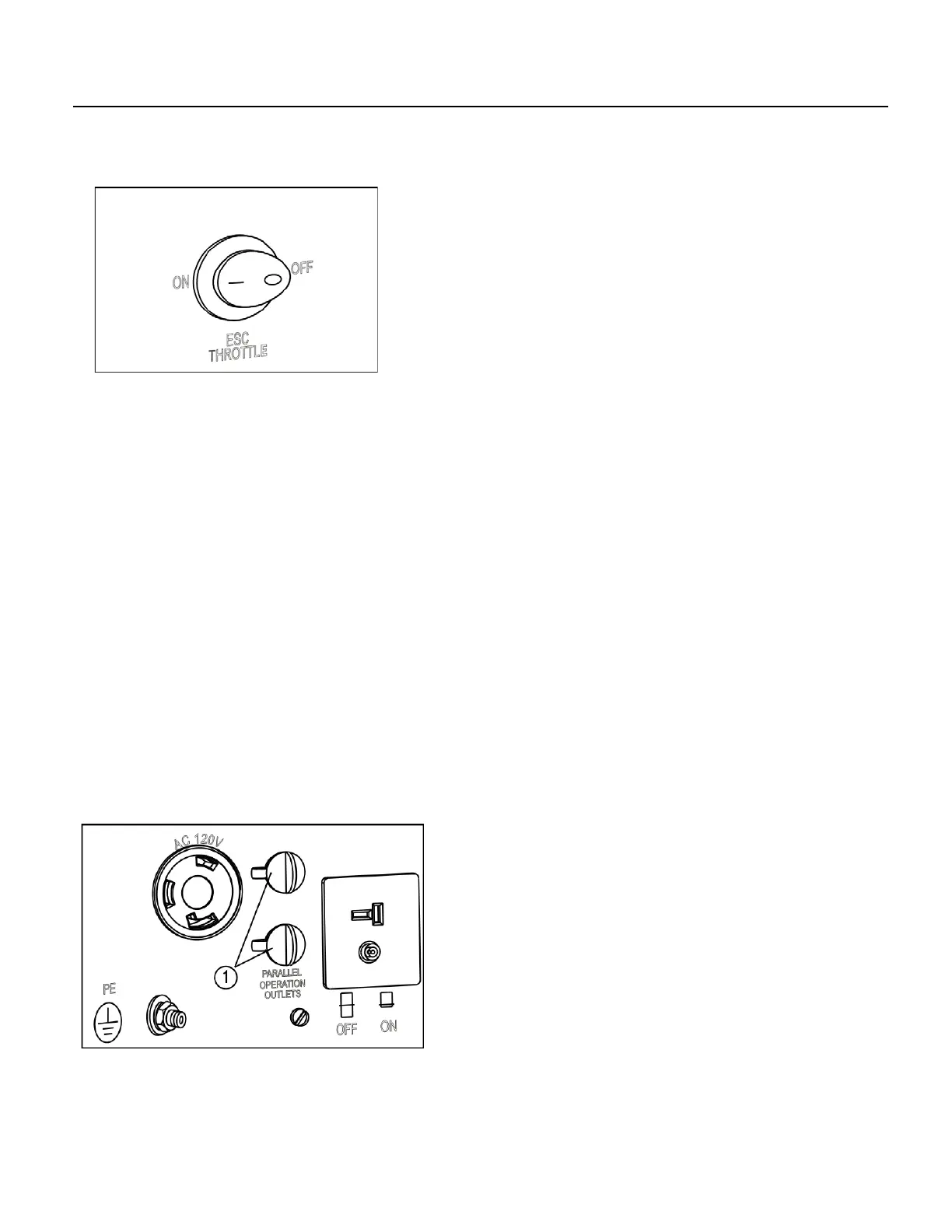

Engine smart control
① “ON”
When power down switch is in “ON” position,
energy-saving equipment controls engine speed
according to the load connected, lowering fuel
consumption rate and noise. Use an ohmmeter to
check the switch’s output leads, they should have
continuity.
② “OFF”
When power down switch is in “OFF” position,
whether the load is connected or not, the engine
will run at rated speed (5000r/min). When using an
ohmmeter to check switch’s output terminals, they
shouldn’t have continuity.
Parallel Operation Outlets
This is the terminal ① for connecting special
cables for parallel running of two generator. The
parallel running requires two generator and the
special cables. (The rated output in parallel
running is 3.0Kva and the rated current
is 25.0A/120V;13.0A/230V.)
The handing, operation procedure and
the notes on usage are described in the
PARALLEL RUNNING KIT OWNER'S
MANUAL included in the Parallel.
- 54 -
