LONCIN LC3000i User Manual

SECTION 4. DISASSEMBLY AND SERVICE
4-5-5 Control Panel
a. DISASSEMBLY/ REASSEMBLY
INSPECTION
Combination switch
Check state of igntion circuit, fuel cock and choke
with combination switch in different positions.
Engine/fuel valve “OFF”; Ignition circuit is
switched off. Fuel is switched off. The engine will
not run.
Engine switch \fuel valve \chock. “ON”
Ignition circuit is switched on. Fuel is switched on.
Chock is switched on. The engine can be running.
Engine switch \fuel valve \chock. “CHOKE”
Ignition circuit is switched on. Fuel is switched on.
Chock is switched on. The engine can be start.
Check continuity between switch terminals with
switch in different positions.

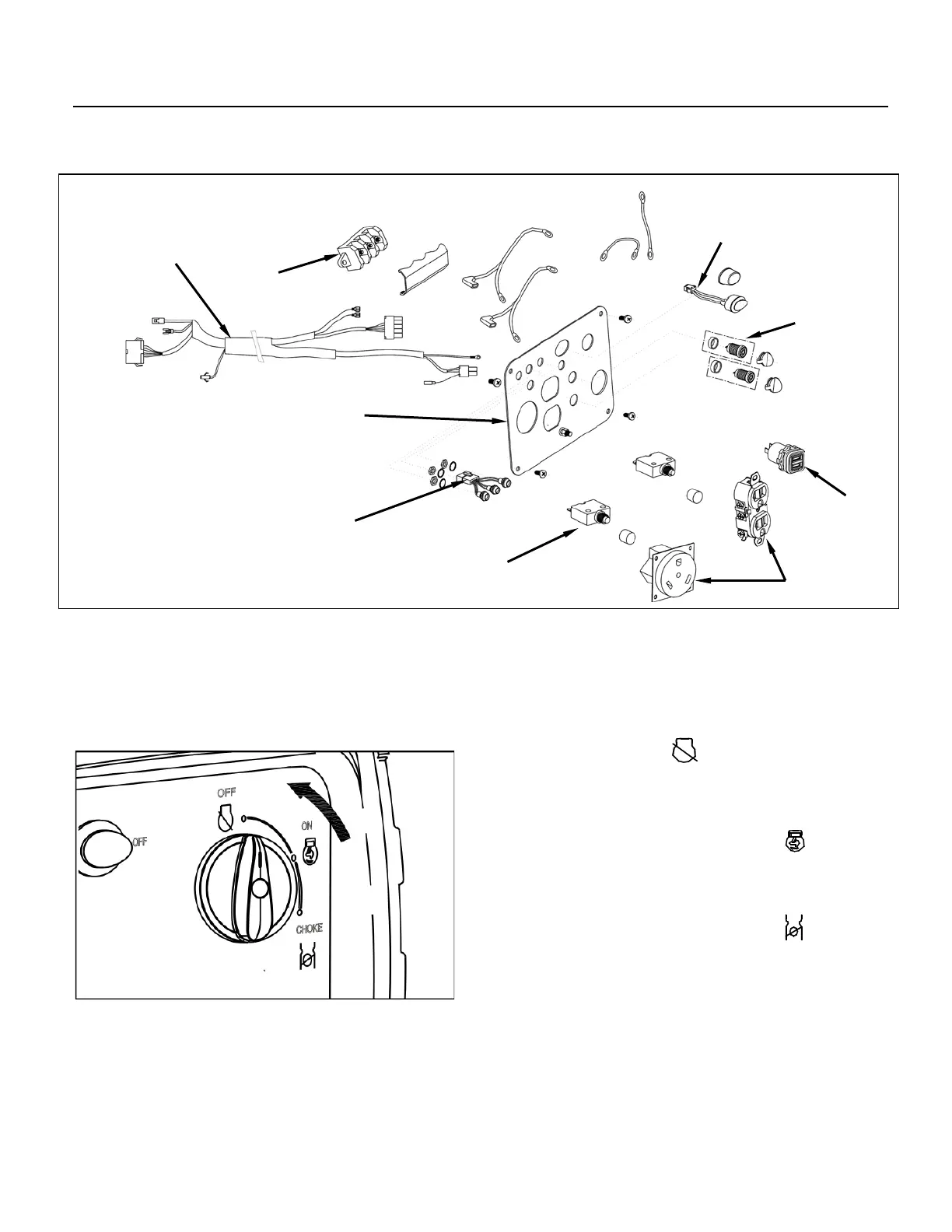

WIRE HARNESS
ASSY
TERMINAL,
VOLT CHANGE
DC SOCKET
LED INDICATOR
LIGHT
AC
RECEPTACL
IDLE
SWITCH
GRID-CONNECTED
RECEPTACLE
AC BREAKER
CONTROL PANEL
- 51 -
