SECTION 4. DISASSEMBLY AND SERVICE

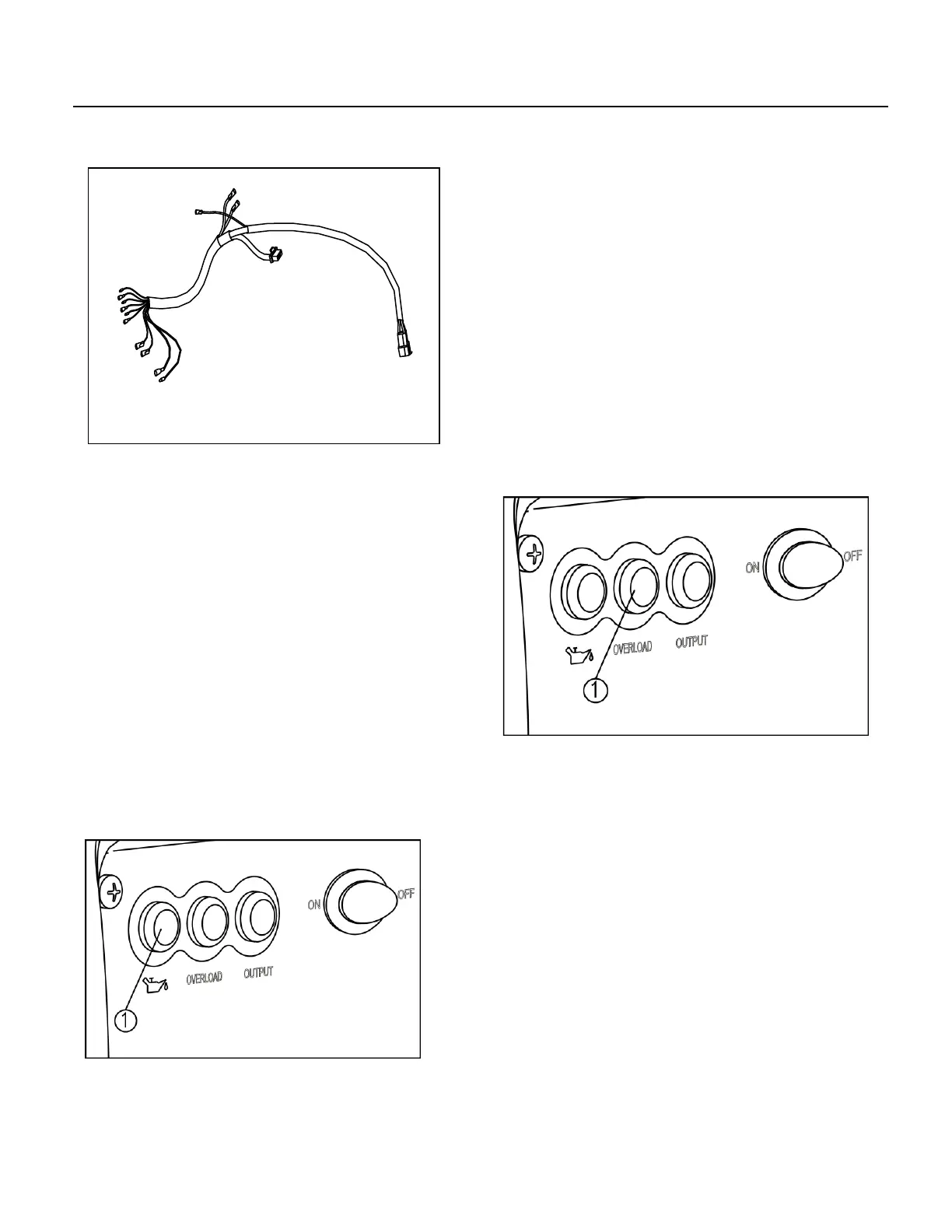

Wire harness
Detach wire harness from panel, rectifier
bridge and inverter. Check wire insulation for
apparent damage. If it is damaged, replace the
harness.
Use an ohmmeter to check and confirm each
wire’s continuity. If reistance value is infinite,
replace the harness.
Note: Use a clamp to remove and assembly
the harness, use a suitable force to avoid wires and
wire connectors.
Oil warning light
When oil in crankcase falls below safe level, oil
alert system will automatically shut the engine, and
oil warning light goes on; the engine cannot be
started until oil is added to reach the required level.
Note: If the engine stalls or cannot be started, turn
power switch into “ON” position, then pull starter
grip.
If oil warning light continues flashing for some
seconds, oil is insufficient. Add oil and restart.
Use an ohmmeter to check the light and to
comfirm continuity, if resistance value is infinite,
replace the light.
Overload indicator light (Red)
Overload light getting on means the engine
detects the overload on connected electrical
equipment’s output that causes overheating of
inverter, or a higher AC voltage. At such point, AC
protector acts to stop the generator’s work, and to
protect the generator and electric equipment
connected to it. AC indicator light (green) goes out,
and overload light (red) gets on, but the engine will
not stop running.
When overload light goes on and the genset
has no output, please take the following measures:
1. Shut all electric equipment connected, stop the
engine.
2. Lower total power of all connected electrical
- 52 -
