LONCIN LC3000i User Manual

SECTION 4. DISASSEMBLY AND SERVICE

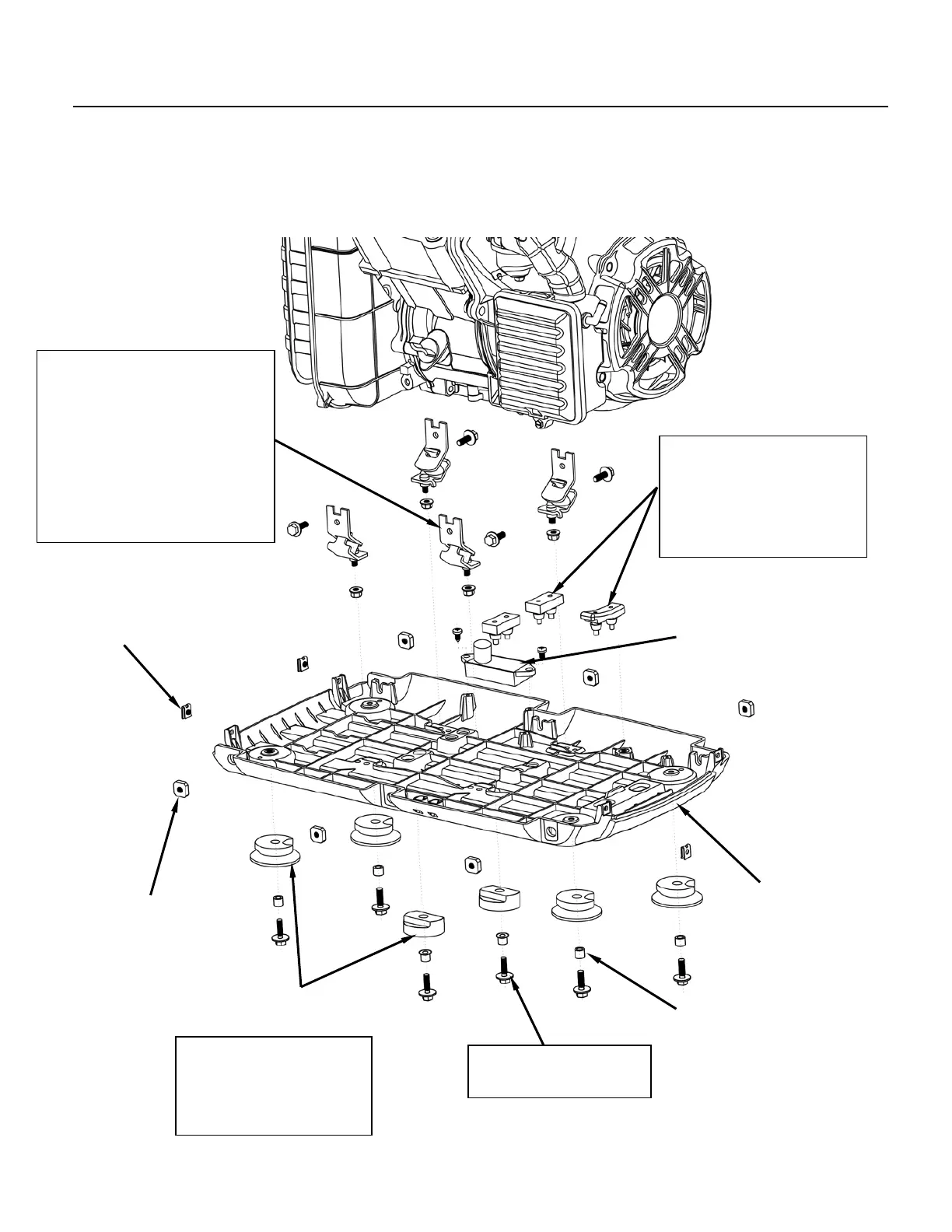

4-5-3 Frame/Bedplate Combination
DISASSEMBLY/ REASSEMBLY
MAIN UNIT BUFFER
MOUNT (4)
BOLT M6
×
20
Torque: (8~12)N•m
BUSHING
RUBBER SHOCK
ABSORBER
SQUARE NUT M5
IGNITION
CUSHING RUBBER
FRAME/BEDPLATE
COMBINATION
REASSEMBLY:
Install it under the motor,
make sure rubber has no
cracks, hardening or
wear.
REASSEMBLY:
Align it with frame/bedplate
combination’s installation
hole and install it.
Make sure the rubber is not
chapped, hardened, or worn.
Pay attention to installing
direction.
CLIP NUT M5
REASSEMBLY:
make sure rubber has
no cracks, hardening or
wear.
- 46 -
