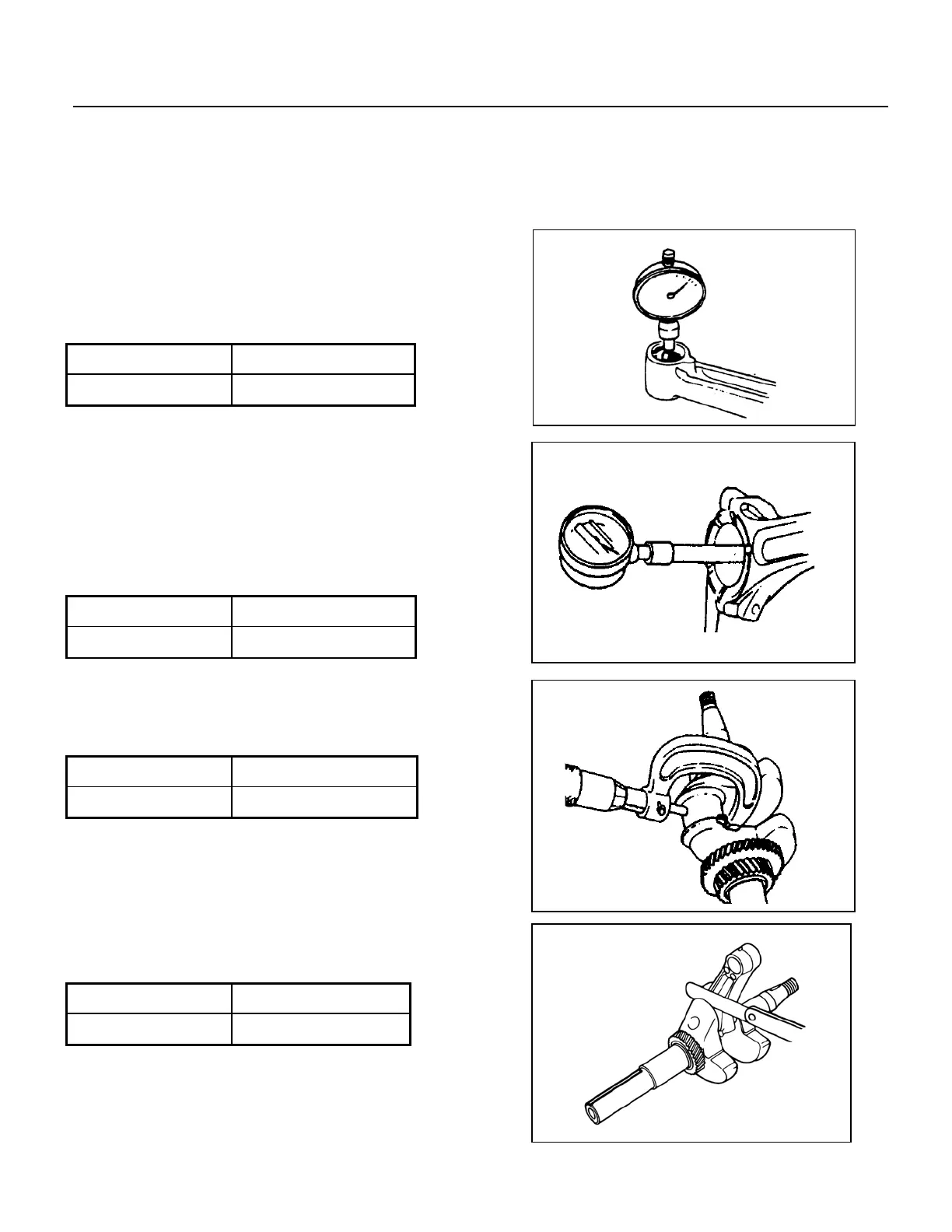

SECTION 4. DISASSEMBLY AND SERVICE
CONNECTING ROD
If the connecting rod is bent or twisted, or its big end’s bearing bush and small end shaft housing’s outer ring
has play, or one of its sides has cracks, the connecting rod must be scrapped and replaced with a new one.
1) CONNECTING ROD SMALL END I.D.
If it is smaller than standard, or beyond service limit,
replace the connecting rod.
Standard Service limit
13.006 mm 13.07 mm
2) CONNECTING ROD BIG END I.D.
If it is smaller than standard, or beyond service limit,
replace the connecting rod.
Standard Service limit
25.02 mm 25.066 mm
3) CRANKPIN O.D.
Standard Service limit
24.98 mm 24.92 mm
4) CONNECTING ROD BIG END SIDE CLEARANCE
Standard Service limit
0. 1-0.7mm 1.1mm
- 26 -
