SECTION 4. DISASSEMBLY AND SERVICE
b.DISASSEMBLY/ REASSEMBLY

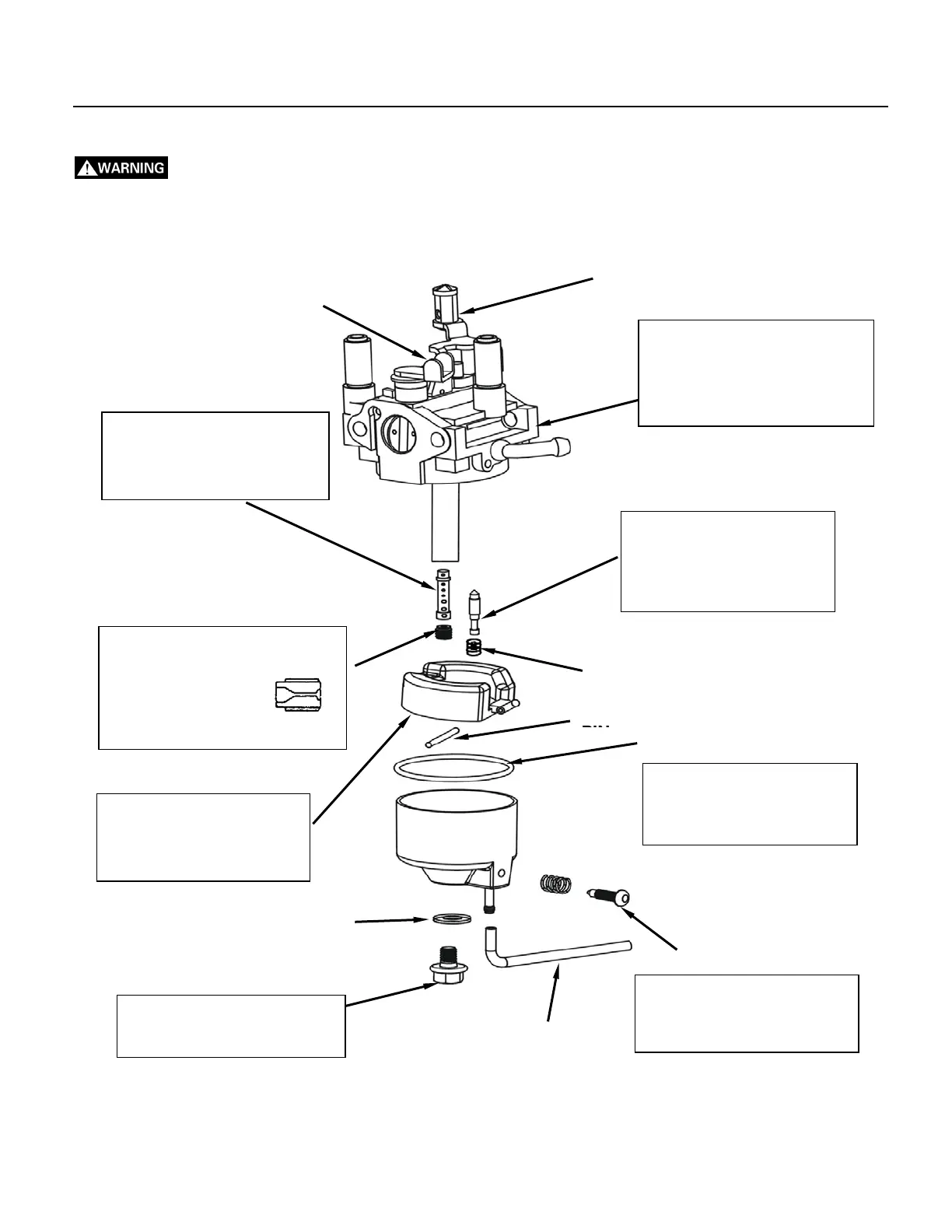

Gasoline is flammable and explosive. Close the fuel shut off valve, and drain the carburetor
before servicing the carburetor. Smoking and fire are prohibited.
REASSEMBLY:
Clean thoroughly
with compressed air
before installation.
MAIN JET
FLOAT
REASSEMBLY:
Check for smooth
movement after installing.
MAIN NOZZLE
REASSEMBLY:
Clean thoroughly with
compressed air before
installation.
SET BOLT
FUEL DRAIN
PIPE
GASKET
CARBURETOR BODY
THROTTLE ASSY
CHOKE ASSY
FLOAT VALVE
PRESSURE
SPRING
FLOAT
PIN
O RING
FUEL DRAIN BOLT
REASSEMBLY:
Check for fuel leakage after
installation.
REASSEMBLY:
Clean internal passages and
orifices with compressed air
before installing.
REASSEMBLY:
C
heck for worn valve
seat or weak spring
before installation.
REASSEMBLY:
Check for fuel leakage after
installation.
REASSEMBLY:
Check if it is correctly
installed in the groove.
