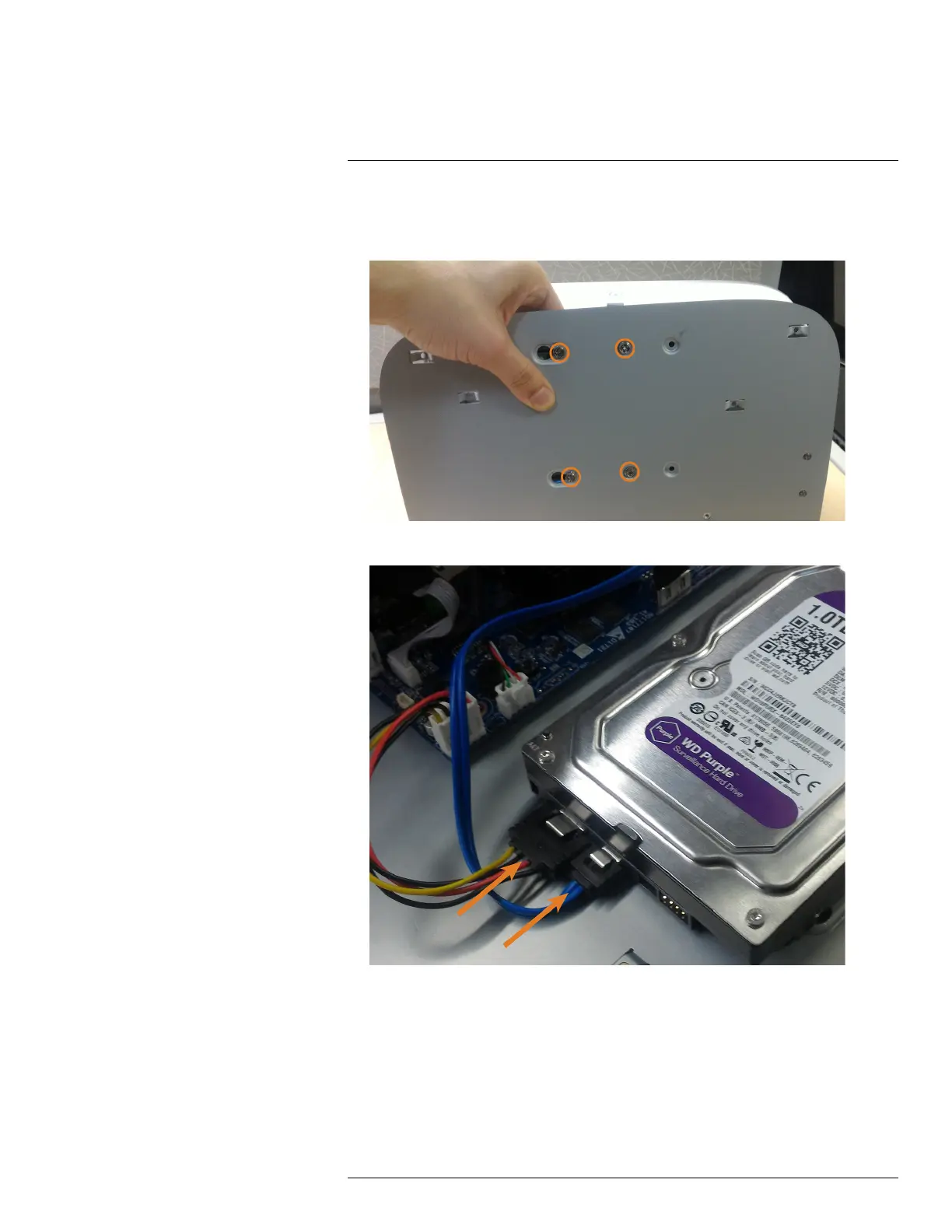

Replacing
the
Hard
Drive
19
6.
Carefully
pick
up
the
bottom
panel
with
the
hard
drive,
being
mindful
of
the
sharp
edges
of
the
bottom
panel.
Slide
the
2
pre-inserted
screws
into
the
locked
position,
then
tighten
the
screws.
Insert
and
tighten
the
2
remaining
hard
drive
screws.
7.
Connect
the
power
and
SA
T
A
cables
to
the
hard
drive.
8.
Replace
the
top
panel
and
the
6
bottom
panel
screws.
#LX40011
1;
r
.
5.0/56647/56647;
en-US
102
109
111
