Using the Main Menu15

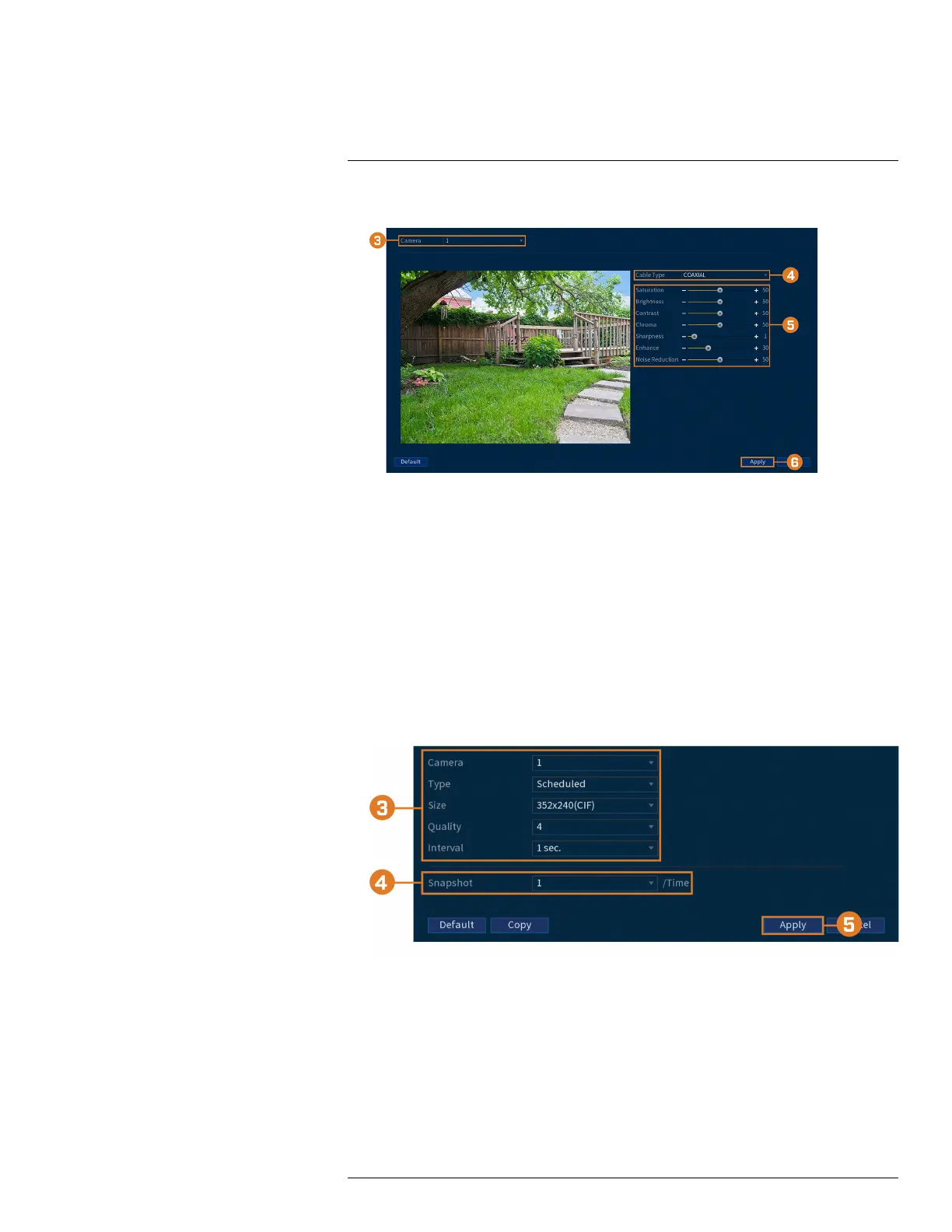

2. Click CAMERA, then click the Image Settings tab.
3. Select the channel you want to configure.
4. Select COAXIAL for cameras connected using BNC cabling, or UTP for balun installations.
5. Configure the color settings for the selected channel.
6. Click Apply.
15.6.2 Configuring Snapshot Recording
The system can be set to record snapshot images when a camera detects motion. These snapshots
can be viewed through the Playback menu or attached to email alerts and push notifications. The
Snapshot tab in the Recording menu controls the quality and recording parameters for each
camera.
To configure snapshot recording:
1. From the Live View display, right-click to open the Quick Menu, then click Main Menu.
2. Click CAMERA. Click the Recording tab on the side panel, then Snapshot on the top panel.
3. Configure the following settings for snapshots saved automatically from motion detection or
the snapshot schedule:
• Camera: Select the camera you would like to configure.
• Type: Select Schedule for the system to take snapshots according to the snapshot schedule
(see 15.9.4 Setting the Snapshot Schedule, page 79). Select Event for the system to take
snapshots according to the event schedule.
• Size: Select the resolution for snapshots.
• Quality: Select the snapshot image quality between 1 (lowest) and 6 (highest).
• Interval: Enter the interval between snapshots in seconds.
#LX400111; r. 5.0/56647/56647; en-US 63
