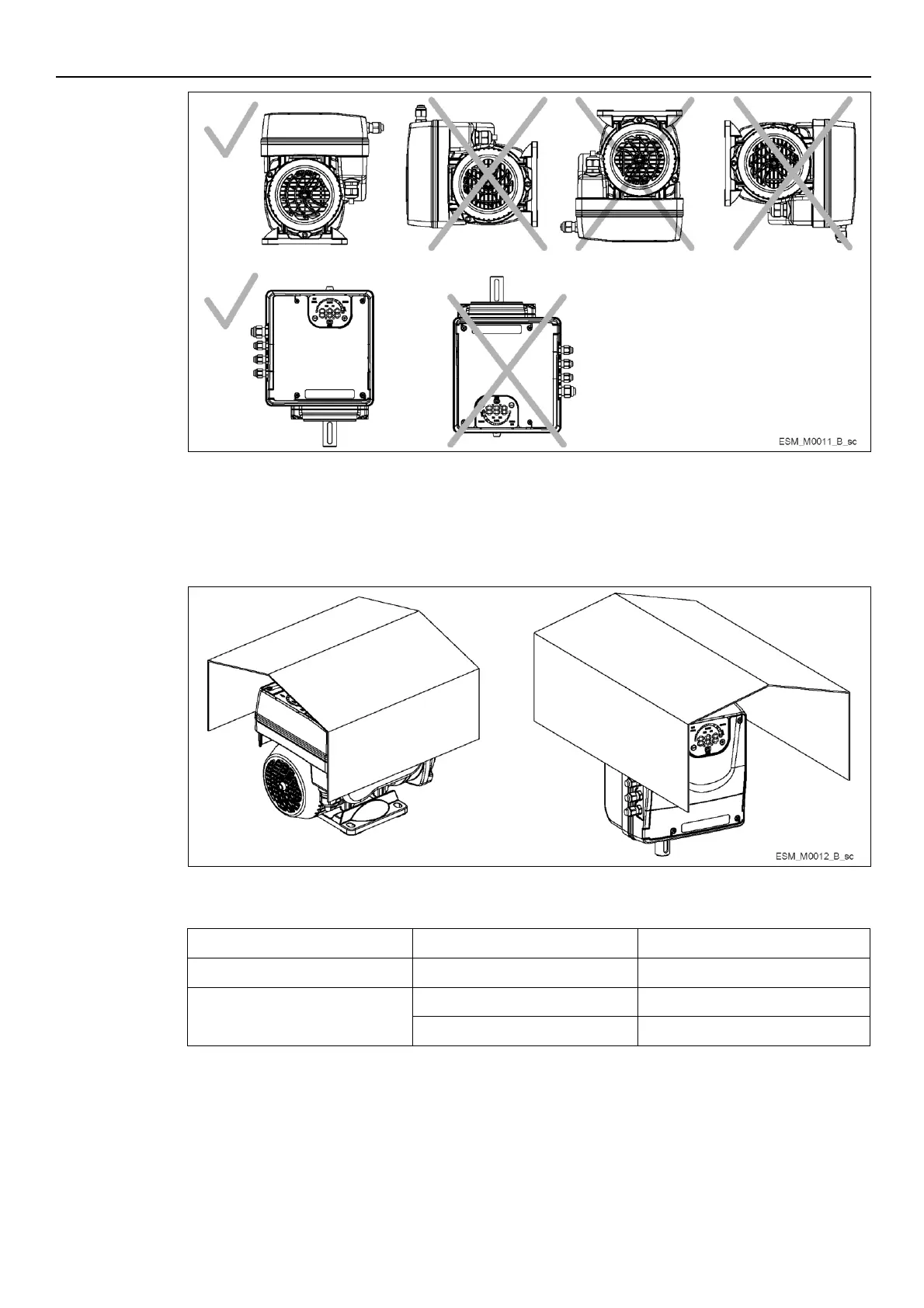

Figure 10: Permitted positions
4.1.3 Outdoor unit installation
In case of outdoor unit installation, ensure appropriate cover (see example in Figure 11).
The size of the cover must be such that the motor is not exposed to snow, rain or direct sunlight;
comply with the guidelines of Par. 9, Table 16.
Figure 11: Outdoor installation
Minimum spacing
Area
e-SM Drive model
Free Distance
Above the unit
103..105..107..111..115
> 260mm (10.2 in)
Center-distance between units (to
ensure space for cabling)
103..105..107..111..115
> 260mm (10.2 in)
303..305..307..311..315..322
≥ 300mm (11.8 in)
