Lowara e-SVE - Page 23

en – Original instructions
23

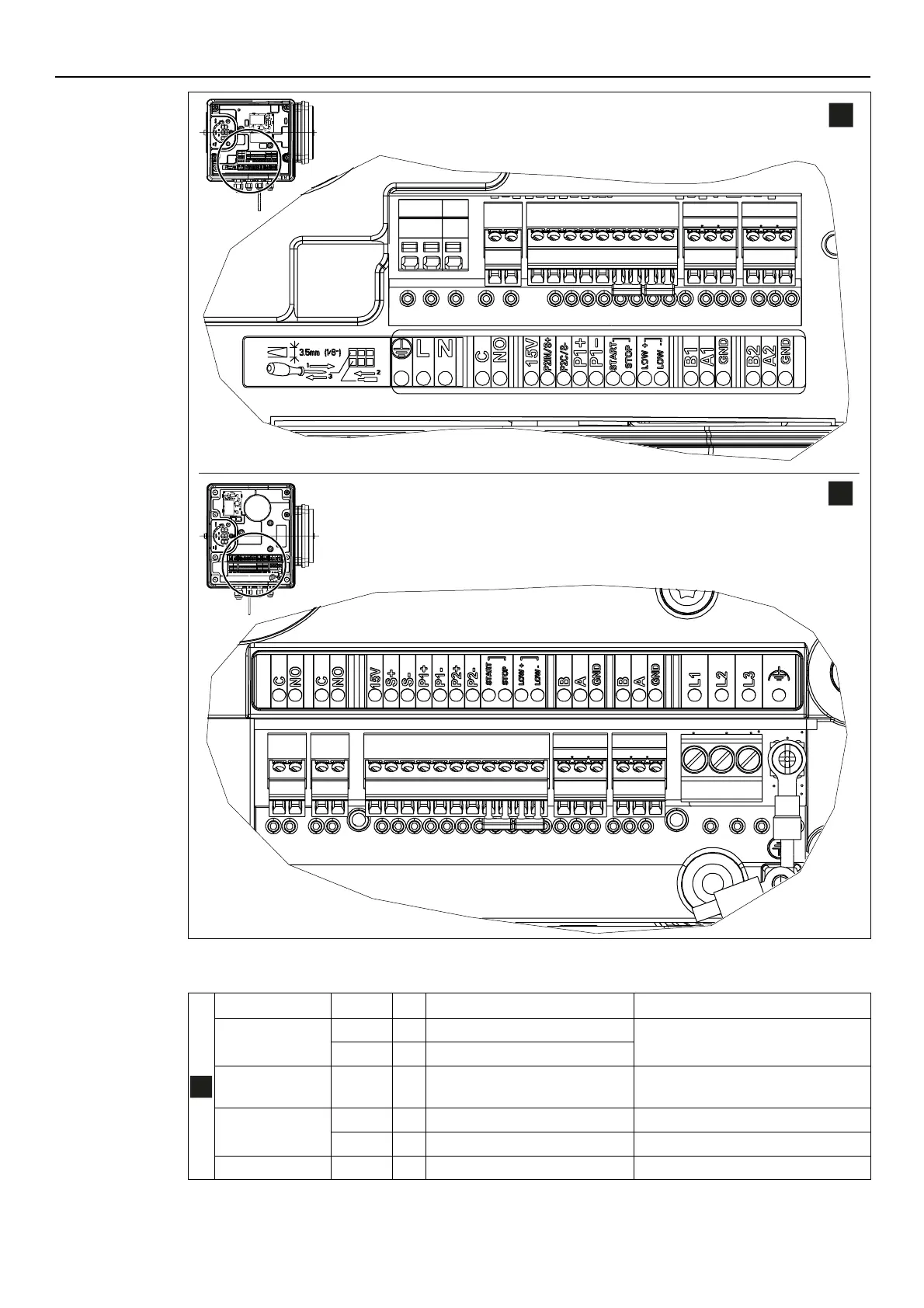

Figure 15: Connection label
Table 8: I/O terminals
Item
Terminals
Ref.
Description
Notes
Fault Signal
C
4
COM - error status relay
NO
5
NO - error status relay
Auxiliary Voltage
Supply
15V
6
Auxiliary voltage supply +15 VDC
15VDC, Ʃ max. 100 mA
Analog input
0-10V
P2IN/S+
7
Actuator mode 0-10 V input
0-10 VDC
P2C/S-
8
GND for 0-10 V input
GND, electronic ground (for S+)
External Pressure
P1+
9
Power supply external sensor +15
15VDC, Ʃ max. 100 mA
ESM_M0009_E_sc
ESM_T0023_A_sc
1 2 3 4 5 6 87 9 10 11 12 13 14 15 16 17 18 19 20
25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
1~
3~
1~
