E. Make a test run
After the transducer is installed make a test run to ensure the transducer is installed properly.
Use the slots in the transducer mounting bracket to loosen the screws and slide the transducer
up or down, if adjustments are necessary.
Shoot-thru-hull Skimmer & Pod transducer installation
Before attempting any installation on boats with otation material sandwiched within the hull,
consult the boat manufacturer.
In a shoot-thru-hull installation the
transducer is epoxied to the inside of the
boat hull.
A transducer can not shoot through wood
or metal hulls. Wood and metal hulls
require either a transom mount or thru-
hull installation.
WARNING: Do not remove material from the inner hull. Careless grinding on
the hull could damage hull integrity. Contact the boat dealer or manufacturer to
conrm hull specications
.

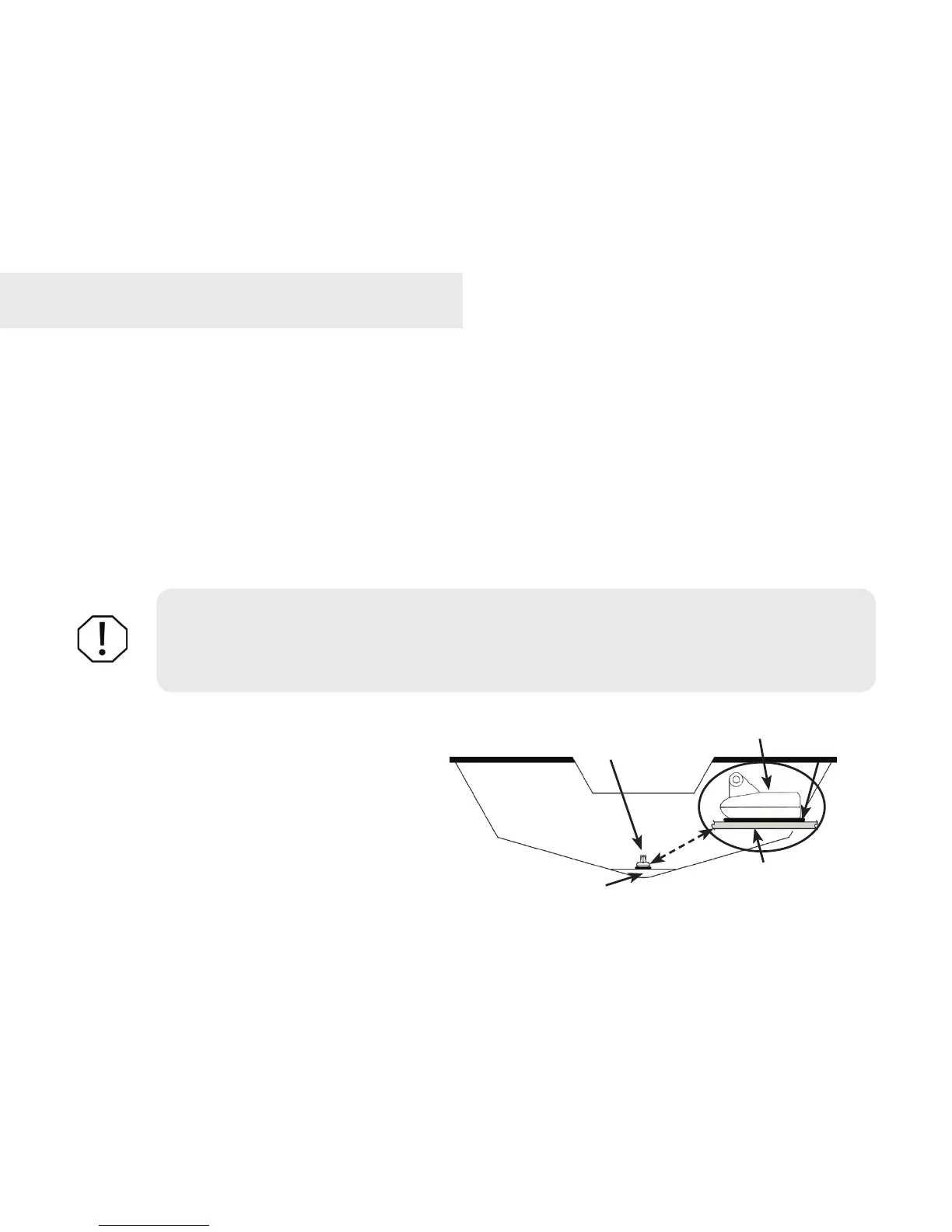

Transducer epoxied to hull
Epoxy
Transducer
Hull
Keel pad
Installation
