Lowrance Mark 5x - Connecting to Power

12

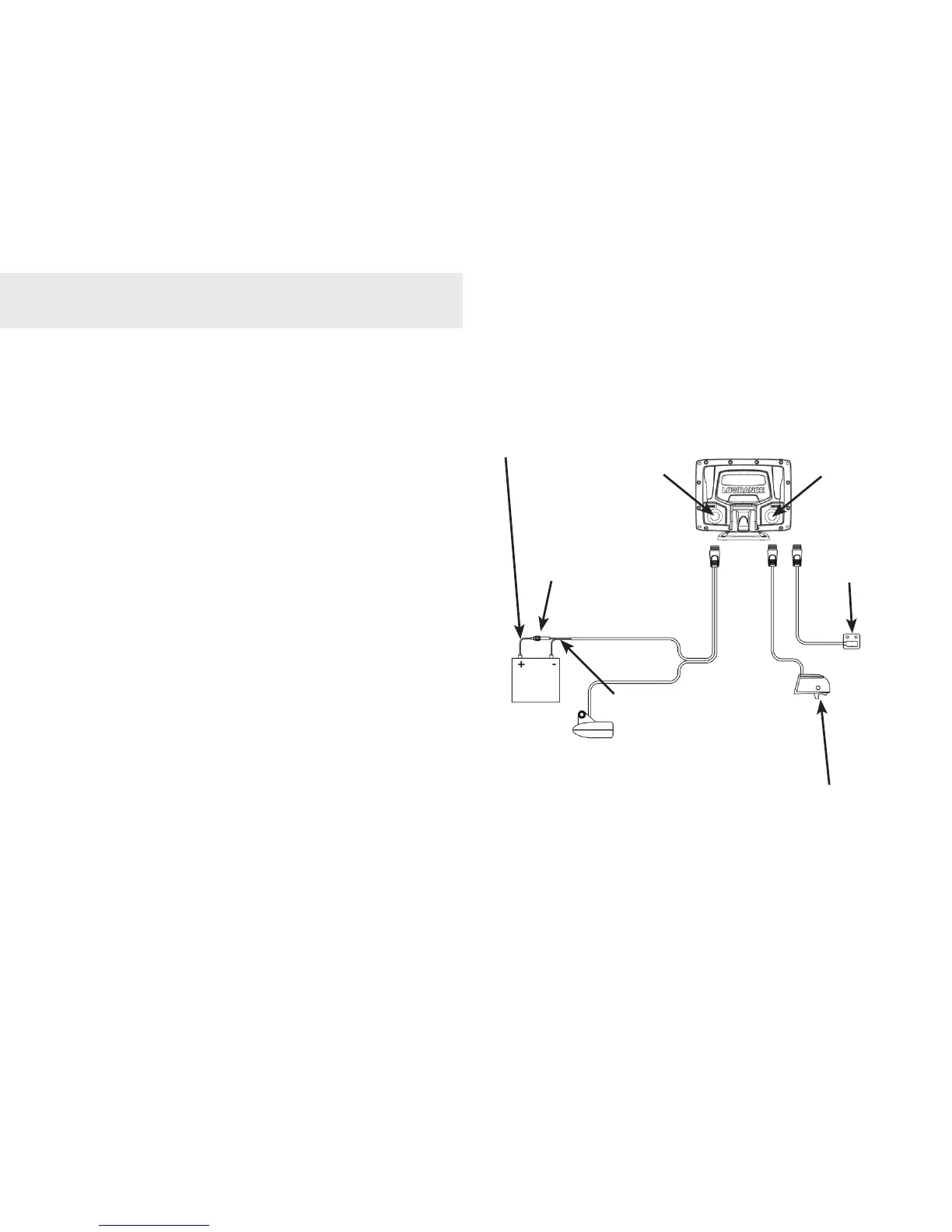

Connecting to Power
Connect the black wire to a 1.
ground.
Attach a 3 Amp fuse to the end 2.
of the power wire and then con-
nect the fuse to the positive (+)
terminal on the battery. (Use 18
gauge wire to extend the power
or ground wires.)
Connect the Power cable to the 3.
Power port on the back of the dis-
play unit.
12V
Optional paddlewheel
speed/temp sensor
Optional
temp
sensor
Black (ground)
wire
3 Amp
fuse
Red (power)
wire
Speed/
Temp
port
Power
port
Installation
