Chapter 2 System Configuration

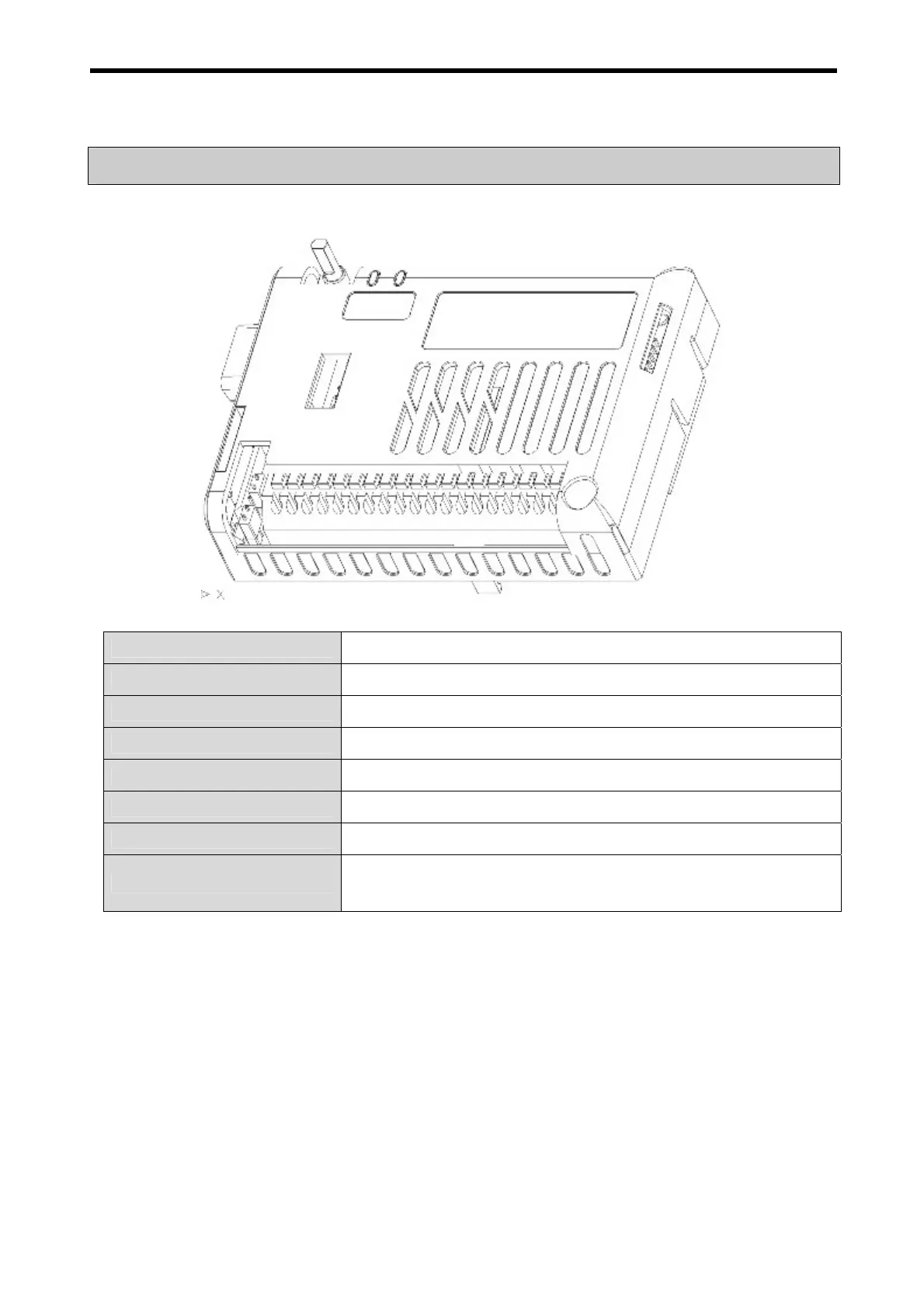

2.1 System Configuration
2.1.1 Basic System
Input points
6 Points (NPN/PNP))
Output points
Relay output 4 points
RS232C
1 port (Program download from KGLWIN)
RS485
1 port (Modbus-RTU Master/Slave)
Display LED
2 ea (Green: RUN LED, Red: ERROR LED)
Switch
3 step switch for RUN, PAU/REM, STOP
Clock function
Built-in RTC (Real Time Clock)
Data Back-up
Data of latch area and RTC data through using CR2032 lithium
battery)
