LS Industrial Systems SV-iS7 PLC User Manual

Chapter 6 Usage of Various Functions
6-3

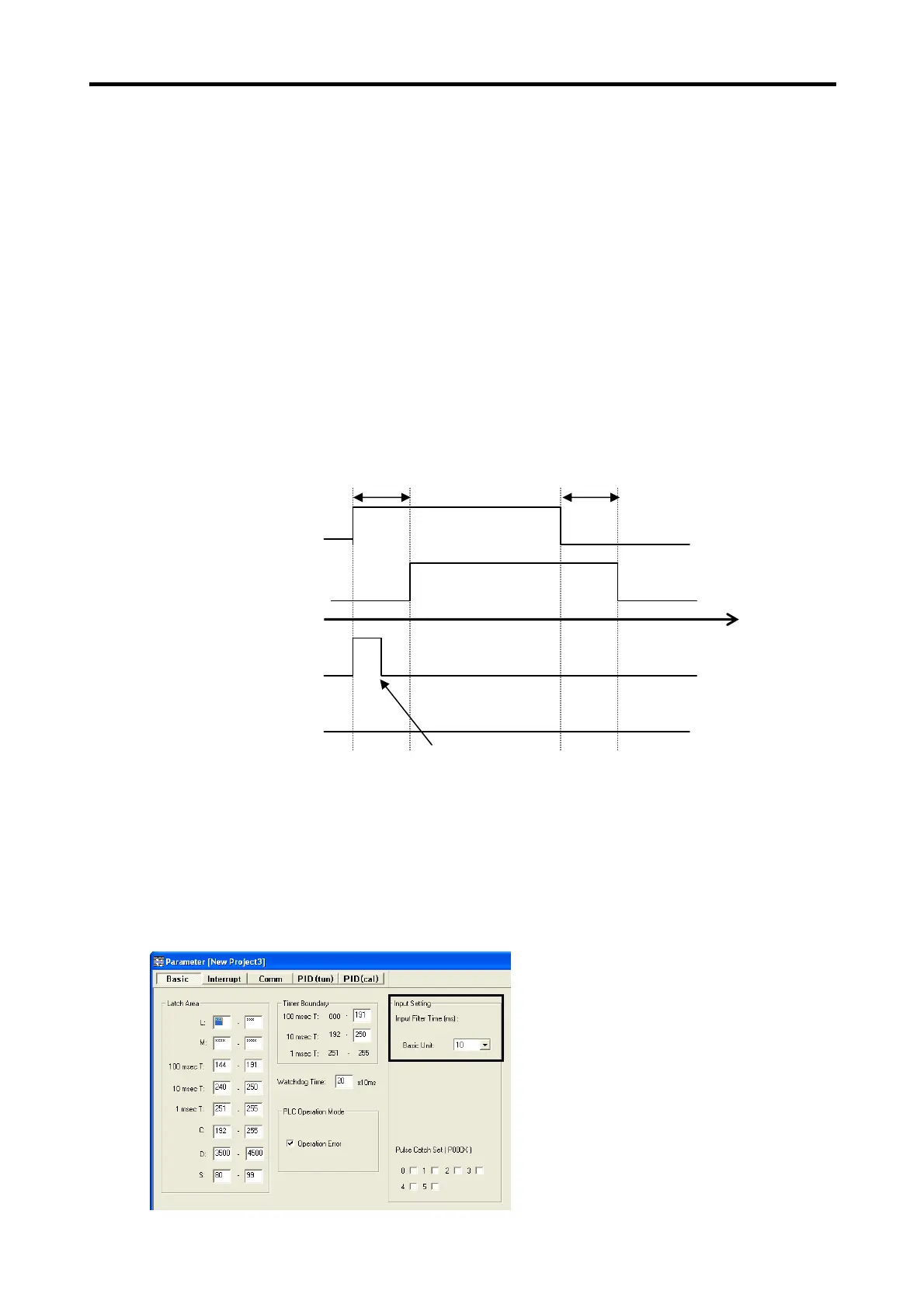

6.1.2 Input Filter function
External input of PLC option card selects Input Filter Time from the range of 0-1000ms of
KGLWIN. Credibility secured system may be established by adjustment of input correction no.
through using environment
1) Usage
Input signal status affects the credibility of system in where noise occurs frequently or
pulse width of input signal affects as a crucial factor. In this case, the user sets up the
proper input on/off delay time, then the trouble by miss operation of input signal may be
prevented because the signal which is shorter than set up value is not adopted.
2) Operation
The narrower width pulse than input filter time is not considered as input signal
3) Using method
(1) Click twice the basic parameter on the project window of KGLWIN.
(2) The value of filter can be set up as one of 1ms unit to the Input Filter Time of the
basic parameter window. (Input Filter Time is set up as default value of 10ms)
(3) Set up Input Filter Time is conformed to all input.
Input Image Data
Input Signal
Input Image Data
Input Signal
Input Filter Time
Time
