Chapter 7 Exclusive Functions for iS7 Inverter Control/Monitoring
7.1 Outline and Installation

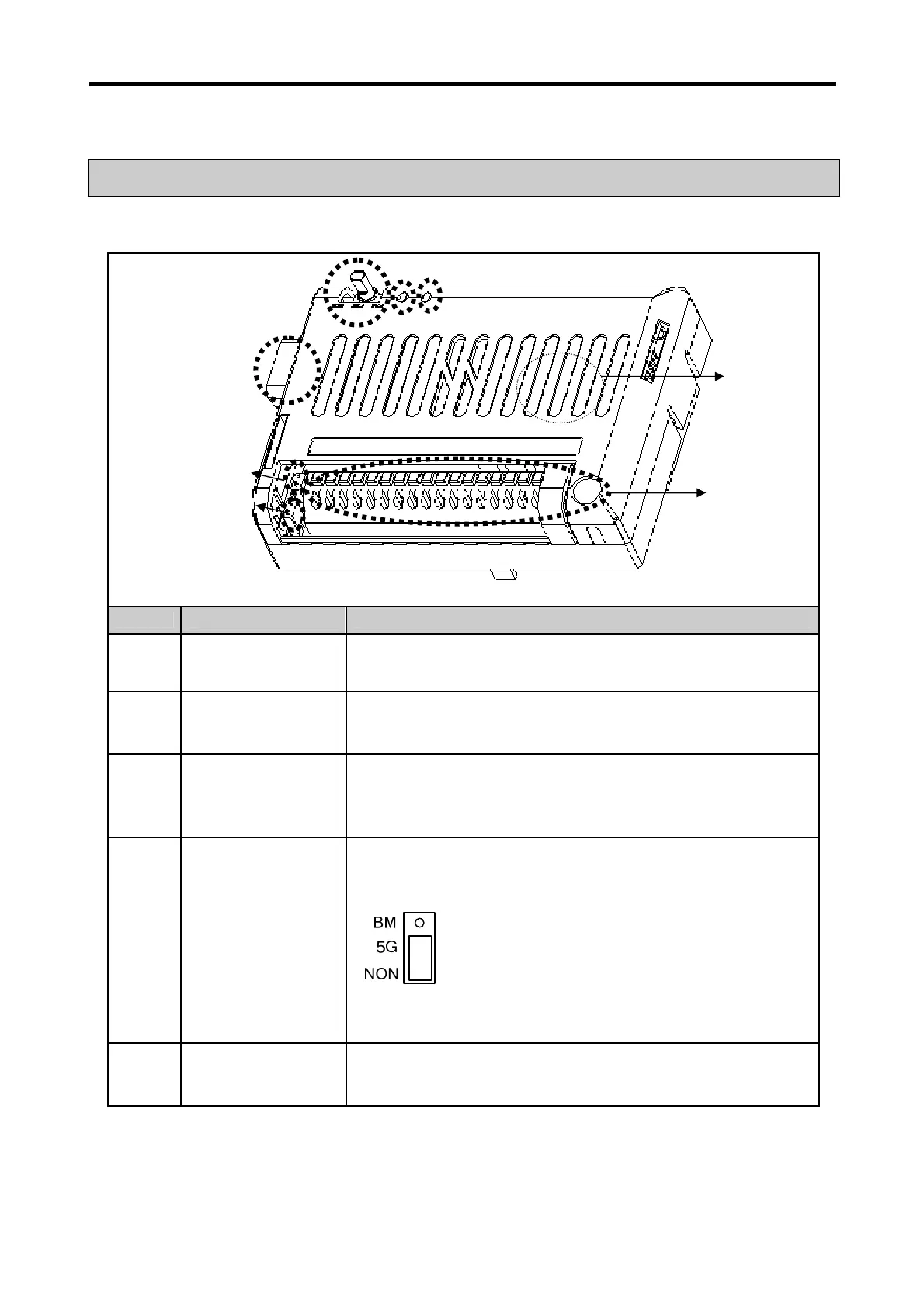

7.1.1 Outline and Major Components of the Product
Symbol Name Description
LED1
RUN LED
ON state: local run (SW1 is at RUN position) or remote run (SW1
is at PAU/REM position, and RUN icon is selected in KGLWIN)
LED2
ERR LED
1) Blink: flickers in error condition.
2) OFF: in normal condition for operation.
SW1
Mode Selection
Switch
1) RUN position: program running
2) PAU/REM position: pause, executing remote run/stop, etc.
3) STOP position: program stopped
J1
PLC OS Download
Jumper
1) The default jumper at product delivery. Only manufacturer’s A/S
personnel are allowed to change the default setting. Keep the
setting as shown below.
J2
Terminal Selection
Jumper
1) ON: select RS485 communication terminal resistance (internal
120ohm resistor).
2) OFF: do not select RS485 communication terminal resistance.
SW1
Battery
Housing
LED1, LED2
CON1
T/B 1
J3
J2
Normal
Mode
