Chapter 2 System Configuration
2-４

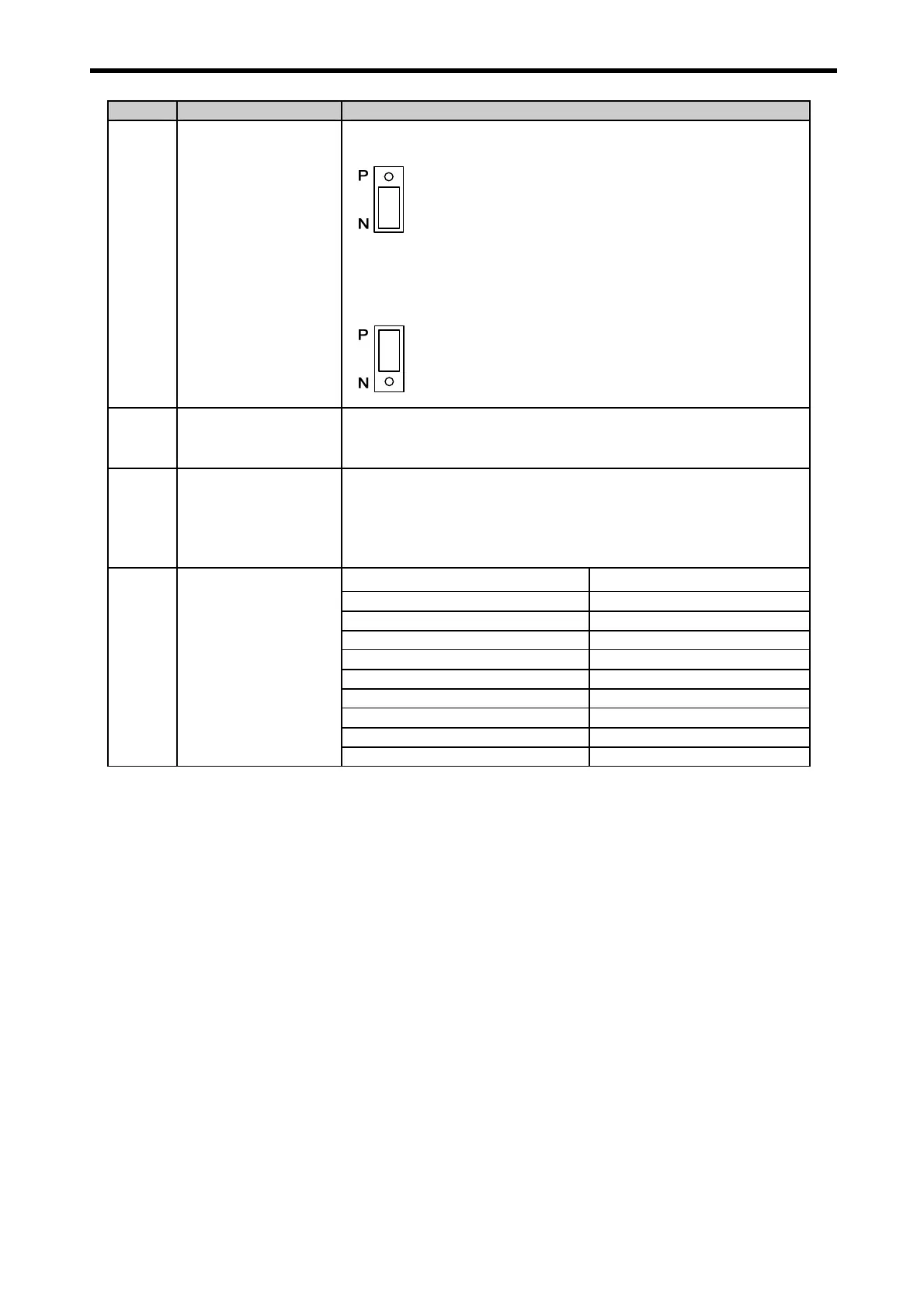

Symbol
Name Usage
J3
NPN/PNP
Selection jumper
1) NPN mode: Connect terminal input (P00~P05) with 24G.
2) PNP mode: Connect the terminal input (P00~P05) with
24P.
CON1
RS232C
communication
connector
Connector to communicate with KGLWIN
Battery
Battery Insertion
part
1) Function : Maintaining of the Latch area data and RTC
data at power failure
2) Battery type: Coin type lithium battery (CR2032)
3) Life : about 4 years with power off (normal temperature,
capacity 220mAh assumed)
1: S+(RS485) 2: S-(RS485)
3: 24G 4: Terminal InputP00
5: Terminal InputP01 6: Terminal InputP02
7: Terminal InputP03 8: Terminal InputP04
9: Terminal InputP05 10: 24G
11: 24P (output 24V) -
12: Terminal Output P40 13: Terminal Output P40C
14: Terminal Output P41 15: Terminal Output P41C
16: Terminal Output P42 17: Terminal Output P42C
TB1
Terminal Blcok
18: Terminal Output P43 19: Terminal Output P43C
NPN mode
PNP mode
