Chapter 5 Input and Output Function
5-3
This product provides the six terminal inputs P00~P05 of external terminal block (TB1).

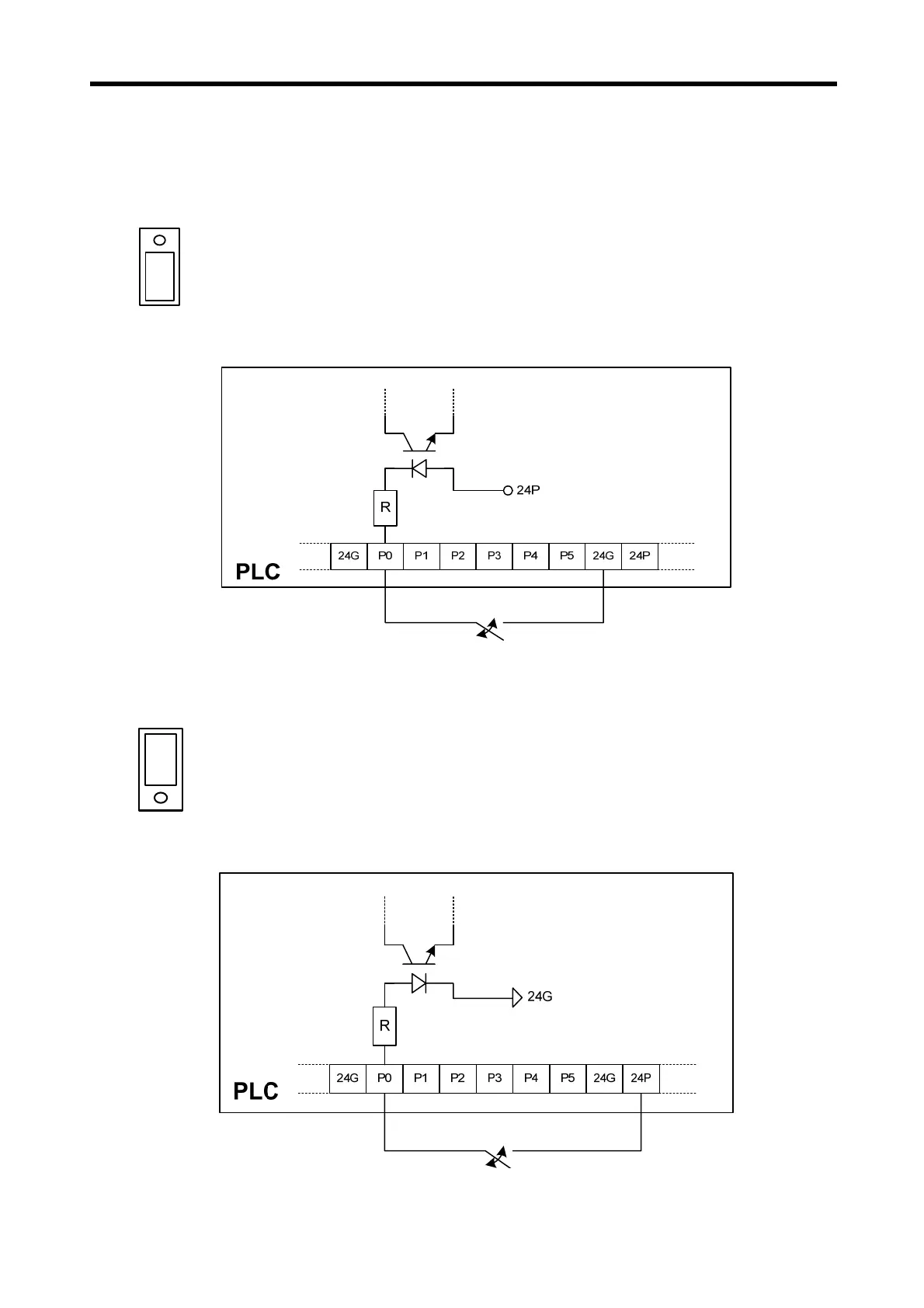

◆ NPN mode
1) Set the J3 (NPN/PNP selection jumper) as below figure.
2) Wire the external terminal bock (TB1) as below figure. P0 wiring is a sample wiring. Please do wire
P1~P5 terminal as same method.
◆ PNP mode
1) Set the J3 (NPN/PNP selection jumper) as below figure.
2) Wire the external terminal bock (TB1) as below figure. This products can output the 24V as below
figure. P0 terminal is wired with 24 V output. Please do wire P1~P5 terminal as same method
Terminal input is
operated to NPN type.
External Switch
Terminal input is
operated to PNP type.
External Switch
