BACKHOE INSTALLATION

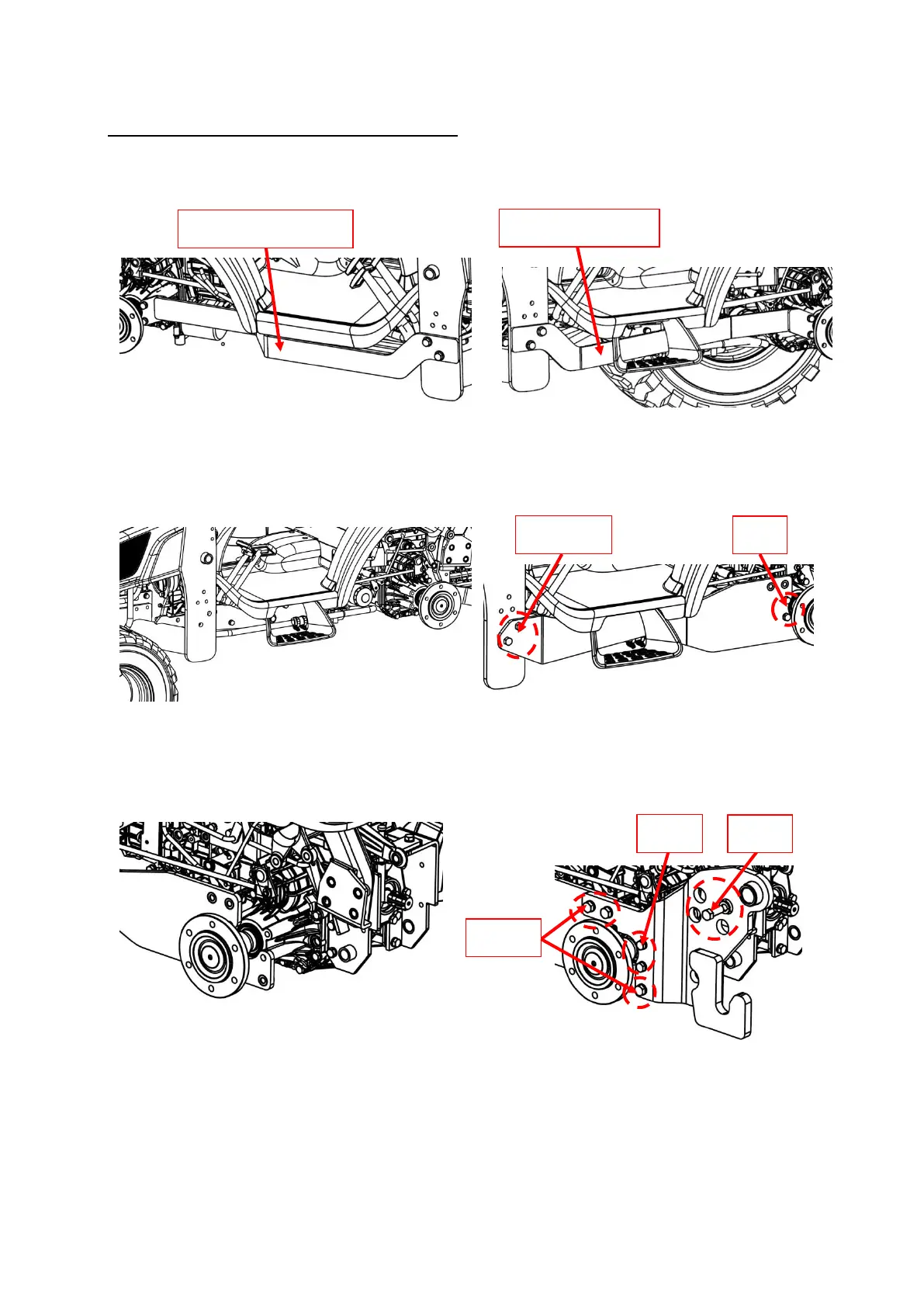

1. Uninstall the left-hand & right-hand Back axle for loader mount on the tractor frame.
2. Install the left-hand Rear plate CP LH mount on the left-hand tractor frame & loader frame, secure with M12x40L
bolts(8), M12 spring washers(9) - (Torque to 94N.m(70lb ft)), M16x50L bolts(5), M16 spring washers(6), M16 plain
washers(14), M16L nuts(7). - (Torque to 234N.m(173lb ft)).
3. Install the left-hand Frame CP LH mount on the left-hand tractor frame, secure with M12x55L bolts(10), M12
spring washers(9) - (Torque to 94N.m(70lb ft)), M14x55L bolts(11), M14 spring washers(12) - (Torque to
151N.m(111lb ft)), M16x40L bolts(13), M16 spring washers(6). - (Torque to 234N.m(173lb ft)).
right-hand Back axle
left-hand Back axle
5, 6, 7, 14
8, 9
11, 12
13, 6
10, 9
