TRACTOR HYDRAULIC KIT MOUNTING

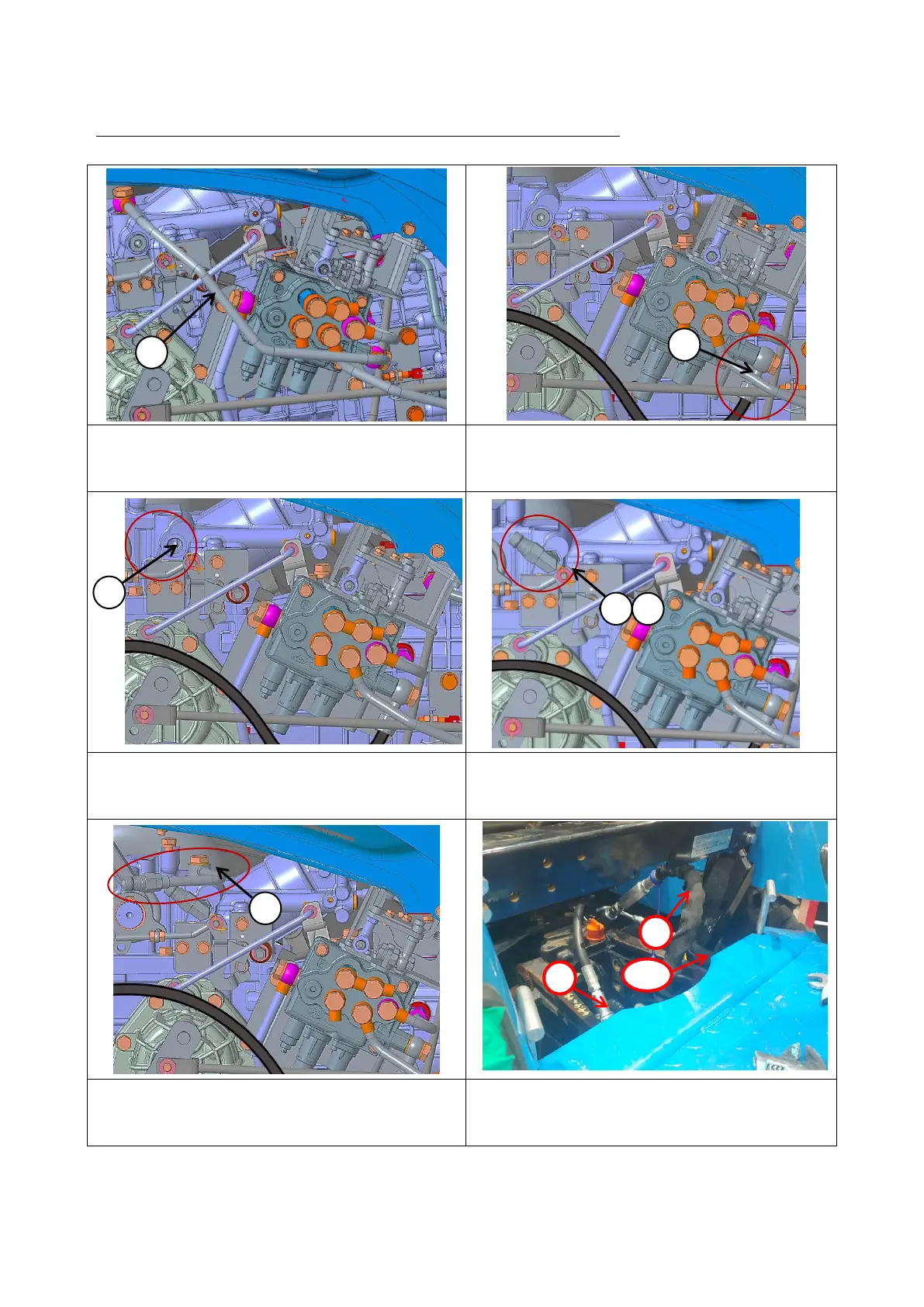

1. Remove the pipe. (1)
2. Assemble the banjo hose (2) – 40427980
(P – Line)
3. Remove the plug (3)
4. Assemble the O-ring nipple (4) – 40426819
Assemble the swivel elbow nipple (5) – 40417721
by 45 degrees (T – Line)
5. Assemble the banjo adapter (6) – 40426819
by crossing it with the swivel elbow nipple (5) –
40417721 (P/B – Line)
6. Connect the P(red), P/B(yellow), T(black) hose.
1
2
3
4
2. Assemble the banjo hose (2) – 40427980
(P – Line)
5
6
P
P/B
T
