20

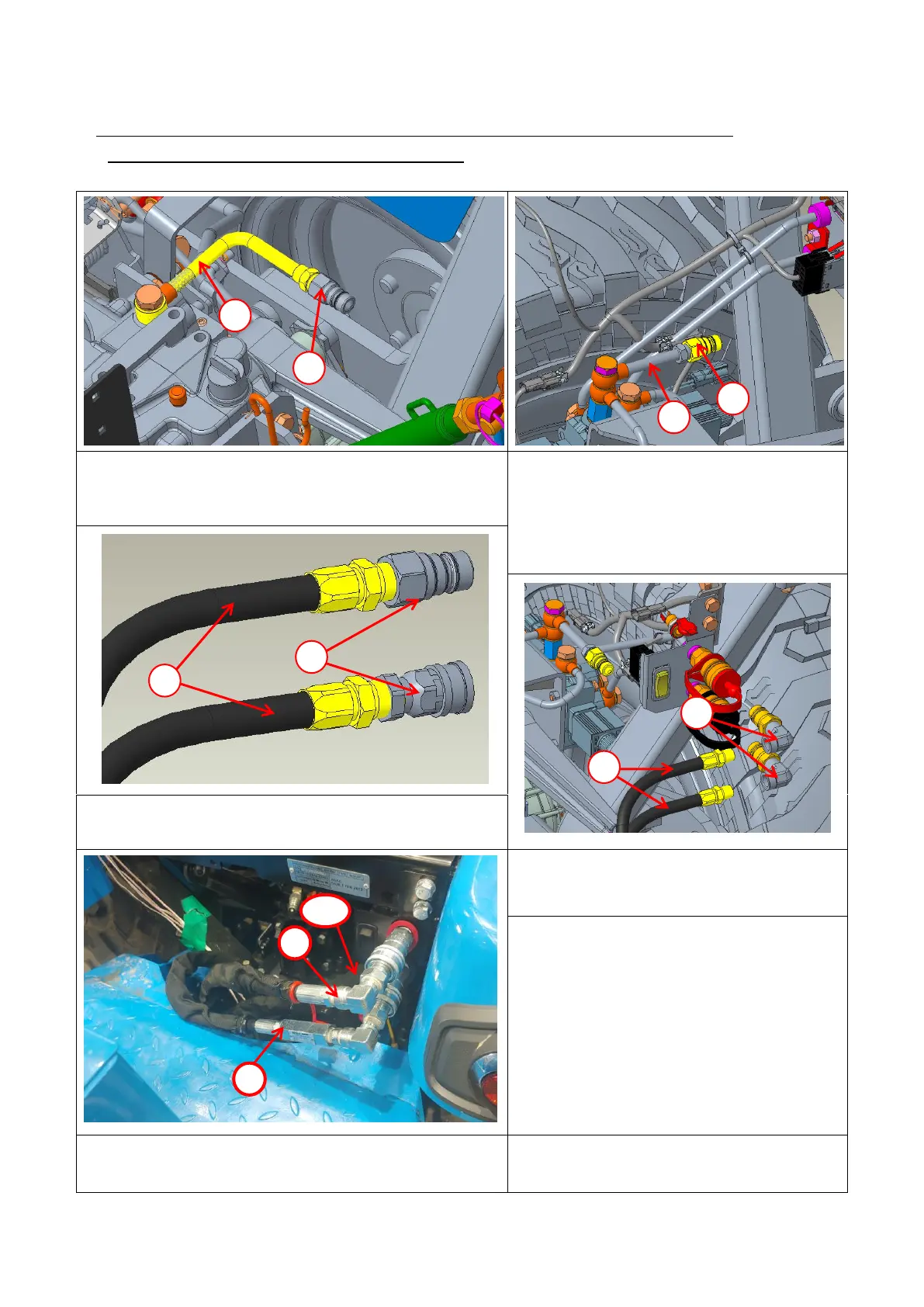

TRACTOR HYDRAULIC KIT MOUNTING (option)
(for Remote ctrl Valve Kit)
1. Disassemble the pipe(2) and yellow cap and separate
the quick coupler(1) and yellow cap from the pipe(2).
No pipe(2) is used
2. Wrap the sealing tape on the pipe(1) and
assemble the Quick coupler(2) and yellow
cap to the pipe(1) supplied by the remote
control valve kit.
3. Remove the Q-coupler(1) on hose(2).
4. Assemble the hose(1) to the elbow
nipple(2) supplied by the remote ctrl valve
kit.
5. Connect the P(red), P/B(yellow), T(black) hose.
1
2
2
1
1
P
P/B
T
2
1
2
