LS tractor LB1300 - IMBH20. MAIN FRAME GROUP

42

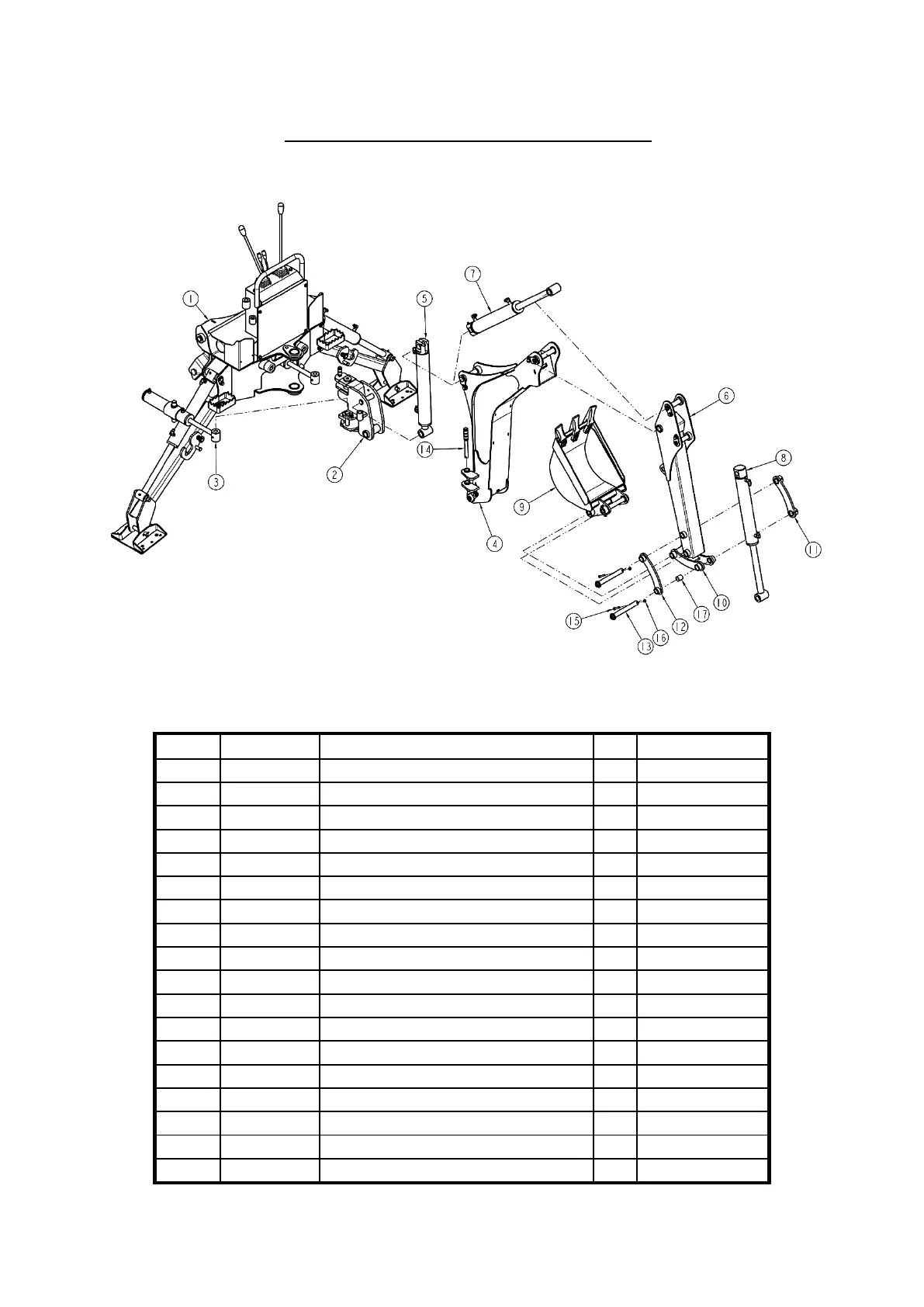

IMBH20. MAIN FRAME GROUP
No.
LS PART NO.
DESCRIPTION
QTY
REMARKS
1-17
-
MAIN ASSEMBLY
1
1
-
MAIN FRAME
1
2
-
SWING-FRAME ASSY
1
3
40427920
SWING CYLINDER, Ø60xØ25x175LxST220
2
4
-
BOOM-LOWER ASSY
1
5
40427932
BOOM CYLINDER, Ø65xØ35x605LxST375
1
6
-
BOOM-HIGH ASSY
1
7
40427946
DIPPER CYLINDER, Ø65xØ35x595LxST330
1
8
40427949
BUCKET CYLINDER, Ø60xØ35x514LxST310
1
9
-
BUCKET ASSEMBLY, 12"STD
1
10
40427956
ROD-BUCKET
1
11
40427957
LINK LH
1
12
40427958
LINK RH
1
13
40427959
PIN
2
14
40427960
PIN, Ø25x206L
1
15
40426912
BOLT, M8x50L
2
16
40426911
LOCK NUT, M8
2
17
40427945
DU BUSH, Ø25xØ28x30L
4
