HOW TO USE REVERSIBLE SEAT
● Before operating the tractor, adjust the position of
driver’s seat accordingly for operator.
● F/R adjustment lever ①
1) After sitting on driver’s seat, Lift the F/R adjustment
lever up to unlock.
2) Slide the driver’s seat forward or backward
depending on driver’s desired position.
3) Release the seat F/R adjustment lever and check to
see if the seat is locked into position.
● Seat reverse lever ②
- Follow the instruction when Changing the reversible
seat direction.
● Seat fixing pin
- It must be used to lock the seat linkage frame in
backward seat direction.
Avoid injury !
▶Handle all parts carefully. Do not place your hands and fingers between seat
bracket linkage.
▶Use personal protective equipment including protective gloves and safety footwear.
▶Failure to comply could result in serious injury.

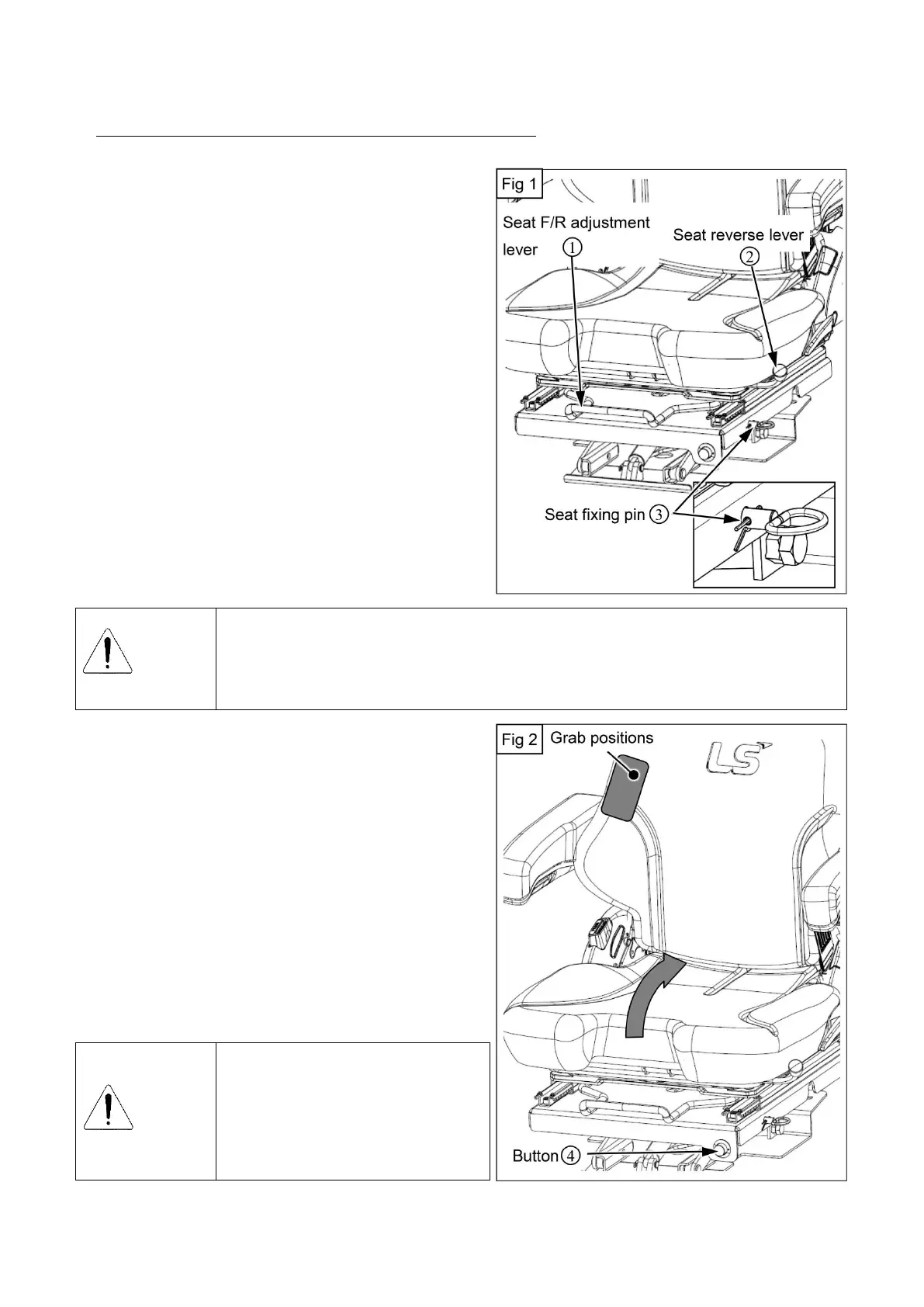

1) Move the driver’s seat to the center of full stroke
sliding with lifting the seat F/R adjustment lever [Fig 1].
2) Lose the fixing pin as shown [Fig 1].
3) Keep the seat back cushion straight up and Press
and hold the button and lift up the driver’s seat with
other hand.
Avoid injury !
▶This function is for Backhoe work
▶ DO NOT drive or work with
lifted seat position.
