BACKHOE INSTALLATION
◈ Position the tractor on a hard level surface.
Caution : Lift and support all loader components safely.

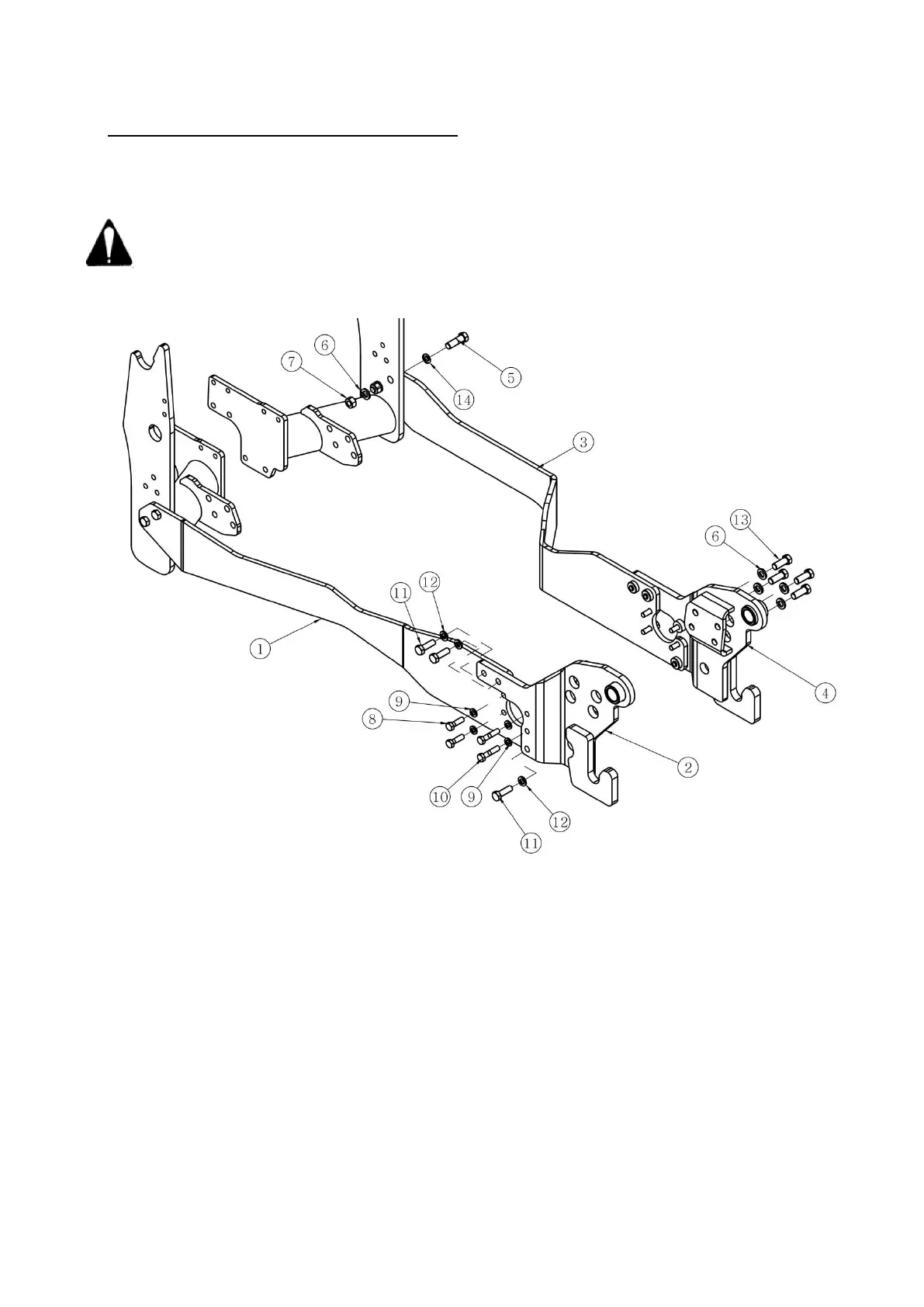

(1) REAR PLATE CP. LH – 1EA
(2) FRAME CP-LH – 1EA
(3) REAR PLATE CP. LH – 1EA
(4) FRAME CP-RH – 1EA
(5) BOLT, M16x50L – 4EA
(6) SPRLNG WASHER, M16 – 12EA
(7) NUT, M16 – 4EA
(8) BOLT, M12x40L – 4EA
(9) SPRLNG WASHER, M12 – 8EA
(10) BOLT, M12x55L – 4EA
(11) BOLT, M14x45L – 6EA
(12) SPRLNG WASHER, M14 – 6EA
(13) BOLT, M16x40L – 8EA
(14) PLAIN WASHER, M16 – 4EA
