SERVICE MANUAL(COMPONENTS)
Bucket

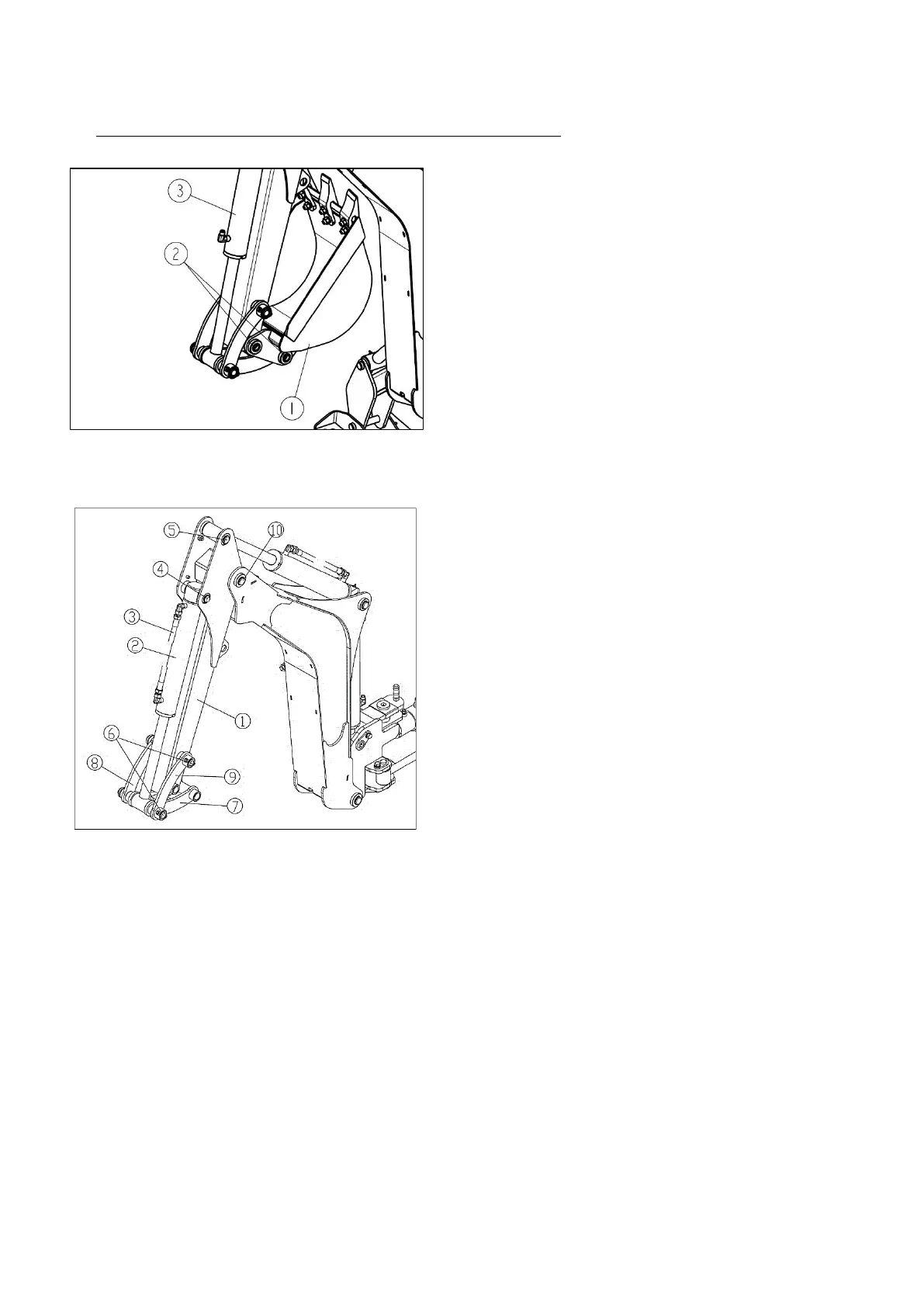

1. Remove the bucket pins (2) and remove the bucket.
(1) Bucket
(2) Bucket pin
(3) Dipper stick
Dipper stick and bucket cylinder
1. Remove the pins (5,6) and remove
the rod–bucket and link-LH,RH.
2. Disconnect the hydraulic hoses (3) and
remove the pin (4) and remove the bucket cylinder (2).
3. Remove the pin (10) and remove the Dipperstick (1).
(1) Dipper stick
(6) Pin (Ø25x214L)
(2) Bucket cylinder
(7) ROD - bucket
(3) Hydraulic hose
(8) Link - LH
(4) Pin (Ø25x128L)
(9) Link - RH
(5) Pin (Ø28x125L)
(10) Pin (Ø28x183L)
