DISASSEMBLING AND ASSEMBLING

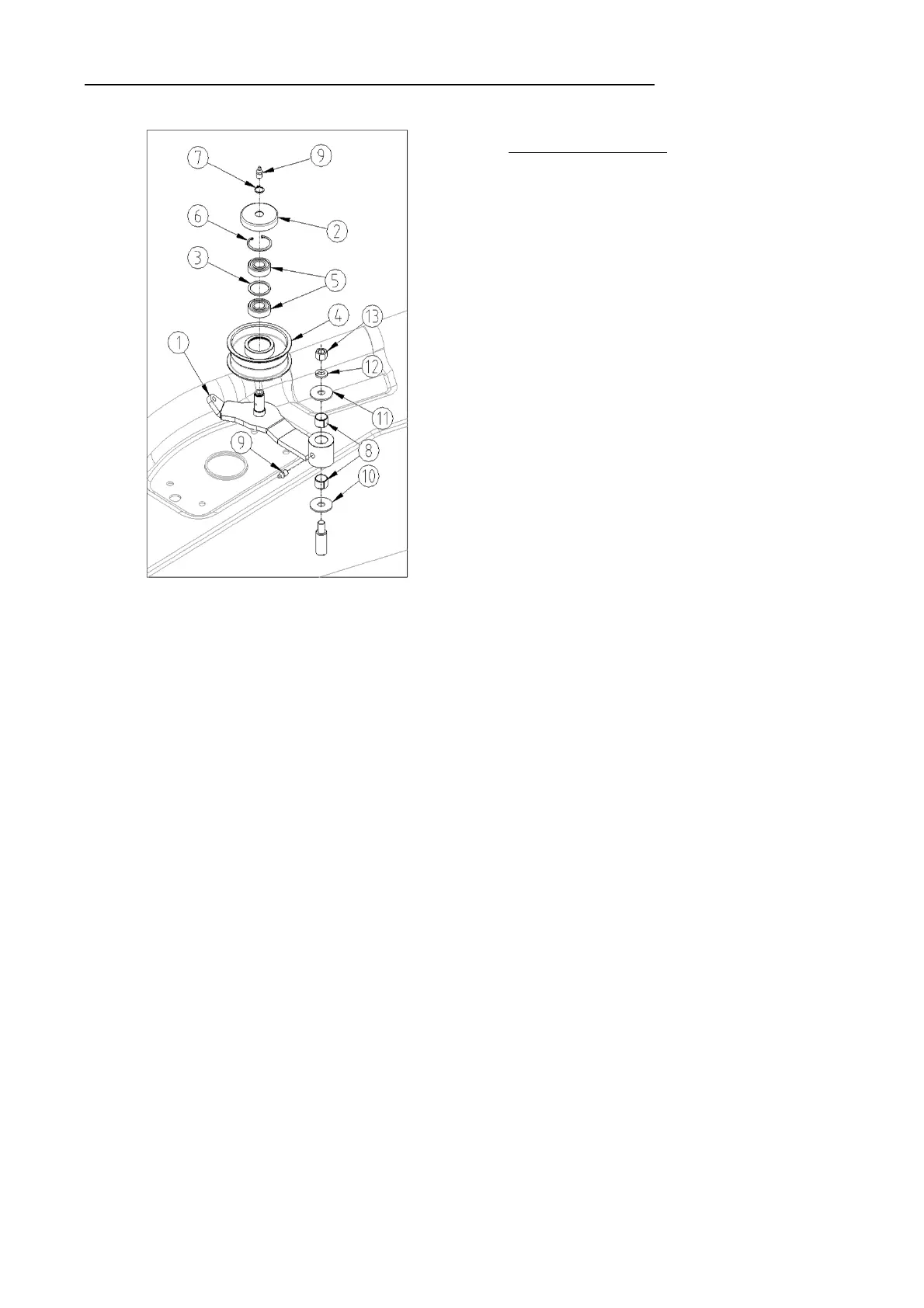

Tensioner Iddle Pulley
(1) Tensioner WA (2) Cap
(3) Spacer (4) Iddle Pulley
(5) Ball Bearing (6) Snap Ring
(7) Snap Ring (8) DU-Bush
(9) Grease Fitting (10) Washer-Plain
(11) Washer-Plain (12) Washer-Spring
(13) Tensioner Mounting Nut
2. Tap out the iddle pulley(4)
3. Remove the snap ring(6), and remove the
ball bearing(5) and spacer(3).
1. Remove the snap ring(7), and cap(2).
