4 -17

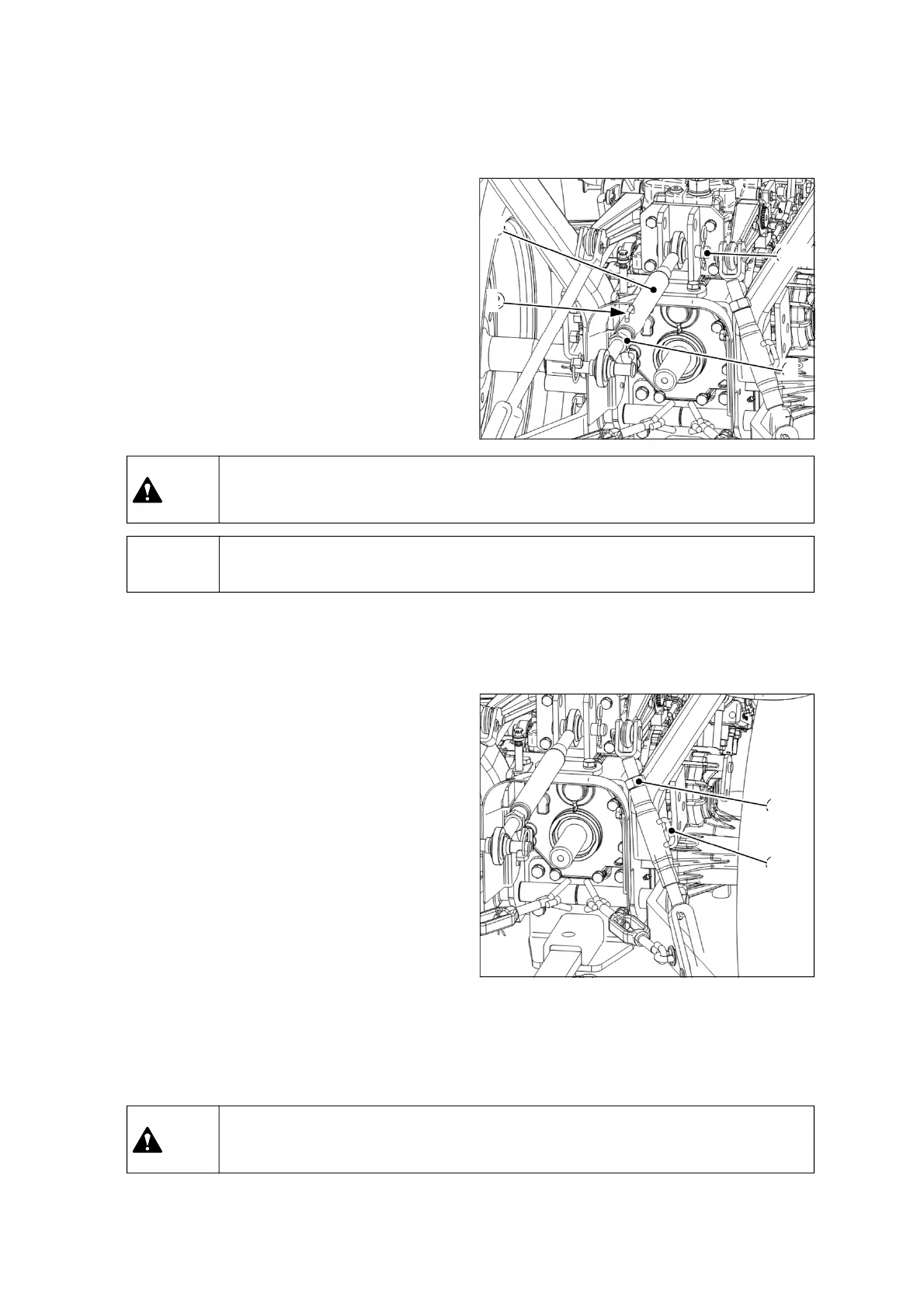

 Adjust the length of the upper link① depending
on the implements.
 To adjust the length of the upper link, loosen the
lock nut③ and turn the grip② left or right.
 Fasten the lock nut③ after adjusting the length.
 Adjustment range: 400~750mm (15.7~29.5 in.)
▶ Insert the snap-pin⑤ firmly to prevent the upper link pin④ from being escaped.
Notice
② Adjustment of the lift rod’s length
 The Lift rod (RH) can be adjusted by loosening
the lock-nut②, and turning the grip①.
 After adjusting the length, tighten the lock-nut②
again.
 Adjustment range: 348~461mm (13.7~18.1 in.)
②
①
④⑤
③
① Upper link installation and adjustment
▶ Do not adjust the length of the lift-rod over the maximum limit. It may cause fatal
injury or death by falling object.
Caution
▶ Do not adjust the length of the upper link over the maximum limit. It may cause
fatal injury or death by falling object.
Caution
①
②
