LS tractor MT2 Series User Manual

4 -18

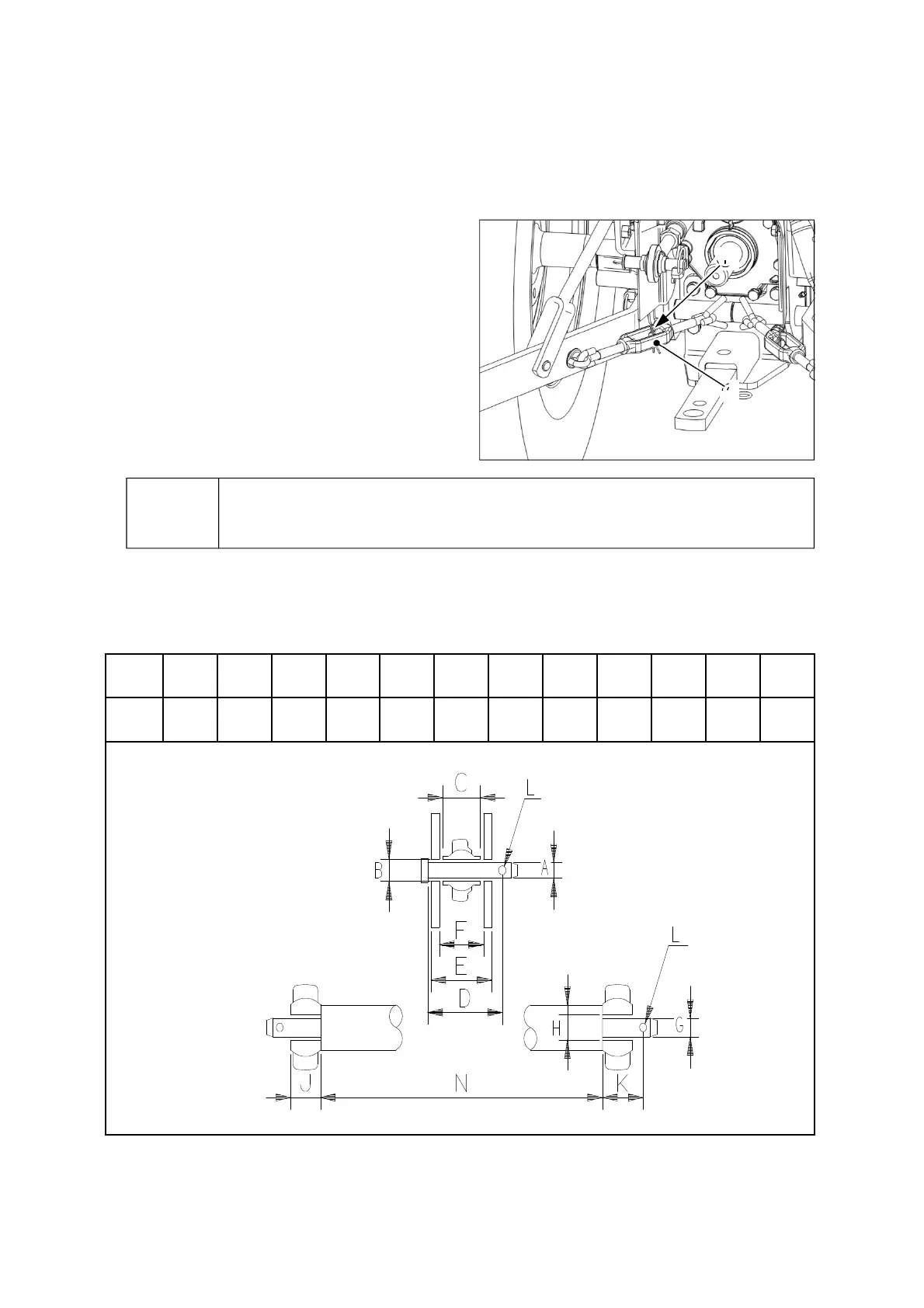

④ Reference of Implement installation part
AB
C
(MAX)
D
(MIN)
E
(MAX)
F
(MIN)
GHJKLN
CAT1
19
(0.74)
19.3
(0.75)
44
(1.73)
76
(2.99)
69
(2.71)
44.5
(1.75)
22
(0.86)
22.4
(0.88)
35
(1.38)
39
(1.53)
12
(0.47)
683
(26.8)
Unit : mm(inch)
▶When adjusting the stabilizer’s length, set the implement’s lateral swinging
clearance to be 20~40mm. (0.8~1.6 in.)
Notice
③ Adjustment of stabilizer’s length
 The length of the stabilizer can be adjusted by
turning the handle② , after removing the snap
pin①.
 After adjusting the length, insert the snap pin①
again.
①
②
