4 -19

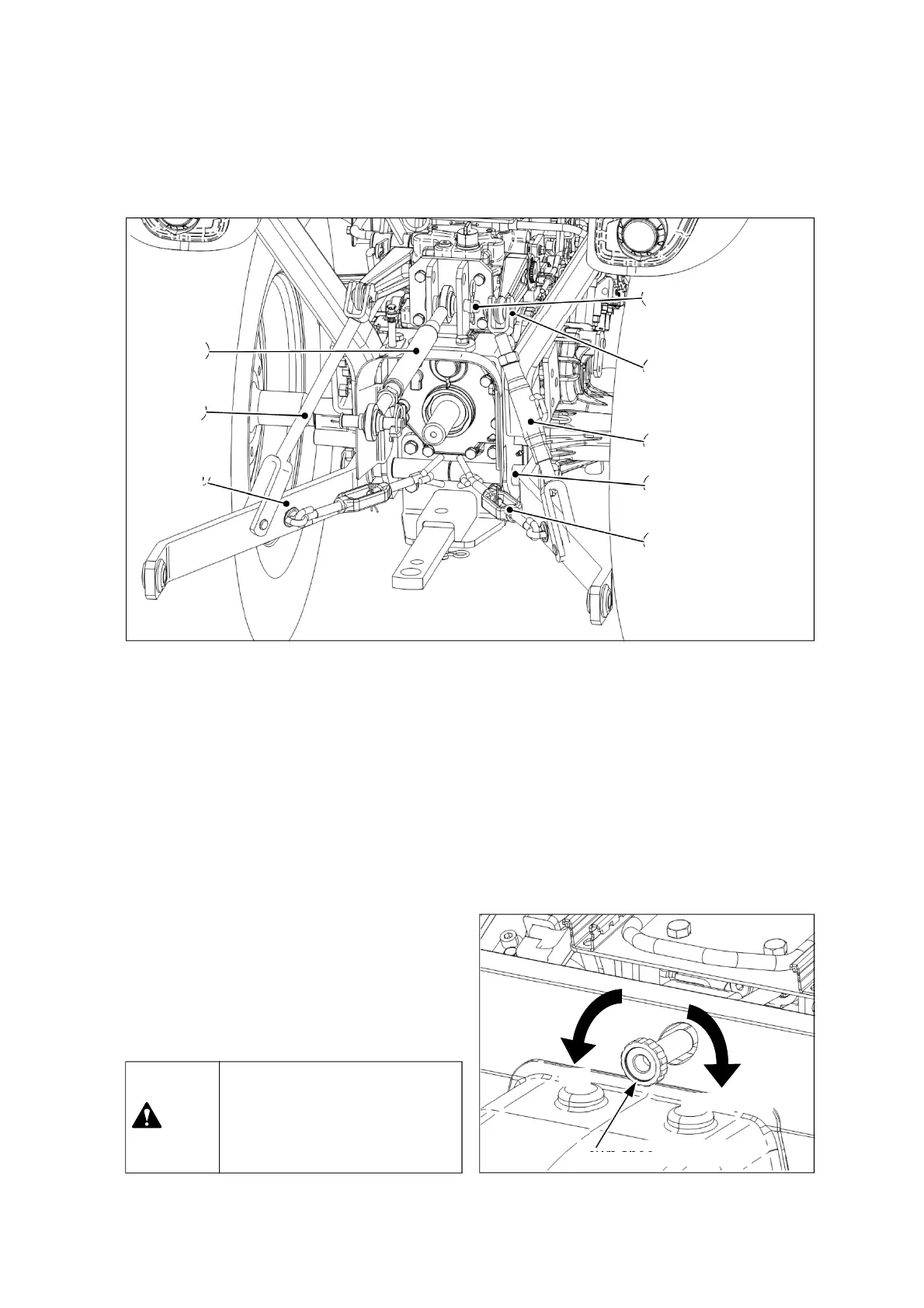

⑤ Handling of the 3-point linkage
When driving the tractor without attached implement, comply with the followings.
1. Fix upper link ⑤ into the fixing hook installed in front of the upper link.
2. Connect stabilizer ② to the lower link ③ to avoid lateral movement of the lower link.
If the 3-point linkage is not necessary, remove it as follow.
1. Remove upper link pin ⑧, and detach the upper link ⑤.
2. Detach fixing parts between lift rod ①,④ and lower link ③ while holding the lower link tightly.
And, put down the lower link.
3. Remove the lift rod pins ⑥ and detach the lift rod (LH) and lift rod (RH).
4. Detach the lower link ③ and stabilizer ② after removing the lower link pin ⑦.
When using hitch/drawbar, or driving on road, lift
up the 3-point linkage and fix it by turning the
down speed control knob to the locking position.
▶ The parts of 3-point linkage are
very heavy. When handling
them, take care not to get injury.
PLEASE BE CAREFULL !
Caution
①
④
③
⑤
②
⑥
⑦
⑧
① Lift rod (LH)
② Stabilizer
③ Lower link
④ Lift rod (RH)
⑤ Upper link
⑥ Lift rod pin
⑦ Lower link pin
⑧ Upper link pin
Fast
Slow & Lock
Down speed control knob
