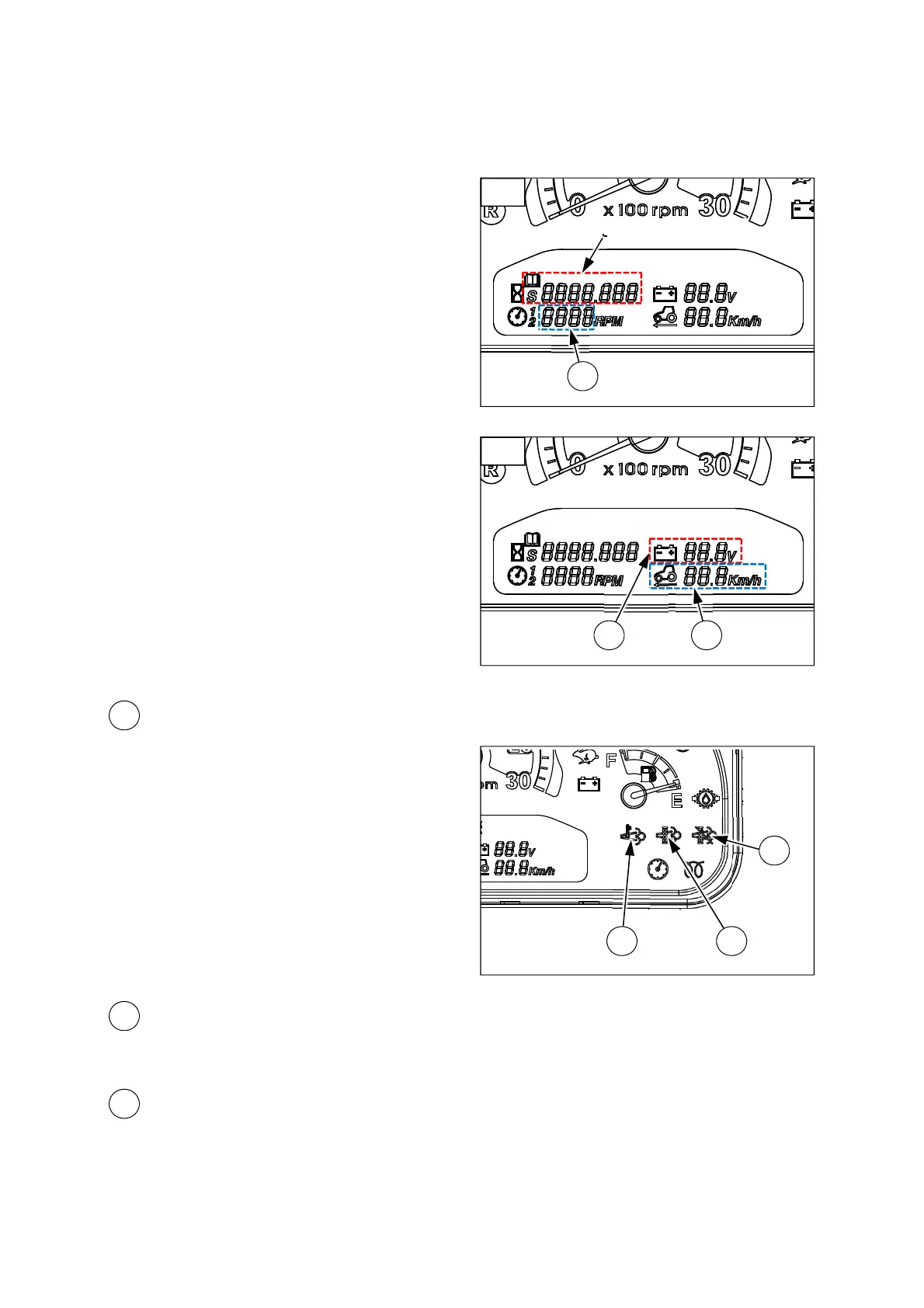

DPF Regeneration indicator
12
DPF inhibited regeneration indicator
 When the DPF switch is pressed to Inhibited regeneration mode, this indicator will be turned on
and the regeneration of the DPF will be stopped.
 When the regeneration process in the DPF is
working, this indicator will be turned on with
continuous light. It is not a failure but normal
operation.
 If this indicator is blinking, it means that the
soot is over accumulated in the DPF. Comply
with the instructions of the chapter 3-1-(8),
“DPF switch” in this manual.
 For further information about this indicator, see
page 3-16 in this manual.
13
DPF temperature indicator
 When the regeneration process in the DPF is working and the DPF temperature is over the
designated temperature, this indicator will be turned on with continuous light.
c. Speedometer (Not used)
b. FMI code
d
Fig.4
c
Fig.3
b
Diagnosis error code
 If any of errors related to the engine control
occurs, the FMI code to be able to know the
error type or pattern will be displayed by turns
additionally with the engine diagnosis error
codes as shown [Fig.3].
 If any of errors related to the engine control
occurs, the FMI code to be able to know the
error type or pattern will be displayed by turns
additionally with the engine diagnosis error
codes as shown [Fig.3].
 This indicator is not used in this model.
d. Battery voltage
 Available current battery voltage is displayed.
