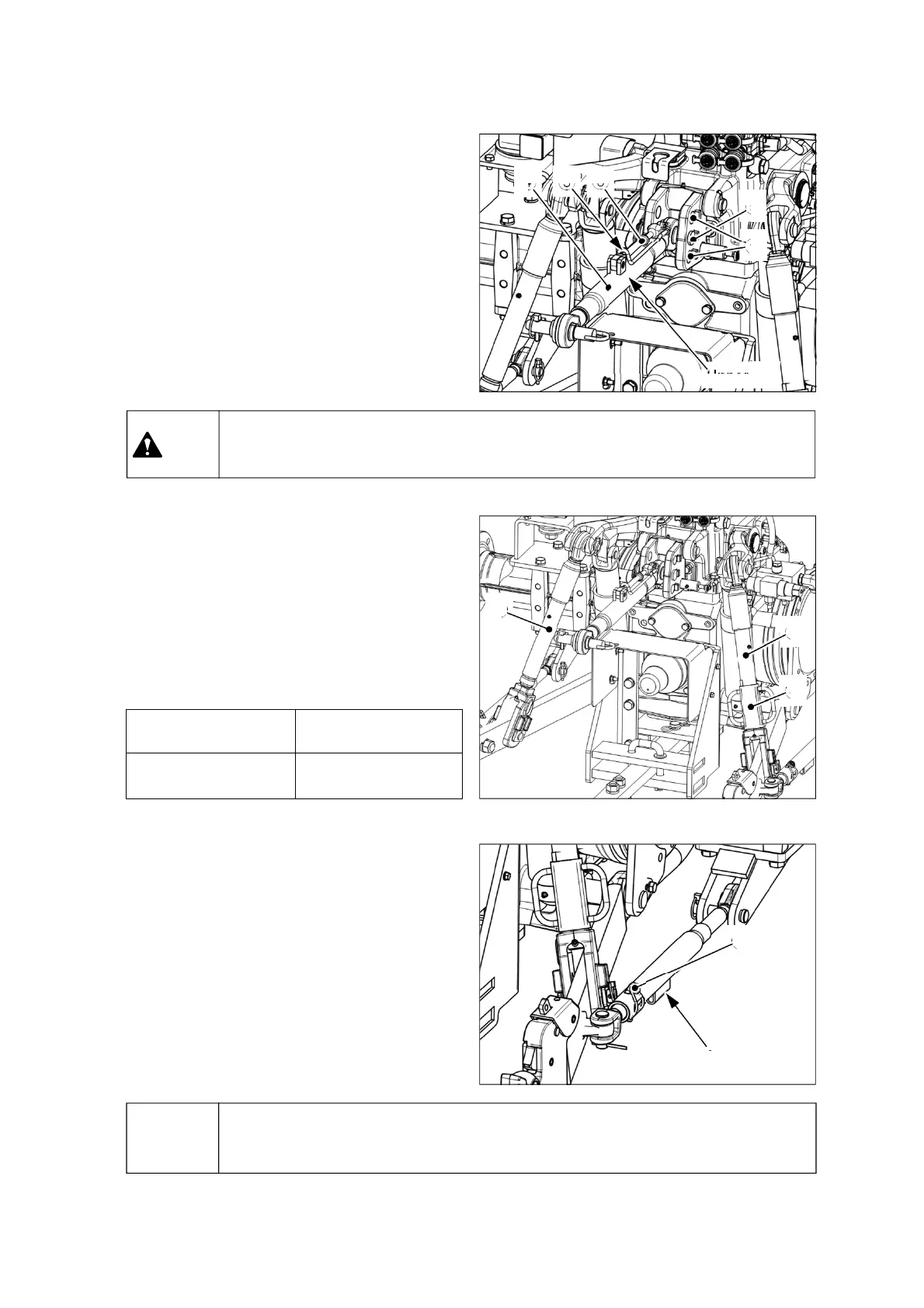

LS tractor MT573 - Upper Link Installation and Adjustment; Lift-Rod Adjustment (LH;RH); Stabilizer Adjustment (Optional)

4 -18
Lift rod (LH) Lift rod (RH)
521~635 mm
( 20.5 ~ 25.0 in. )
495~635 mm
( 19.5 ~ 25.0 in.)
① Upper link installation and
adjustment
 Select a suitable attaching hole(2) depending on
the implement.
 To adjust the length of the upper link, release the
locking spring(3) and turn the sleeve(4) with
handle(6).
 Fix the handle(6) with locking spring(3) after
adjusting.
 Adjustment range : 550~855mm (21.7~33.7 in)
② Adjustment of lift-rod (LH/RH)
 For lift-rod (LH), remove the upper lift-rod pin
and turn the upper part of the lift rod.
 For lift-rod (RH),
- Lift up the handle(4) and turn it to the left or
right to adjust the length.
- Lock the lift rod handle to the lower part after
adjusting.
⑥
④
②
⑤
③
Upper link
④
③
①
▶When adjusting the stabilizer’s length, set the implement’s lateral swinging
clearance to be 20~40mm. (0.8~1.6 in.)
Notice
①
Stabilizer
③ Adjustment of stabilizer (optional)
- Check link type
 Pull up the link pin(1) and turn the grip of the
stabilizer clockwise/counter-clockwise.
 Insert the link pin(1) into the hole and let it
tightened firmly by locking spring.
▶ Do not adjust the length of the upper link or lift-rod over the maximum limit. It may
cause fatal injury or death by falling object.
Caution
